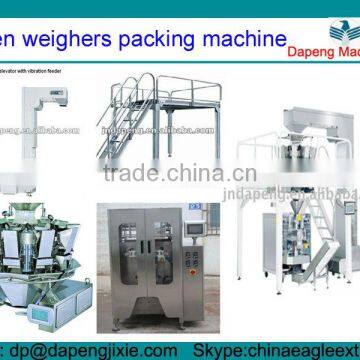

Ten heads weighers packing machine/automatic packing machine/vertical packing machine

Specifications

HS-520A packing machine with 10/14 heads weigher

The unit included six parts

a)HS-520 large vertical packing machine

b)10 heads combination weigher

c)Z type bucket elevator

d)Vibration feeder

e)Supporting platform

f)Product conveyor

1.The scope of packaging

 It's suitable to use in packing the high accuracy and easy fragile material , such as : puffy food , crispy rice , Potato Chips , Snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc .

2.The major performance and structural feature

 PLC computer control system.PLC from Janpan or Germany.

 Big touch From Tai wan . Easy to operate and control the machine.

 High precise positioning with servo film transporting systerm .Servo motor from Germany Seimens to ensure stable.

 Warn protection function.

The machine will automatically complete all packaging processes from measuring, feeding, filling, Printing ,finished bag .

The way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements.

Punching hole bag & connect 5-12bags and so on .

3.The major performance and structural feature

PLC control with touch panel-step by step instruction.

Equipped with servo winding system,pneumatic control system.

The maximize to improve the whole machine precision, reliability and stability.

Use intellectual temperature controller,the high temperature control to ensure neat sealing.

The perfect automatic alarm safety protection,little waste.the machine will automatically complete All packaging processes from feeding, measuring, filling, Printing ,finished bag

4.The main components of packing machine:

5.Optional

Gusset bag making device

Hole punching

Linked bag devic

6.Other modles

Client can choose different modles such as  HS-320, HS-420, HS-520. HS-720 depend on bag sizes, the weight device can choose 10 heads weigher or 14 heads weigher.

7.Specification

8.Z type material conveyer Includes Vibration feeder

It's suitable use in delivery the grain, food, food stuff etc.

Lifting height: 3.3-10m (according to customer’s requires)

It can be made both stainless steel and plastic painted .The contact parts of food grade plastic.

9.Product conveyor

send the finished bag to Rotary Collecting table

Q1: If we buy machines, what is the after-sale service?

Jinan Eagle Food machinery manufacture will send the engineer to buyer’s factory. Offer the trainee program, start the related food production as customer request.

Q2: If machines wearable parts need to change, what should we do?

Jinan Eagle Food machinery manufacture will offer the wearable parts all the time. And offer the on-line video instruction for the operation.

Q3: What is the payment terms if we want to buy the machines?

Usually it is 30% by T/T, pay the balance by T/T before delivery or L/C at sight.
