potato chips fryer machine/continous belt fryer/gas chips fryer/automatic chip fryer

Specifications

Electric chips fryer

1.Description

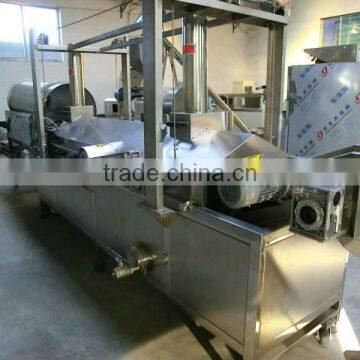

(1).Automatic tunnel fryer consists of net belt conveying system, automatic elevating system, automatic filtrating system, oil temperature controlling system, oil adding system and heating system.

(2).This continuous deep  Frying machine can fry the snack pellet, potato chips, yams, taros, peanuts, fish, dough snacks, green peas, fava beans, broad beans.

(3).The machine can use heat--conducting oil with high tempreture as heat resource,avoiding the damage to oil by directly heating.Meanwhile ,the energy can be many kinds of fuel such as coal,gas,diesel oil,etc.

(4).its application range is very wide.the oil capacity of the frying machine is low,the oil velocity is high,and the oil is filtered during cycling,and kept clean.It is special frying machine for pulse and nut.

2.Confinguration:

Automatic oil--temperature controlling system

Automatic oil-filling system

Guipure transferring system

Electriction elevating system

Dynamic filtering system

Frying area:3060*750mm

Dimension: 5070*1530*2284mm

De-oiling Machine

· Made by stainless steels

· Centrifugal de-oiling and continuous working

· Incoming stock and unloading device automatically. Frequency conversion trig

· The speed can be adjusted between 300-600 cycle

· The time of de-oiling also can be adjustment and the shortest time is 7 seconds

size-1240*1400*1245mm
weight-200KG
power-2.2KW
output-200-1000KG/H

Flavoring Machine

· Made by stainless steels

· The speed of overturning can be adjusted

· Octagonal flavoring machine is used for beans,cashew nut,peanut ,broad bean.

The maximal handling abilityis about 1000KG/H

3.Technical Parameter

Q1: If we buy machines, what is the after-sale service?

Jinan Eagle Food machinery manufacture will send the engineer to buyer’s factory. Offer the trainee program, start the related food production as customer request.

Q2: If machines wearable parts need to change, what should we do?

Jinan Eagle Food machinery manufacture will offer the wearable parts all the time. And offer the on-line video instruction for the operation.

Q3: What is the payment terms if we want to buy the machines?

Usually it is 30% by T/T, pay the balance by T/T before delivery or L/C at sight
