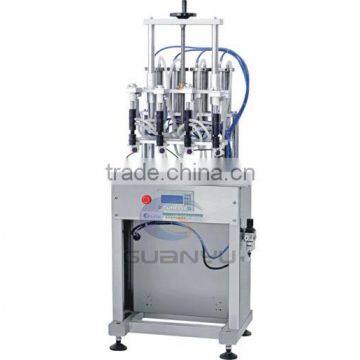

Perfume semi-automatic vacuum filling machine

Perfume semi-automatic Vacuum filling machine

Introduction:

The PER series machines are completely self contained,portable,and require no electricity.These features make them ideal for filling everything form nail enamel containers to perfume containers.Fill level are adjustable and achieve fill consistency regardless of the product.

The PER machines are easy to operate and bottle changes are as easy as sliding new bottles under the fill heads or pushing the foot pedal.In addition to serving as a filler for your more delicate products lines,the PER can also be an inexpensive backup unit,eliminating down time and costly set-ups for small runs.

Working principle:

1.Vacuum filling system draw product into the container by using constant vacuum suction,the constant vacuum is created by a vacuum generator connected to a vacuum chamber and a special filling valve.The filling consists of a filling sleeve.Within the filling sleeve,there is a vacuum tube.The vacuum tube is used to draw the excess product back into the vacuum chamber in order to prevent overfill.The fill level of the container is determined by the depth of the vacuum port within the neck of the container.When the product reaches the vacuum port,the fill is completed.However,the flow will continue through the vacuum tube until the seal on the container is broken or until the vacuum pump.

2.Our PER machines can come equipped with a single or multiple heads for you to choose.

Features including:

1.Filling volume is determined by fill level

2.Pure pneumatic machines meet the explosion-resistant requirements.

3.Auto-drainage system is equipped.

4.No strict requirement with the bottle shape and consistency, Suitable for glass bottle,or plastic bottle without deforming after vacuuming.

5.Simple configuration and easy to operate and maintain.

6.Suitable for filling perfume, toilet water and anti-mosquito liquid products

Technical parameters:

Perfume products:

Perfume equipments as follow:

Perfume mixer:

Perfume filling machine:

Perfume capping machine:

Perfume filter:

Show Room:

Package:

Fair:

After Sales Service:

After training:

When you buy our packing machine, you should be after trained to use the packing machine. We have user manual, online video to teach you how to use the packing machine.

After sales service:

1. We have one year warranty and lifetime maintenance.

2. If the buyer has any questions from our technical department, we can supply on-line service.

3. Within one year, if you send back the equipment for repair, we will be responsible for the repair, including the changes of accessories; both of them are free of charge.

4. After one year, we offer to repair the machine, but cost of the changed parts are paid by customers.
