Home > Products > Automated Equipment > 4 Axis Automatic Soldering Robot, Desktop Soldering Robot Machine

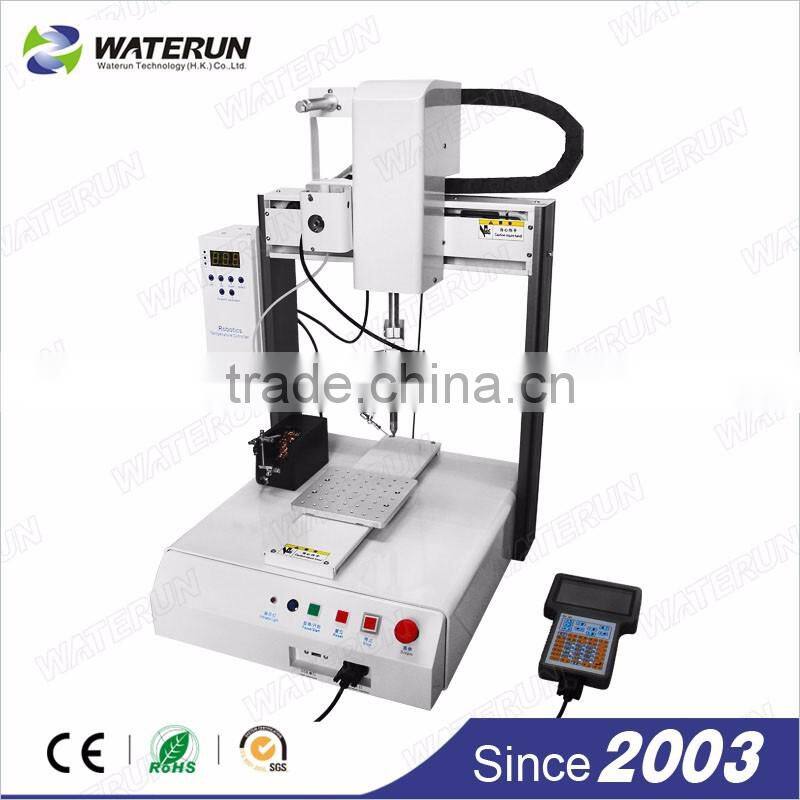

4 Axis Automatic Soldering Robot, Desktop Soldering Robot Machine

FOB Price

US$ 5,000 - 6,100 / Set

1 Set(Min. Order)

Port Shenzhen Port
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Starobot
Model Number	HX-300	Voltage	110V/220V
Current	-	Rated Capacity	-
Rated Duty Cycle	100%	Dimensions	550x650x830mm
Weight	55kg	Usage	Soldering
Certification	CE Certificate	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications for Soldering Robot Machines
Model	HX-200P	HX-300P	HX-300
Voltage	110V / 220V
Heating Power	150 - 300W
Preheating Temperature Range	0°C ~ 550°C
Axis	4
Operating Range (XYZ)	200 x 200 x 80mm	300 x 300 x 80mm	300 x 300 x 80mm
Movement Speed	X*Y Axis: 0.1~600mm/sec, Z Axis: 0.1~400mm/sec
Repeatability Accuracy	+/- 0.02mm (XYZ)
Minimum Analysia	0.01mm (XYZ)
Maximum Load Weight	8kgs (for work platform)
Program Capacity	Max. 255 programs
Solder Wire Diameter	0.5, 0.6, 0.8, 1.0, 1.2 (mm)
Operating Temperature	0°C ~ 40°C
Operating Humidity	20 ~ 90%
External Dimensions	600 x 430 x 680mm	590 x 540 x 790mm	550 x 650 x 830mm
Weight	about 40 kgs	about 50 kgs	about 55 kgs

Product Features

Main Features

1.High power heating controller ensures the tip temperature to reach 350°C within 30 seconds;

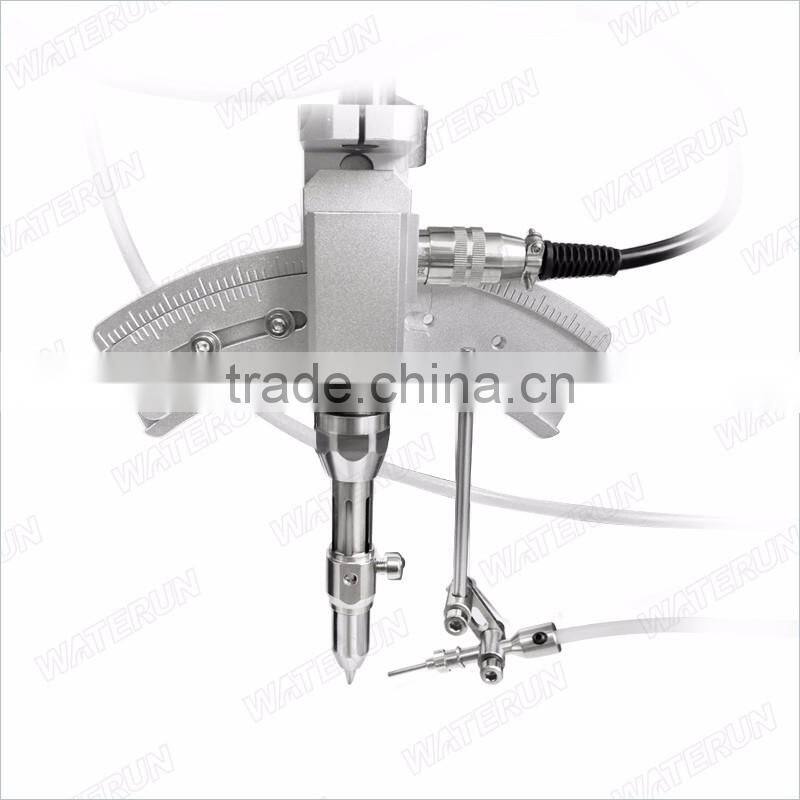

2.With the sleeve design, the soldering tip can be replaced quickly and easily.

3.Automatic tip cleaning function by airflow cleaning, the residual dross on the tip can be blown off easily.
4.Intelligent solder feeding mode, parameters can be set freely.

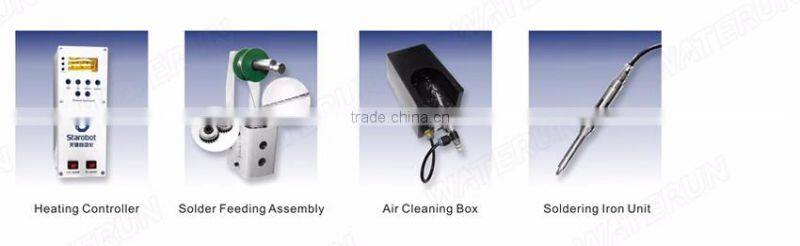

Basic Configuration

Four-piece Set for Soldering Robot

Packing & Delivery

Product Name	4 axis automatic soldering robot, desktop soldering robot machine
Packing Method	each machine will be packed in exported wooden box
Carton Size	61 x 68 x 96cm
Gross Weight	76kg
Delivery Time	about 25 working days
Shipping Method	By Courier: about 4-7 days after delivery
	By Air: about 7 days after delivery
	By Sea: about 30-60 days after delivery

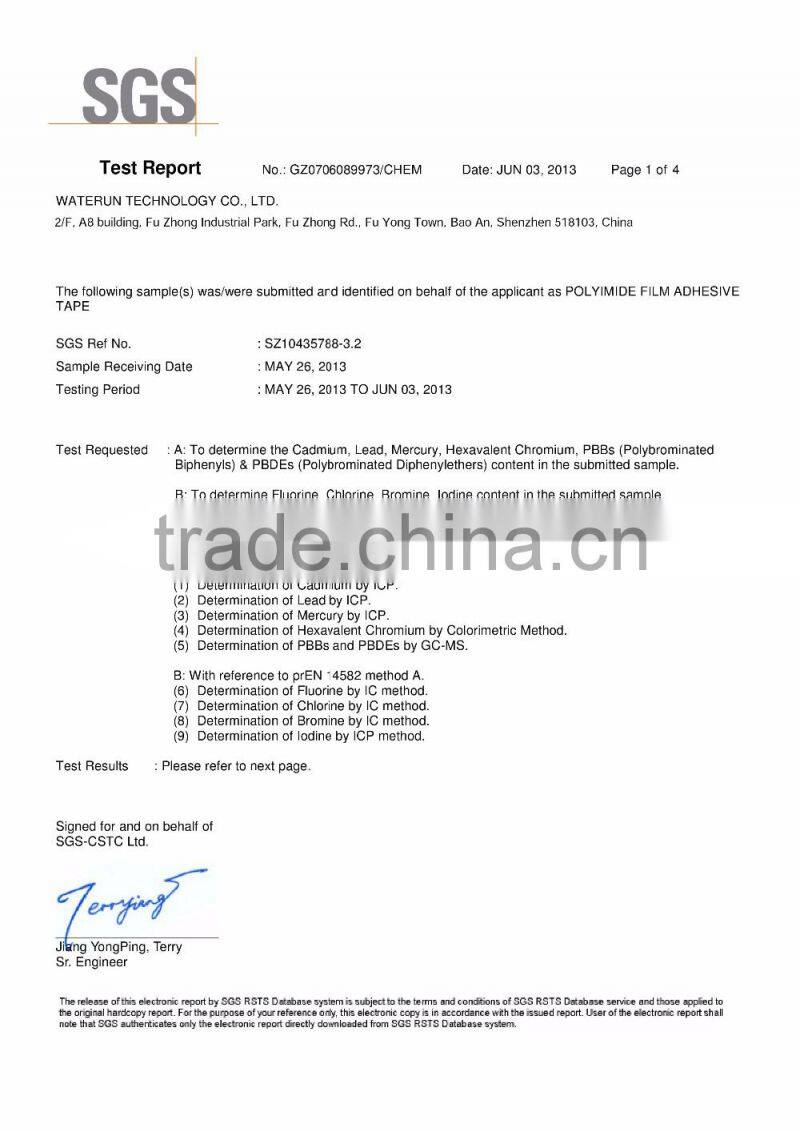

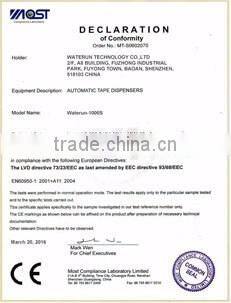

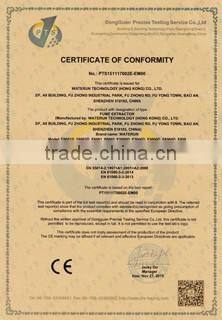

Certifications

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

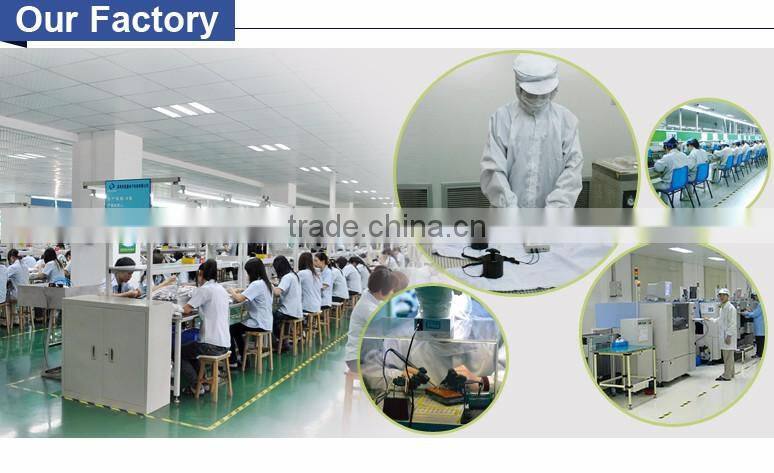

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Our Company

Exhibitions

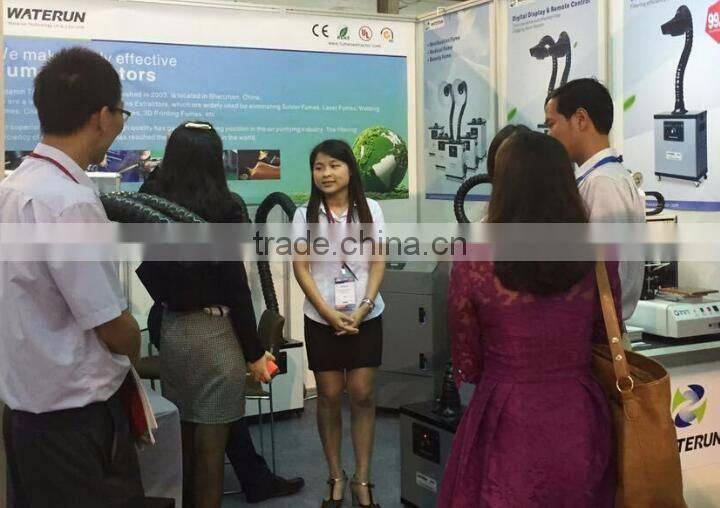

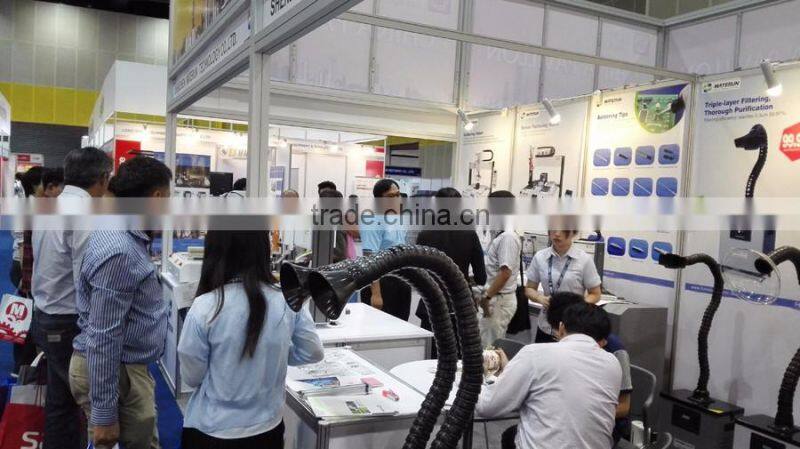

NEPCON Thailand 2016

The exhibition team presented our hot sell and new products Fume Extractor and Automatic Screw Fastening Robots, Soldering Robot and Glue Dispensing Robot, and also provided soluctions to achieve the complete automation.

NEPCON Vietnam 2015

We showed the Soldering Fume Extraction System Models and Visitors are invited to observe the significant effect of fume purify in the simulated work environment.

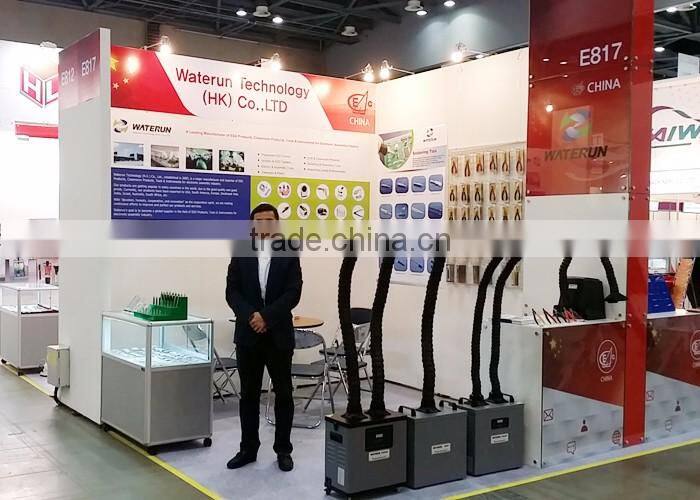

KES 2014

We have attended the KES which offers a comprehensive and energy saving lighting equipment, showing our fume extraction systems for different kinds of application.

Soldering Robot HX-200

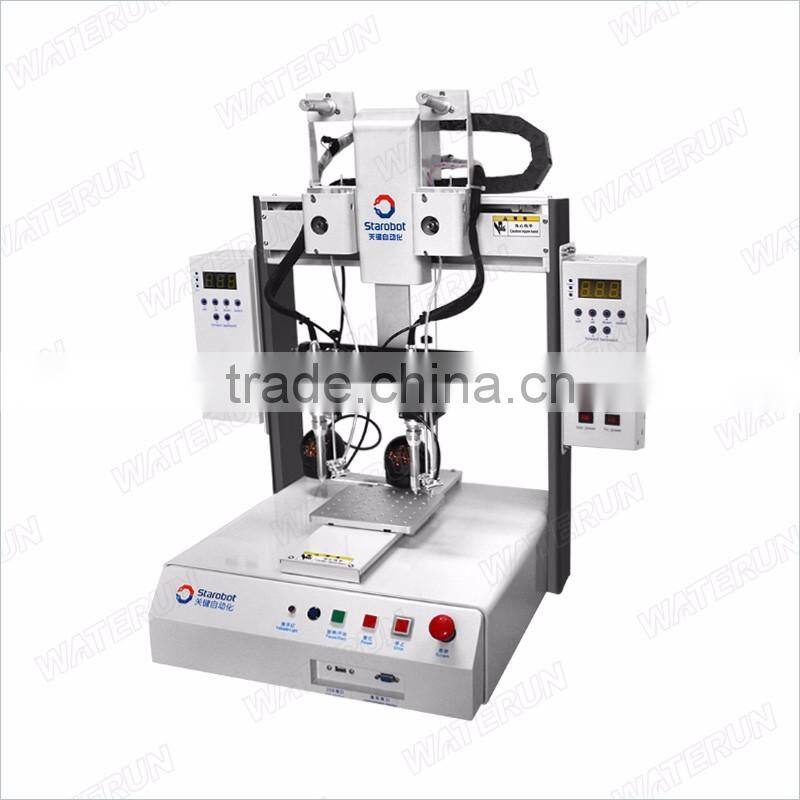

Soldering Robot HX-200YY

Soldering Robot HX-300P
