Yuanda High Quality MR Passenger Elevator
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Yuanda | |
| Usage | Residential Elevators | Drive Type | DC | |
| Elevator Type | Passenger Elevators |
Product Description
Specifications
Yuanda High quality MR passenger elevator1.Capacity: 250kg -1600kg
2.Speed: 0.4m/s-2m/s
3.safety, high efficiency

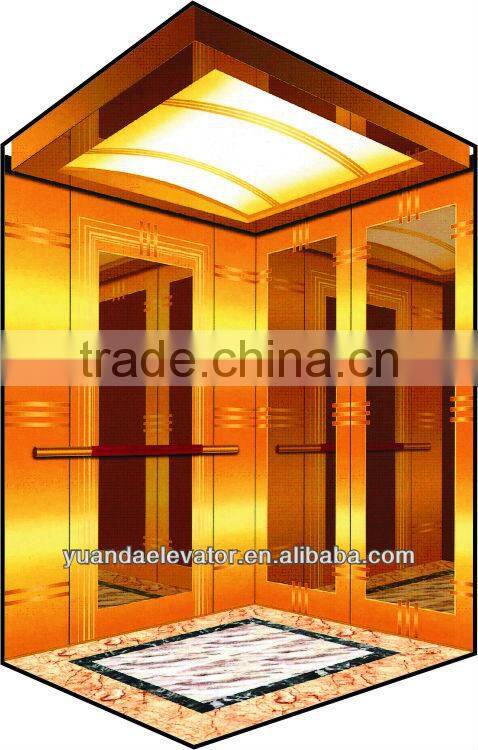

I. DESIGN

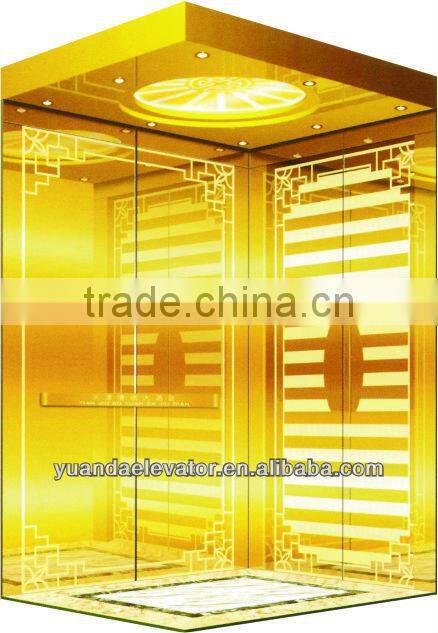

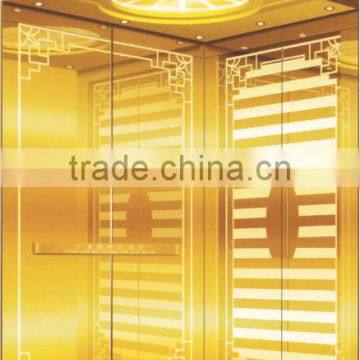

Model: YD-H07T
Car side & rear wall: Golden mirror stainless steel
Fall ceiling: Moonlight ceiling
Handrail: Round sanding solid wood
Flooring: PVC/Marble/Natural Marble
II. Standard Functions
1 | Auto-full collective control | 2 | Driver operating | 3 | inspection operating |
4 | Auto reversal floor indication | 5 | Floor running indication | 6 | Reversal car call clear |
7 | False call cancel | 8 | Five party-communication system | 9 | Door open and close button |
10 | Door-closed outside door zone | 11 | Door open of floor | 12 | Door re-opening, shift floor opening |
13 | Starting compensation | 14 | Indication of times of travel | 15 | Auto-inspect and history record of trouble |
16 | Automatic turn-off lighting and fan | 17 | Full load bypass | 18 | Overload door open stop operating protection |
19 | auto-correction of floor position signal | 20 | Self learning of Shaft | 21 | Base floor lock elevator |
22 | Auto landing | 23 | No service floor control | 24 | Special service |
| Car cage Arrival gong | 26 | Emergency lighting | 27 | Serial communication management |
28 | fire alarm | 29 | Curtain of light safety protection | 30 | Anti-jam door opening protection |
31 | Automatic detection of break contacting point | 32 | Brake protection | 33 | Frequency converter protection |
34 | Reversal running protection | 35 | Slow speed self rescue protection | 36 | Over speed protection |
37 | Low-voltage protection | 38 | phase protection | 39 | Final limit switch protection |
40 | Time controlling | 41 | Fire Emergency |
|
|

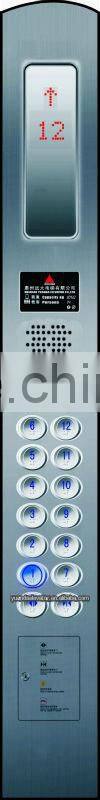

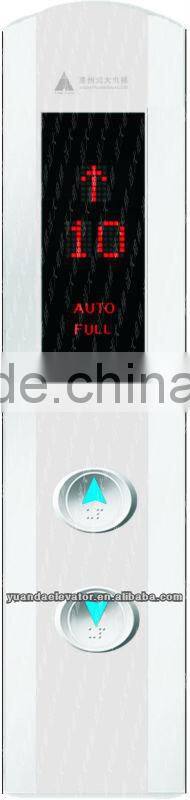

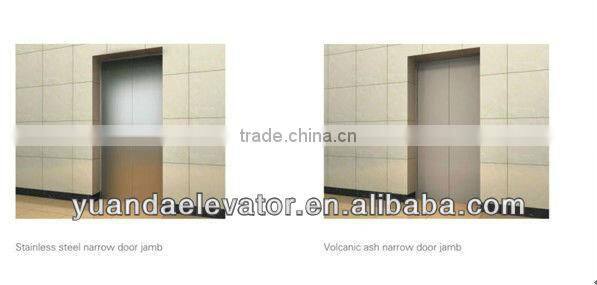

III. Standard Landing Door COP and HOP
IV. Specification
MRL Passenger Elevator Technical specifications
| Model | Loading Capacity | Numbers of passengers | Traveling speed (m/s) | Cabin inside dimension | Entrance opening dimension | Shaft dimension | Pit depth | Overhead height |
| TKWJ450 | 450kg | 6 | 1.0/1.5 | 1400X900 | 800X2100 | 1700X1700 | 1.6/1.9 | 4.3/4.5 |
| TKWJ630 | 630kg | 8 | 1.0/1.5 /1.75/2.0 | 1400X1200 | 800X2100 | 1800X1800 | 1.6/1.8/1.9 | 4.3/4.5/4.6 |
| TKWJ800 | 800kg | 10 | 1.0/1.5 /1.75/2.0 | 1400X1400 | 800X2100 | 1900X1900 | 1.6/1.8/1.9/2.0 | 4.3/4.5/4.6/4.8 |
| TKWJ1000 | 1000kg | 13 | 1.0/1.5 /1.75/2.0 | 1600X1500 | 900X2100 | 2000X2000 | 1.6/1.8/1.9/2.0 | 4.3/4.5/4.6/4.8 |
| TKWJ1250 | 1250kg | 16 | 1.0/1.5 /1.75/2.0 | 2000X1400 | 1000X2100 | 2200X2200 | 1.6/1.8/1.9/2.0 | 4.3/4.5/4.6/4.8 |
| TKWJ1350 | 1350kg | 18 | 1.0/1.5 /1.75/2.0 | 2000X1500 | 1100X2100 | 2300X2300 | 1.6/1.8/1.9/2.0 | 4.3/4.5/4.6/4.8 |
| TKWJ1600 | 1600kg | 21 | 1.0/1.5 /1.75/2.0 | 2000X1700 | 1200X2100 | 2600X2600 | 1.6/1.8/1.9/2.0 | 4.3/4.5/4.6/4.8 |

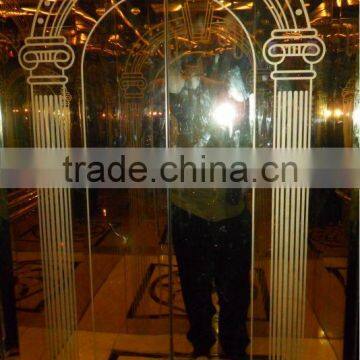

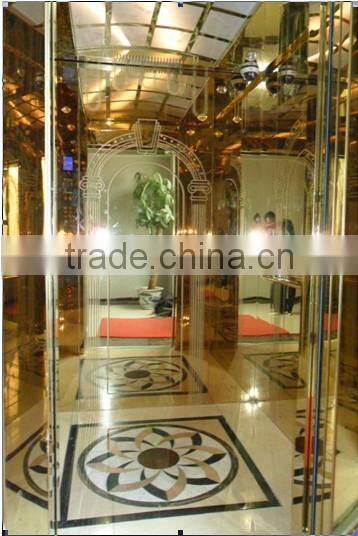

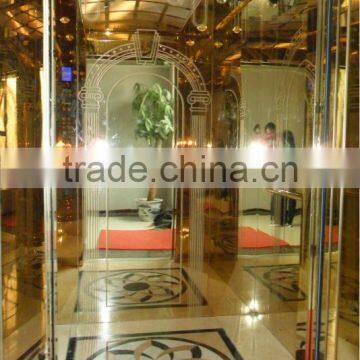

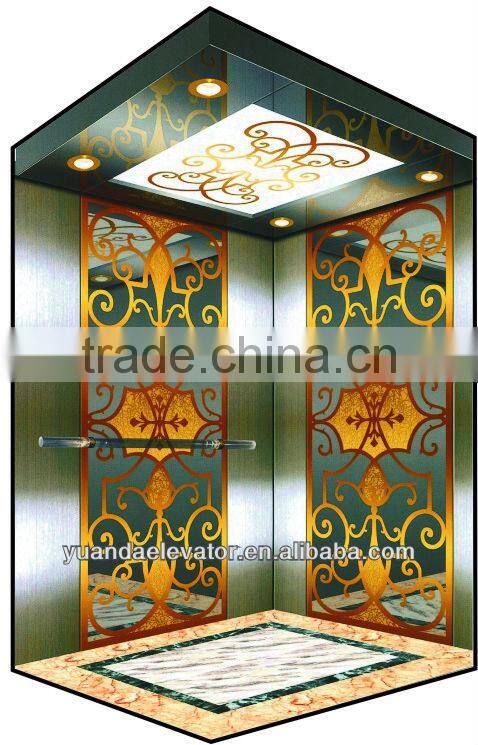

V. Optional Cabin

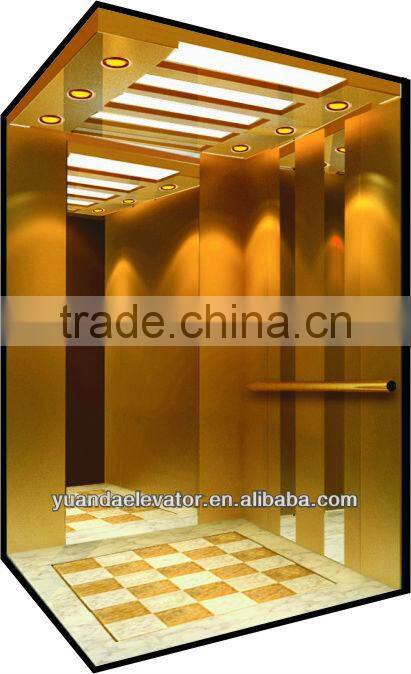

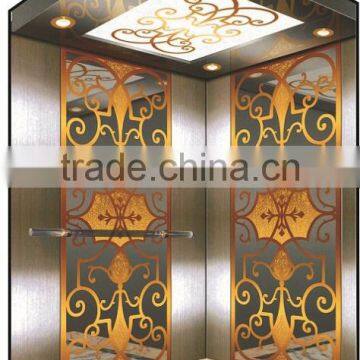

YD-P009 YD-P007 YD-H01T YD-H02T
VI. Yuanda Production Zone
