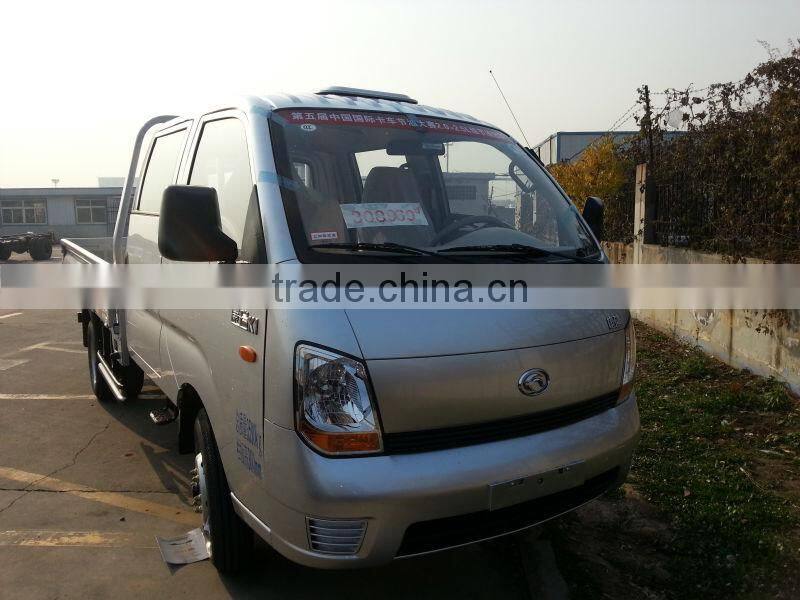

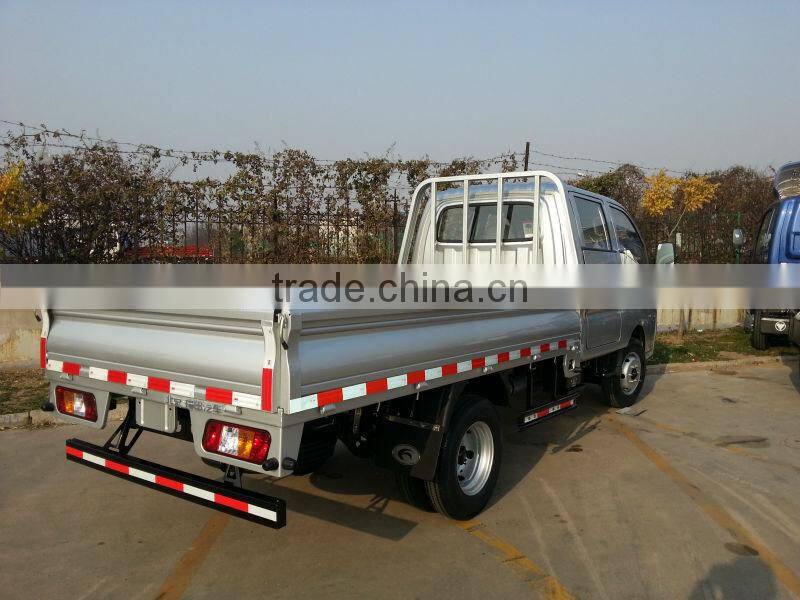

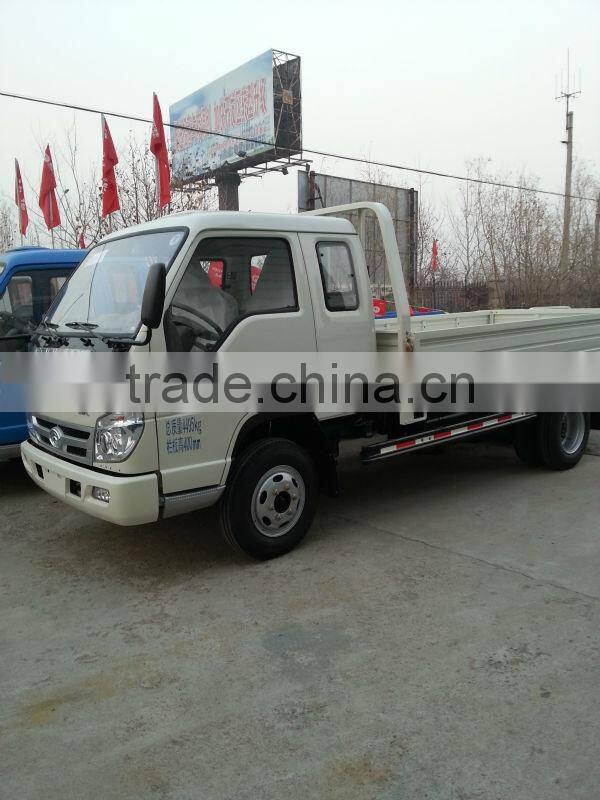

New Foton 4*2wd Mini Bus/view Van Foton Pickup
- qingdao/tianjin/xingang/shanghai
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Capacity (Load) | 1 - 10t | |
| Drive Wheel | 4x2 | Horsepower | Other, < 150hp | |
| Transmission Type | Manual | Emission Standard | Euro 2 | |
| Fuel Type | Diesel | |||
| Size | 5425 | Gross Vehicle Weight | 5100 | |
| Brand Name | XI | Model Number | BJ1043 |
Product Description

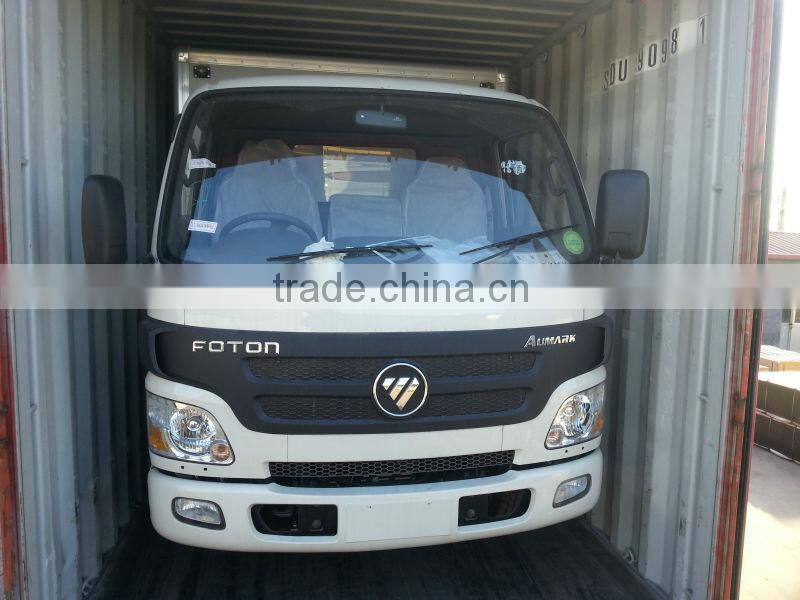

| Vehicle brand | AUMARK 2.0T | |
| Vehicle model | BJ1051V9JD4-FP | |
| Cabin | Single row seat tiltable | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 5425×1990×2260 5305×1840×2190 |
| Inner dimensions of the cargo body (LxWxH)mm | 3655×1900×380 | |
| Driving type | 4×2 | |
| Wheel base (mm) | 2800 | |
| Wheel track (front/rear) (mm) | 1530/1425 | |
| Min. ground clearance (mm) | ≥180 | |
| Weight data | Curb weight (kg) | 2500 2200 |
| Rated payload (kg) | 1990 | |
| Persons in cab (persons) | 3 | |
| Gross vehicle weight(kg) | 4490 | |
| Whole vehicle main performance | Max. speed(km/h) | 115 |
| Max. slope of climb(%) | ≥30 | |
| Fuel consumption(L/100km) | ||
| Min. turning diameter(m) | ||
| Engine | Model | ISF2.8s5148T |
| Type | Four-cylinder,In-line,Four-stroke,Water-cooling,turbocharging middle cooling | |
| Displacement(L) | 2.78 | |
| Rated power(kw/rpm) | 110/3200 | |
| Max torque (N.m/rpm) | 360/1800~2700 | |
| Gearbox | Model | 5S400 |
| Speed ratio | i1=5.02,i2=2.54,i3=1.54,i4=1.00,i5=0.79,iR=4.48 | |
| Clutch | Type | diaphragm springφ310*φ190 |
| Rear axle | Type/Main reducer ratio | Whole banjo type,Speed ratio:4.3 |
| Suspension | Front suspension/Leaf spring number | non-independent suspension, leaf spring/7 |
| Rear suspension/Leaf spring number | non-independent suspension, leaf spring/4+5 | |
| Steering gear | Circular ball type,Power steering | |
| Brake system | Service brake | front:hydraulic disk brake,R12.5/rear:hydraulic drum brake,φ300×75 |
| Parking brake | Centra drum brake | |
| Auxiliary brake | Exhaust brake | |
| Wheels and tyre size | 205/75R16 | |
| Electric device | Rated voltage | 12V |
| Battery | ||
| Fuel tank (L) | 80L | |
| Basic equipment | Exhaust brake,Clutch booster,Power steering,ABS,A/C,Cruise,Center control lock,Electro-driven window glass lifter,CD,Radar | |
foton, freezer truck,refrigerated truck,freezer van
loading capacity 2500kg
Maximum speed 95km/h
Minimum temperature -18
chassis model | BJ1049 | Engine power | 70kw(95hp) |
Combustion types | diesel | Engine capacity | 3168ml |
Overall dimensions | 5995×1910×2900mm | Rear internal box dimensions | 4200(14ft)×1750×1800 |
GVW | 4325kg | loading capacity | 2500kg |
Mass in working order | 2700kg | Wheelbase | 3308mm |
Axle number | 2 | Maximum speed | 95km/h |
standard | Euro 2 | Engine model | CY4102 |
Tire specification | 6.50-16 | Tire number | 6+1 |
Axle-load | 1495,1430 | Lead time | 7-10days |
3 tons 4x2 isuzu mini van truck, refrigerated truck for s

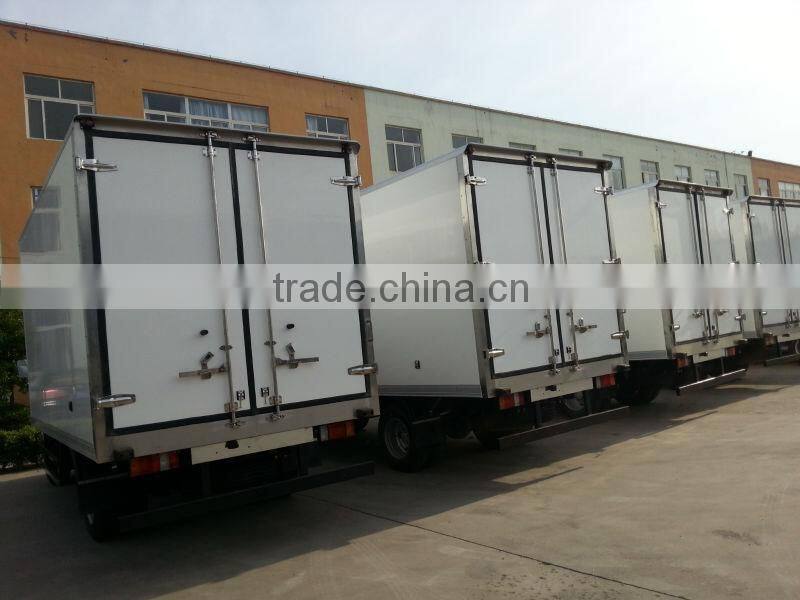

Equipment: chassis, the heat preservation box body--standard material is glass fiber reinforced plastic, 8mm polyurethane insulation layer, Standard back open door and refrigeration unit;
Optional: polyurethane material, color steel plate, stainless steel, etc, 5mm insulation layer, side open door;
Function: transport frozen foods (ice truck), dairy (milk truck) fruits and vegetables (fresh transporter) vaccine and drug transporter (vaccine truck), etc
OUR COMPANY which is appointed by the Development and Reform Committee of China is a famous manufacturer producing all kind of special trucks for 10 years. Labels registered CLW has roundly passed the ISO9001-2008 and the 3C(China Compulsory Certification).Our company has independent export right and has a lot of overseas clients. Our leading products are more than 300 kind of trucks such as Water truck, LPG truck, Fecal suction truck, Garbage truck, Refuse compactor, Sewage suction truck, Fuel tank, High-altitude operation truck, Truck with crane, Dump truck, Instructional truck, Van truck, Semi-trailer, Fire engine, Spares, Refrigerator truck, Water wagon, Tractor, High-altitude water truck, Bulk cement truck, Chemical liquid truck, Concrete mixer truck, ect.
We highly recommend this refrigerated truck.It’s in an excellent condition and also with good quality and competitive price. Further information, pls feel free to contact with me or visit our website, we will offer our best service.
ale
1.Famous chassis isuzu refrigerated truck,isuzu mini van truck
2.Good performance isuzu refrigerated truck,isuzu mini van truck
3.Factory price isuzu refrigerated truck,isuzu mini van truck
4.Fully past ISO &3C isuzu refrigerated certificate,isuzu mini van truck .
5.5 tons mini refrigerated truck, refrigerator freezer truck
