Home > Products > dump truck > Box for Cargo Truck Camping Trailer House

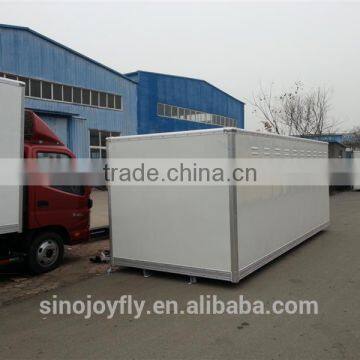

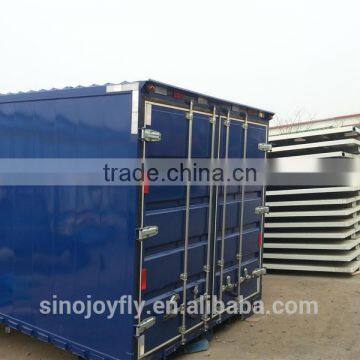

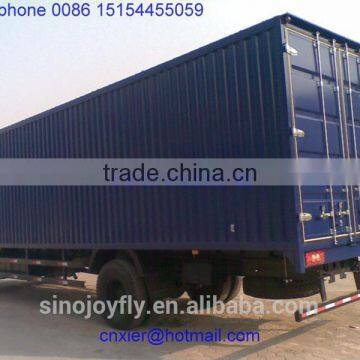

Box for Cargo Truck Camping Trailer House
- qingdao/tianjin/shanghai
- T/T
You May Like
Product Details
| Drive Wheel | 6x4 | Capacity (Load) | 31 - 40t | |
| Horsepower | 251 - 350hp | Condition | New | |
| Transmission Type | Manual | Emission Standard | Euro 2 | |
| Fuel Type | Diesel | Engine Capacity | 6 - 8L | |
| Gross Vehicle Weight | 65000 | Place of Origin | Shandong, China | |
| Brand Name | auman | Model Number | bj3251 | |
| Dimensions (L x W x H) (mm) | 7800*2500*3400 |

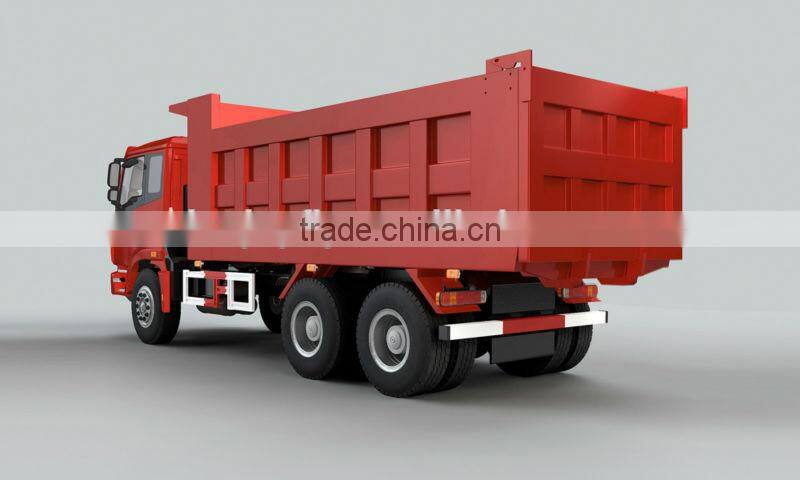

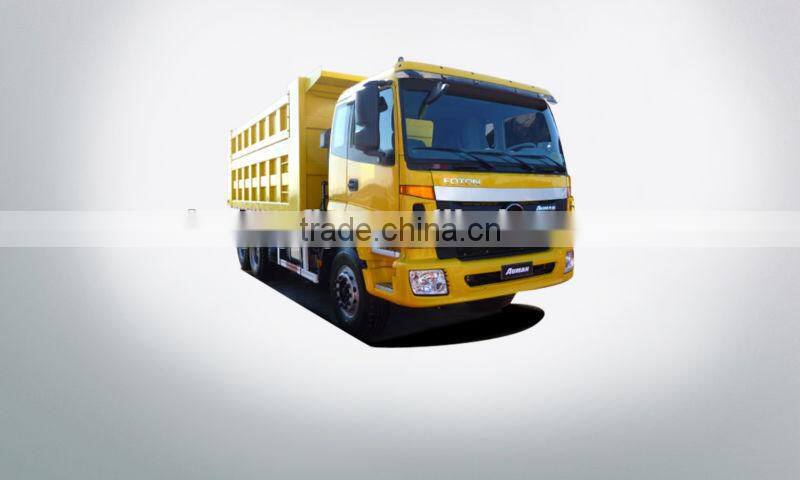

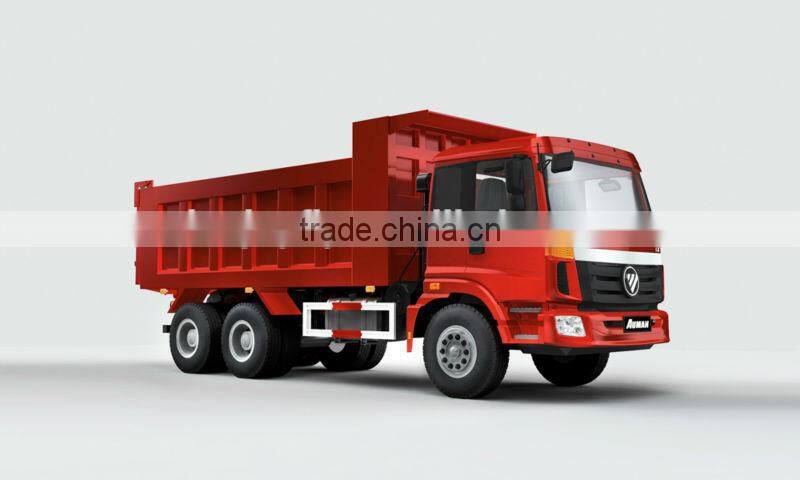

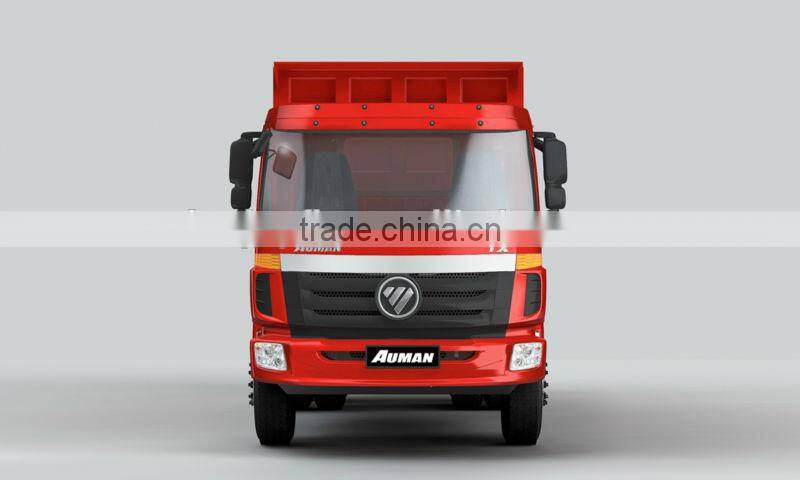

Product Description
| Function | Dumper |
| Drive style | 6×4 |
| Steering wheel position | Left hand |
| Platform | TX |
| Work conditions | Standard type |
| Vehicle model | BJ3251DLPJB-5 |
| Resource No. | 3253DLPJB-07ZA01 |
| Wheelbase (mm) | 3400+1350 |
| long(mm) | 7782 |
| width(mm) | 2495 |
| height(mm) | 3400 |
| long(mm) of the cargo body | 5200 |
| width(mm)the cargo body | 2300 |
| height(mm) the cargo body | 1500 |
| Tread (front)(mm) | 2005 |
| Tread (rear) (mm) | 1865 |
| Minimum ground clearance(mm) | 314 |
| Chassis kerb weight(kg) | 9300 |
| Design laod mass(kg) | 18500 |
| GVW(design)(kg) | 32000 |
| GCW(design)(kg) | - |
| GVW(actual range)(t) | 33-65 |
| GCW(actual range)(t) | - |
| Maximum speed (km/h) | 78 |
| Maximum climbing capacity, % | 43 |
| (full load) | |
| Body type | ETX-2490 flat roof |
| Persons in cab(persons) | 3 |
| Model | WD615.44 |
| In-line,six-cylinder, water | |
| cooling, four-stroke, DI, | |
| Type | turbocharging, |
| intercooling, diesel | |
| engine. | |
| Displacement (L) | 9.726 |
| Max power (ps/rpm) | 320(2200) |
| Max torque (Nm/rpm) | 1250(1200-1500) |
| Brand | WEI CHAI |
| Emission | EuroⅡ |
| Type | Single, dry type |
| diaphragm spring | |
| Plate diameter | φ430 |
| Model | 12JSD160T(PTO) |
1.Reliable quality
Adopting advanced production technology and perfect testing equipments to ensure the reliable quality and good performance of trucks. Famous brand main assemblies.
2.Supply Capacity

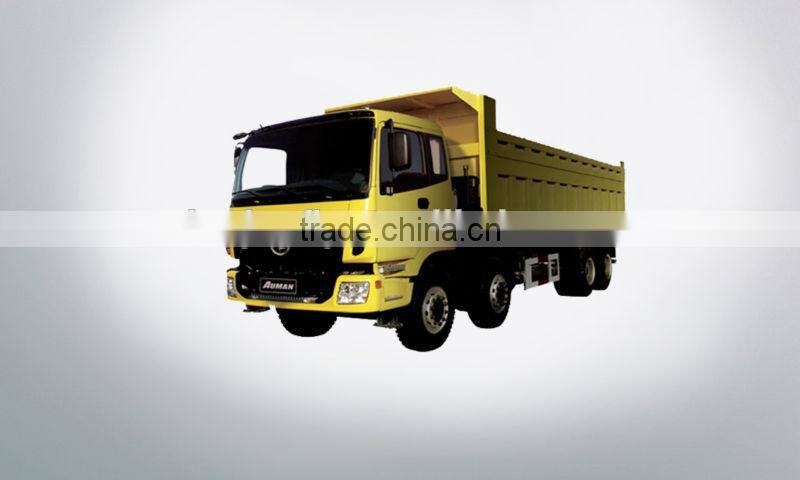

The trucks shall be on production procedure immediately after you place order. The annually productivity of our factory can reach 3000 truck units. 8X4 DUMP TRUCK fully comply with relevant national standards, at the same time to meet with the individual needs of customers.
In the past 15 years, we only do a truck, we are more professional.
for truck body,we are transport it by container.
for light truck,we are transport it by container. nude packing
for bigger truck,RO-RO ship it. nude packing
We are looking for long term cooperation with customers. Therefore, if there is any quality feedback, we shall provide technical support and after sales service promptly. Easy to wear off parts list for each model is available upon customer's request. Service parts shall be sent along with each complete truck as well to ensure easy maintenance and service of each truck.
