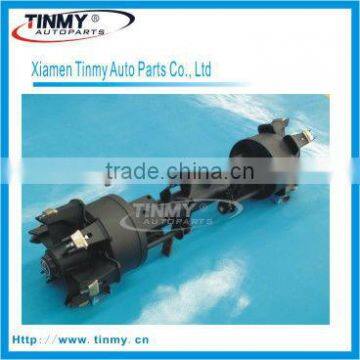

Hot seller Semi Trailer BPW Spoke Axles
- Xiamen Qingdao
- T/T Credit Card
You May Like
Product Details
| Parts | Trailer Suspension | OEM No. | TMAD12-E01 | |
| Max Payload | 25TON | Size | Track 1840 | |
| Place of Origin | Fujian, China | Brand Name | TINMY | |
| Model Number | TMAD-16-E01,TMAS16-E01 |
Product Description
Specifications
Hot seller Semi Trailer BPW Spoke Axles1.Type: drum & spoke axle
2.Capacity is 3T,11T,12T,13T,14T,16T,20T axles
3.Certi:ISO
Hot seller Semi Trailer BPW Spoke Axles:
1. Type: drum axle and spoke axle are available
2. Capacity is 3T, 11T, 12T, 13T, 14T, 16T, 20T axles
3. Certificate: ISO/TS16949
Tinmy Axle Factory can supply various axles for different trucks and trailers
1. American type axle and German type axle with different capacity from 1ton-25ton.
And the axle can be diffierent track length and total length.
2. Other special axles are available according to clients's design or requirement
3. The annual turnout is over 100.000 pieces based on on-time deliery.
4. Special small axles for tractores are available.
5. Certificate: ISO/TS16949
High quality, competitive price & fast delivery
Euro Drum Axles:
| Item No. | Capacity (T) | Track (mm) | Axle Beam (mm) | Center Distance Of Chamber (mm) | Brake Spec(mm) | Wheel Fixing (mm) | Wheel Rim | Total Length (mm) | Weight (Kg) | Bearing |
| L2 | L3 | D1xD2 | L1 | Inner/Outer | ||||||
| TMAD10-E01 | 10 | 1820 | 150 | 490 | S 420*180 | 10xM22xΦ285.75×Φ220 | 7.5V-20 | 2115 | 360 | 33118/33213 |
| TMAD12-E01 | 12 | 1845 | 150 | 300 | S 420*180 | 10xM22xΦ287.75xΦ220 | 7.5V-20 | 2300 | 360 | 33118/33213 |
| TMAD14-E01 | 14 | 1800 | 150 | 240 | S 420*200 | 10xM22xΦ335xΦ281 | 7.5V-20 | 2250 | 483 | 32219/33215 |
| TMAD16-E01 | 16 | 2400 | 150 | 480 | S 420*200 | 10xM22xΦ335xΦ281 | 8.00V-20 | 2810 | 528 | 32222/32314 |
| TMAD20-E01 | 20 | 2242 | 150 | 260 | S 420*220 | 10xM22xΦ285.75xΦ220 | 8.50V-20 | 2720 | 745 | 32222/32314 |
Euro Spoke Axles:
| Item No. | Capacity (T) | Track (mm) | Axle Beam (mm) | Center Distance Of Chamber (mm) | Brake Spec(mm) | Wheel Fixing (mm) | Total Length(mm) | Weight (Kg) | Bearing |
| L2 | L3 | D1 | L1 | ||||||
| TMAS12-E01 | 12 | 1840 | 150 | 392 | S 420*180 | 6xM22 Space 24 | 2150 | 420 | 33118/33213 |
| TMAS14-E01 | 14 | 1840 | 150 | 230 | S 420*200 | 6xM22 Space 24 | 2240 | 550 | 32219/33215 |
| TMAS16-E01 | 16 | 1840 | 150 | 320 | S 420*200 | 6xM22 Space 24 | 2270 | 535 | 32222/32314 |
| TMAS20-E01 | 18 | 1840 | 150 | 380 | S 420*220 | 6xM22 Space 24 | 2276 | 540 | 32222/32314 |
