Fuwa Trailer Axles
US$ 350 - 750
/ Piece
10 Pieces(Min. Order)
- Xiamen Qingdao
- T/T Credit Card
You May Like
Product Details
| Parts | Trailer Axles | OEM No. | TMAD12-E01 | |
| Max Payload | 25TON | Size | Track 1840 | |
| Place of Origin | Fujian, China | Brand Name | TINMY | |
| Model Number | TMAD-16-E01,TMAS16-E01 |
Product Description
Specifications

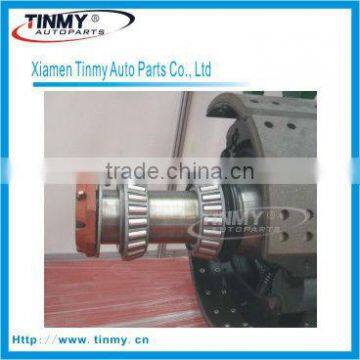

FUWA Trailer Axles:1.Type:drum, spoke axle,
2.Capacity is 3T, 11T, 12T, 13T, 14T, 16T, 20T axles
3.Certificate:ISO/TS16949
Fuwa Trailer Axles:
Type: drum axles and spoke axles are available
Tinmy Axle Factory can produce various axles for different trucks and trailers
1. American type axle and German type axle with different capacity from 1ton-25ton
And the axle can be diffierent track length and total length.
2. Other special axles are available according to clients's design or requirement
3. The annual turnout is over 100.000 pieces based on on-time deliery.
4. Special small axles for tractors are available.
5. Certificate: ISO/TS16949
Euro Drum Axles:
| Item No. | Capacity (T) | Track (mm) | Axle Beam (mm) | Center Distance Of Chamber (mm) | Brake Spec(mm) | Wheel Fixing (mm) | Wheel Rim | Total Length (mm) | Weight (Kg) | Bearing |
| L2 | L3 | D1xD2 | L1 | Inner/Outer | ||||||
| TMAD10-E01 | 10 | 1820 | 150 | 490 | S 420*180 | 10xM22xΦ285.75×Φ220 | 7.5V-20 | 2115 | 360 | 33118/33213 |
| TMAD12-E01 | 12 | 1845 | 150 | 300 | S 420*180 | 10xM22xΦ287.75xΦ220 | 7.5V-20 | 2300 | 360 | 33118/33213 |
| TMAD14-E01 | 14 | 1800 | 150 | 240 | S 420*200 | 10xM22xΦ335xΦ281 | 7.5V-20 | 2250 | 483 | 32219/33215 |
| TMAD16-E01 | 16 | 2400 | 150 | 480 | S 420*200 | 10xM22xΦ335xΦ281 | 8.00V-20 | 2810 | 528 | 32222/32314 |
| TMAD20-E01 | 20 | 2242 | 150 | 260 | S 420*220 | 10xM22xΦ285.75xΦ220 | 8.50V-20 | 2720 | 745 | 32222/32314 |
Euro Spoke Axles:
| Item No. | Capacity (T) | Track (mm) | Axle Beam (mm) | Center Distance Of Chamber (mm) | Brake Spec(mm) | Wheel Fixing (mm) | Total Length(mm) | Weight (Kg) | Bearing |
| L2 | L3 | D1 | L1 | ||||||
| TMAS12-E01 | 12 | 1840 | 150 | 392 | S 420*180 | 6xM22 Space 24 | 2150 | 420 | 33118/33213 |
| TMAS14-E01 | 14 | 1840 | 150 | 230 | S 420*200 | 6xM22 Space 24 | 2240 | 550 | 32219/33215 |
| TMAS16-E01 | 16 | 1840 | 150 | 320 | S 420*200 | 6xM22 Space 24 | 2270 | 535 | 32222/32314 |
| TMAS20-E01 | 18 | 1840 | 150 | 380 | S 420*220 | 6xM22 Space 24 | 2276 | 540 | 32222/32314 |
