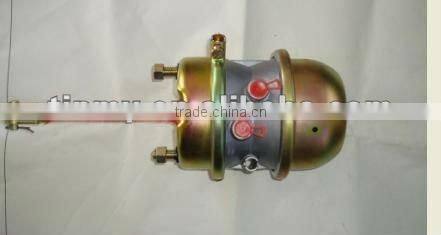

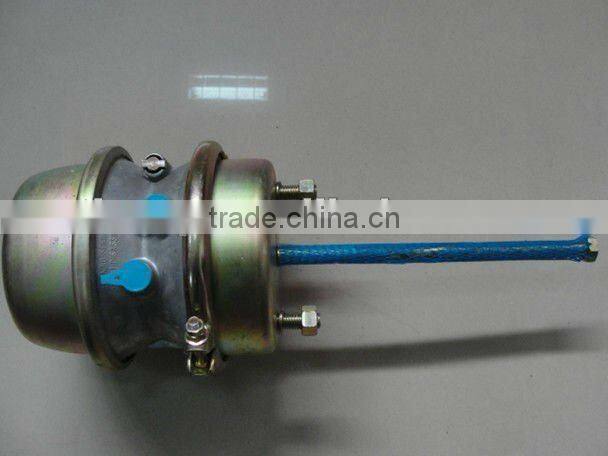

Sealed Spring Brake Chamber
- Xiamen Qingdao
- T/T Credit Card
You May Like
Product Details
| Type | Brake Chamber | Truck Model | Other, all trucks and trailers | |
| Material | alloy, steel, rubber .... | Size | T30/30 | |
| OEM No. | T30/30 |
Product Description
Specifications
Spring Brake Chamber1>T24, T30, T24T30, T3030 .
2>double room Brake Chamber
3>Certificate:ISO/TS16949
4>Good quality
Sealed Spring Brake Chamber:
1>T24, T30, T24T30, T3030 Sealed Spring Brake
2>Single&double room Brake Chamber
3>Certificate:ISO/TS16949
4>Good quality Air Chamber, Competitive price, intime delivery
Single Room Air Chamber :
| Item No. | Stroke | R1 | R2 | L1 | L2 | L4 | Push Rod Thread | Air Inlet Thread | Mounting Bolt Thread | Weight |
| mm | mm | mm | kg | |||||||
| TMC-T2024 | 64 | 110 | 88 | 220±5 | 75±5 | 50±4 | M16*1.5 | M16*1.5 | M16*1.5 | 7.78 |
| TMC-T2424 | 64 | 116 | 93 | 224±5 | 240±5 | 206±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 8.1 |
| TMC-T2430 | 64 | 163 | 184 | 234±5 | 240±5 | 206±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 9.2 |
| TMC-T3030 | 64 | 125 | 105 | 238±5 | 285±5 | 255±5 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 9.5 |
Double Room Brake Chamber :
| Item No. | Stroke | R1 | R2 | L1 | L2 | L4 | Push Rod Thread | Air Inlet Thread | Mounting Bolt Thread | Weight |
| mm | mm | mm | kg | |||||||
| TMC-T09 | 44.5 | 87 | 68 | 104±5 | 106±5 | 130±3 | 1/2"-20UNF | 1/4"-18NPTF | 7/16"-14UNC | 1.9 |
| TMC-T12 | 44.5 | 125 | 105 | 104±5 | 160±5 | 130±3 | 1/2"-20UNF | 3/8"-18NPTF | 7/16"-14UNC | 2.3 |
| TMC-T16 | 57 | 107 | 83 | 109±3 | 163±5 | 160±3 | 1/2"-20UNF | 3/8"-18NPTF | 7/16"-14UNC | 3 |
| TMC-T20 | 57 | 11 | 88 | 84±5 | 240±5 | 200±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 4 |
| TMC-T24 | 64 | 116 | 93 | 123±5 | 240±5 | 206±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 4.1 |
| TMC-T30 | 64 | 125 | 105 | 123±5 | 285±5 | 255±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 4.8 |
Tinmy can manufacture T24, T30, T24T30, T2424, T3030 air chamber (brake chamber) with high quality and competitive price.
Tinmy Spring Brake Chamber,Air Brake Chamber,Single room air chamber, double brake chamber
have been supplying to many countries in the world.
1>. Size:T24, T30, T24T30, T3030 Single ,double air chamber (DP type & DD Brake CHamber )
2>. Certificate:ISO/TS16949
3>. Delivery time: Within 10 days after receive TT payment or LC
