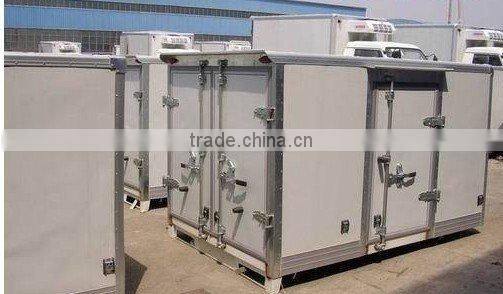

PP Sandwich Box Van
US$ 300 - 1,500
/ Unit
1 Unit(Min. Order)
- Qingdao
- T/T
You May Like
Product Details
| Type | Other, Truck Body | Truck Model | Other, All kinds of Trucks | |
| Size | as request | Material | as request, PU,Steel,Aluminium | |
| OEM No. | S | Place of Origin | Shandong, China | |
| Brand Name | Xier | Model Number | ZZT |
Product Description
Specifications
PP Honeycomb sandwich box van Panel1. Light-weight &high-intensity
2. fire resistant & insulation
3.anti-impact&scratch
1.The advanatages of PP Honeycomb sandwich box van Panel
Light-weight &high-intensity 2.fire resistant & insulation 3.anti-impact&scratch
Features:
1.light weight and high strength.
The whole panel is light weight and high strength.It can lighten the whole product's weight without reducing the strength.
2. heat & sound insulation
The panel has excellent heat and sound insulation performance.So it can be used in where temperature is required.
3.mold &mildew resistance
The surface of the board----Keying Glasbord,makes it resistant to mold and mildew ,and easy to clean.It is also resistant to scratches,abrasions,staining.
4.Environmental protection
There is non-toxic,non-radiomaterial,and tasteless,no harmful fumes.
5.Easy to install
It can be cut freely into all kinds of irregular plates.
Correlation Parameter:
Table 1 Physical Property
Test Item | Test Method | Unit | Result |
Barcol hardness | GB/T3854-2005 | Hba | 53 |
Tensile strength | GB/T4944-2005 | MPa | 42.1 |
Elongation at break | GB/T1040.1-2006 and | % | 1.6 |
Tensile modulus | GB/T1040.2-2006 | MPa | 4590 |
Flexural strength | GB/T9341-2008 | MPa | 129.6 |
Flexural modulus | GB/T9341-2008 | MPa | 4964 |
Taber abrasion | GB/T5478-2008 | mg | 20.3 |
Specific gravity | GB/T1463-2005 | 1.600 | |
Impact resistance | GB/T14153-93 | J | 0.42 |
Absolute water absorption | GB/T1462-2005 | g | 0.05 |
Table 2 Surface Sterilization Performances
Test Item | Test Method | Unit | Result |
Aureus Removal rate | GB15979-2002 | % | 70 |
Coli Removal rate | GB15979-2002 | % | 84 |
Salmonella Removal rate | GB15979-2002 | % | 74 |
Shigella Removal rate | GB15979-2002 | % | 75 |
Table 3 Toxic substances content
Test Item | Test Method | Unit | Technical Requirements | Result |
Volatile matter content | GB18586-2001 | g/m2 | ≤75 | 4.2 |
Heavy Metal Soluble Lead | GB18586-2001 | mg/m2 | ≤20 | 1.7 |
Heavy Metal Soluble Cadmium | GB18586-2001 | mg/m2 | ≤20 | 0.25 |
---------------------------------------------------------------------------------------------------------------------------
2.Products of our company: CKD van truck body/
Truck body from FRP honeycomb panel/Keying Glasbord(frp panel)+PP honeycomb+Glasbord(frp panel)
We can supply: refrigerated truck body, insulated truck body, dry cargo truck body, plateform truck body, explosion-proof truck body, dump truck body,tank truck body, wing opening truck body, catering truck body, any other special purpose truck and truck body.....etc
The refrigerated truck body proecessed with FRP with insulation foam. Our standard thickiness is 80mm. But the thickness can be change according to customer's requirements.
Stainless steel door frame and door lock system.
---------------------------------------------------------------------------------------------------------------------------
3.The main character of our truck body:
Light in weight, better insulation, high in strength and long useful life.
Non-corrosion ,non-pollution,anti-brine,acid and soda-resisting.
Easy to be asembled and repaired at site.
---------------------------------------------------------------------------------------------------------------------------
Product structure:Keying Glasbord(frp panel)+Al honeycomb+Glasbord(frp panel)
