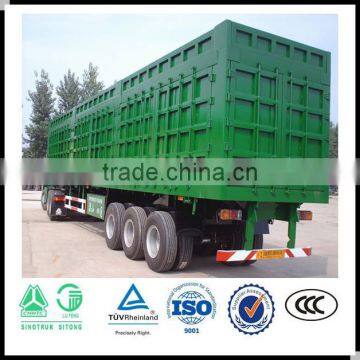

trailers with hydraulic lifts with excellent quality

Tare Weight

7-15T

dimension

11600/13000/16000*2490*1575mm

Loading Capacity

≤45T

Axle

13T/16T,FUWA/BPW/Huajing Brand

Rim

9.00-22.5 China brand

Tire

12.00R22.5/315 80R22.5

Suspension

Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW Brand)

Spring leaf

90(w)mm*13(thickness)mm*10Layer or 100mm*12mm*12

King pin

Jost brand 2.0 0r 3.5 inch bolts type or welding type

Support leg

JOST brand D200T or China brand 28Tons (Double speed)

Main beam

Height:500mm,upon plate is 14mm,middle plate is 8mm,down plate is 16mm;Material is Q345B Steel

Side beam

16mm or 18mm channal steel (Material is Q235steel)

Brake chamber

WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber

ABS

Optional

Twist Locks

Four, Eight, Twelve pieces(Lifting type or Twist Screw Type)

Valve

WABCO valve

Light

LED light

Voltage

24V

Receptacle

7 ways(7 wire harness)

Tool box

One piece,1m*0.5m*0.5m(Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)

Painting

Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2coats of final paint

Shipping term

Transport by bulk cargo carrier,RORO or 40HQ container
