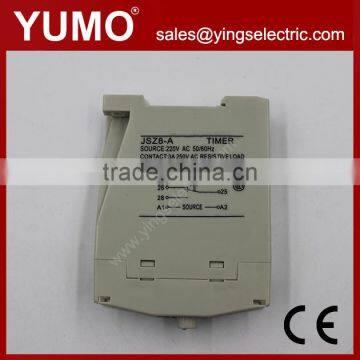

JSZ8 JSZ8-02A JSZ8-A time relay AC220V,timer relay
- 10000 Piece / Pieces per Month
- Shanghai Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
JSZ8 JSZ8-03 JSZ8-03X JSZ8-X time relay AC220V,timer relay
-
LAY5-NBOX 4hold YUMO push button control box
-
LAY4-BG33YUMO push button switch LH and RH 2 position with key
-
2 position long handle selector push button switch LAY4-BJ41
-
LAY4-BV64 electrical push button switch with LED indicator light
-
Push button switch LAY4-BW3361 24V GREEN
Product Details
Place of Origin | Zhejiang, China | Brand Name | YUMO | |
Model Number | JSZ8-02A | Theory | Time Relay | |
Usage | General Purpose | Size | Miniature | |
Protect Feature | Sealed | Contact Load | Low Power |
Product Description
JSZ8 JSZ8-02 JSZ8-02C JSZ8-C time relay AC220V,timer relay
Relay type | JSZ8 | ||
Voltage | DC12~48V, AC12V~380V | ||
Delay range | 01, 02, 03, 04, 05 | ||
Operating type | A: On delay 2C C: Instant F: Off delay K: Off delay R: Circle delay G: Delay V: Wide range | ||
Relay type | Y: Star delta delay X: Thyristor output | ||
Specification | |||
Voltage | AC/DC12~48V, AC24V~380V 50Hz/60Hz | ||
Power Expend | DC1.0W, AC1.0VA | ||
Control Output | 5A 220VAC | ||
Insulation Resistance | DC500V,100mΩ | ||
Dielectric Strength | BCC1500VAC, BOC1000VAC | ||
Operating Temperature | -10°C~50°C | ||
Humidity | 35%~85% | ||
Life | Mech:106,Elec:105 | ||
Weight | ≈100g | ||
Time Range | |||
ASZ8-01 | 0.1-1S/1M | ||
ASZ8-02 | 0.5-5S/5M | ||
ASZ8-03 | 1.0-10S/10M | ||
ASZ8-04 | 3.0-30S/30M | ||
ASZ8-05 | 6.0-60S/60M |
