Product Details
| Place of Origin | Zhejiang, China | Brand Name | YUMO | |
| Model Number | Z94-F | Theory | Counter | |
| Usage | Industrial | Type | Mini |
Product Description

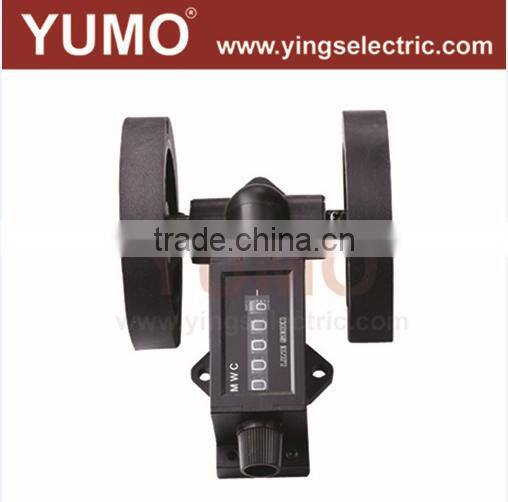

Z94-F meter counter Mechanical rotation counter
Specification:
Z94-F roll-type counter is designed according to need of user.It's a kind of counter which is used for measuring length and various kinds of mechanical drive.It usually used for recoring length in spinning,weaving,printing.
1. This counter is five-digit number counting 0-9999,9,when record length of 1 meter or 1 yard,the rolling whell turn around three times,the digit in counter show 1,so on and so fouth and carry while ten,and it can count conversely.
2. This counter is equiped with zero-reset,mechanism ,and the zero-reset is adopted with pressure,when having finished pressing,the number are all 0,but pressure is enough,the begin the count in second stage.
Ability:
The counter changes number nearly,counts exactly,show of number is clear,working on the temperature of -20 between 60.it remains normal counting.
| Model | Z94-F |
| Counting range | 0-9999.9 9999.9-0 |
| Counting rate | 200 counts per minute |
| Transmission ratio | 1:3 |
| Reset mode | Pressing type |
| Dimensions | 158×106×106mm |
| Installation size | 60×52mm |
S J Z94-F meter counter Mechanical rotation counter Z94-F meter counter Mechanical rotation counter Z94-F meter counter Mechanical rotation counter Z94-F meter counter Mechanical rotation counter
