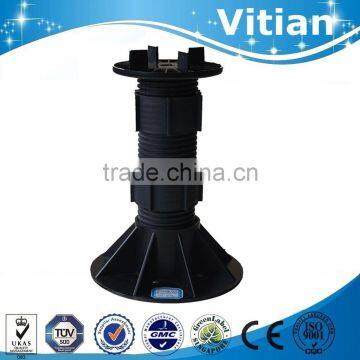

steel raised floor accessories plastic support for computer room

Adjustable plastic pedestals is a new kind of building material,plastic pedestals material is high density

polypropylene.Feature:high strength,antiaging,long using life,insulated,weather resistance.plastic pedestal

widely used for construction project and industry area,can work out problems for special construction project

and maintenance,multi-functional pedestal design can be understructure system for waterscape,fountain

and marble.

Characteristics


  steel raised floor accessories plastic support for computer room

Detailed Product Sketch:

Advantages And Features:

Vitian adjustable plastic paving & decking supports for materials such as stones, tiles, timbers, decking, solar

panels,wpc boards, utility ducts, pipes in the areas of roof terraces, garden terraces, hotels,water features

swimming pools and so on.

1. Materials with high strength,light quality,good durability.

2. Exact height control , assembly line production, if the stone material surface is rugged, can be adjusted

    by the screw and gasket , error correction at any time, high precision, low impact factor.

3. The action of shim can make stone seam neat and more beautiful.

4. Easy maintenance,convenient installation , speed up the construction progress effectively.

5. Short construction period,saving lots of manpower and material resource.

Understructure System:

Quality Control:

Vitian always takes the quality as life.The products are required to be multiple inspected during material purchasing,

production,package,transportation and installation.The inhouse testing lab gives the fast feedback in new products

development and mass production and assure all passes to various testing both international and national.The ISO

Quality Management System enables Vitian an outstanding quality in both production and service.

Raised access floor installation:

• Cleaning the ground.
• Observe the layout of room,install infrared paralled scanner ,mark paralled line on half waist of

          wall, then find lowest and highest point, caculate average value from ground to floor surface

          (this average value equals to owner's required installation height),caculate and adjust the

          pedestal height.

• Choose a corner as start point ,find a parallel on wall, tie two paralleled wax wire 595mm from

         wall, the wax wires are hard to brake and extend ,two wires must be vertically distributed.

         When pulling the paralleled line, screw the four pedestals. After, confirming the height and

         placing the first floor, stringer and pedestals must be fix with screws ,use level bar to adjust

         floor.At last ,lock nuts on the pedestals.

• When pulling the paralleled line, screw the four pedestals. After, confirming the height and

         placing the first floor, stringer and pedestals must be fix with screws ,use level bar to adjust

         floor.At last ,lock nuts on the pedestals.

• When the first floor is adjusted paralleled,vertically place two lines of floors in the direction

         of wax lines. Note: black glued edges between floors must be aligned and straight .

• After vertically placing two rows of floors ,find a direction ,(can not be vertically placed).
• Paralleteled place row by till the last row. Note:each edge should remain one row for final

         cutting and placing ,When paving ,floors can not be treaded which may affect flatness.

• After placing last row ,iron angels in each corner should be firstly fixed ,then cut all-round floor.

         Noted:iron angle should be paralleled to install floor, backing if iron angle should possess a

         support (flitch or angle bar).

• After fixing iron angle ,perecisely meansure the size of the floor ,then cut and place it. If need
• placing plug ,use cutting machine to open holes as peractual dimension.
  After placing floor, check on time ,adjust the parts which are not fat. Finally fill in gap when

         cutting with glass cement.

• If the temperature difference between day and night at construction site is big.(eg,high altiude ,

         temperate area or arctic area),all the edges should remain 3mm gap.

Jiangsu Vitian Building Material Co., Ltd, located in Changzhou City, professionally engaged in production of top

grade anti-static access floors, OA intelligent raised floors, low-profile network, calcium sulfate floors, airflow

perforated panels, pedestals and other accessories.

 “Vitian” Brand access floor product has passed through authentications of 3C, CE certificates, RoHS Testing and

ISO Quality System early or late, and it’s awarded as Green Label and many patents by government. Our products

are up to American CISCA standard, British MOB standard and Japan JAFA standard. Currently, the annual

production of raised floor is 2,000,000 square meters.

We are the first manufacturer produce the plastic pedestal for stone, marble, ceramic and WPC panels in China

and successfully win the patent from government. Our technical team keep researching and developing the

pedestal upgrading to meet different using environments.
