Modbus Rtu M2m Gprs Remoter Terminal Unit Rtu M3G6 Gsm Gprs Data Logger

Colour box Package
Packing contents:M3D6 RTU,POWER ADAPTER,GSM ANTENNA,RS232 CABLE,TERMINAL BLOCK.

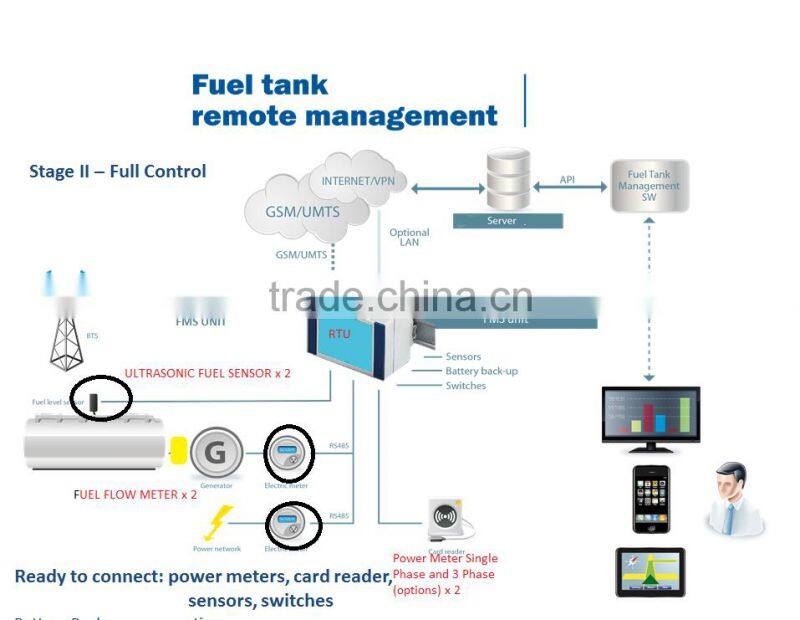

HIT-M3G6 gsm gprs remote terminal unit rtu fuel tank monitoring system

Start Cooperation

Contact: Sandman

Whatsapp:+86 15814627539

Skype : abby_atintergroup

Product Description

HIT-RTU series products are the wireless remote control terminal developed by Shenzhen
HiThings Technology Co., Ltd. The internal adopts the STM32 series high-performance ARM
controller chip from the industry-leading STMicroelectronics company and combines the
industrial wireless communication module from Quectel company, RTU has the characteristics of
strong stability, high reliability, real-time, and wide application. It is a new generation of remote
monitoring and control terminal combine the telemetry, telecontrol, telecommunication,
remote-adjust function with RS232,RS485 communication function.
HIT-RTU wireless remote control terminal series products are the high-performance
monitoring and control device which integrates analog signal acquisition, digital signal acquisition,
relay control output and wireless data communication function. Can be directly connected to the
standard sensors output analog signals ,various level signals, dry contacts, pulse signals, etc. Can
be used as the master station of industrial Modbus-RTU protocol to connect the various
instrumentation of Modbus-RTU protocol(customized).It's the best way for the small-scale
process signal to implement wireless monitoring and control.

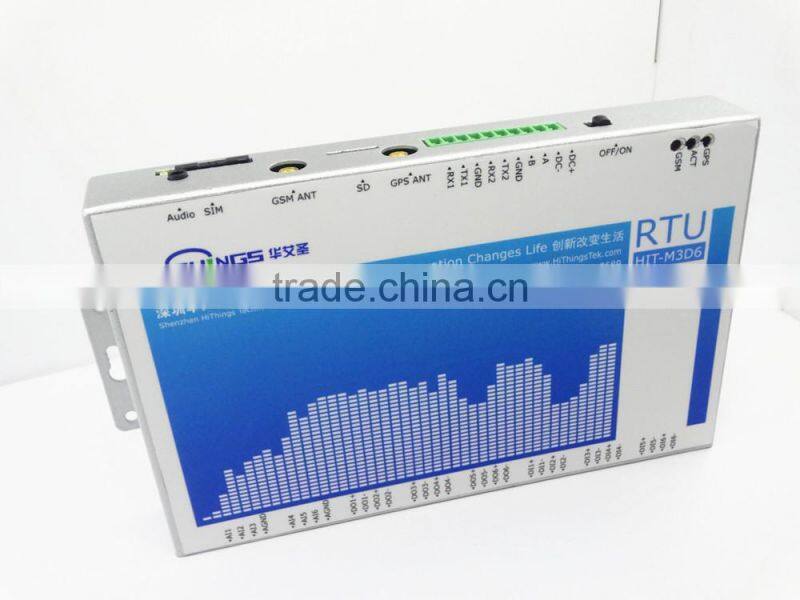

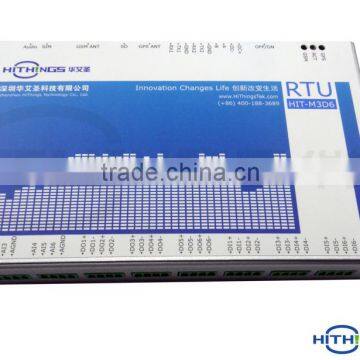

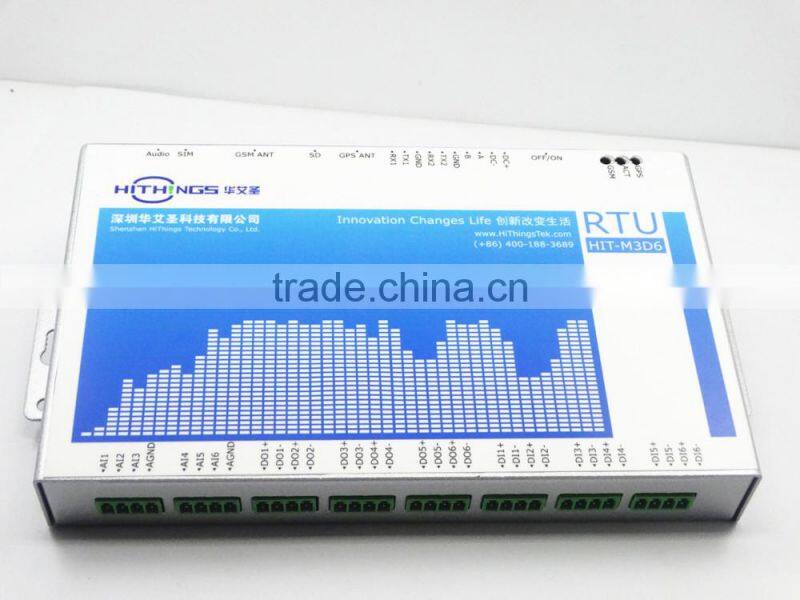

Product Picture

Function

GSM/GPRS/CDMA communication function

Serial port communication function

Analog input acquisition function

Digital input acquisition function

Digital output functions

Data storage function

SD card access data function

Real-time clock function

Low power consumption function

GPS function (option: internal gps module)

Power management function

LCD display and touch input function(option:Serial port expansion peripheral)

WIFI function(option:Serial port expansion peripheral)

Lora communication function(option:Serial port expansion peripheral)

ZigBee communication function(option:Serial port expansion peripheral)

Performance Parameter

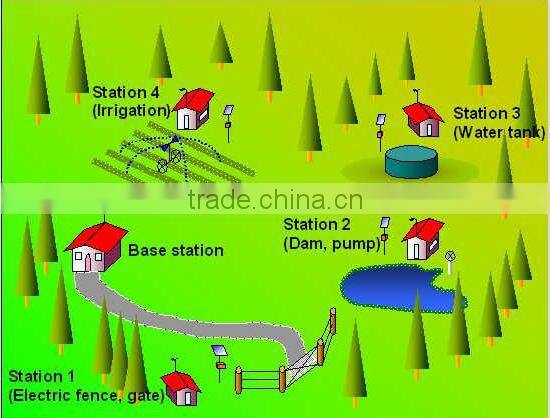

Applications

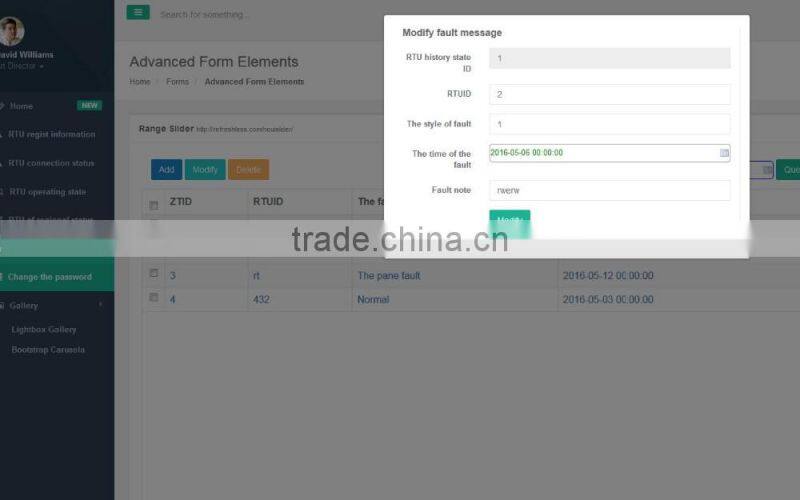

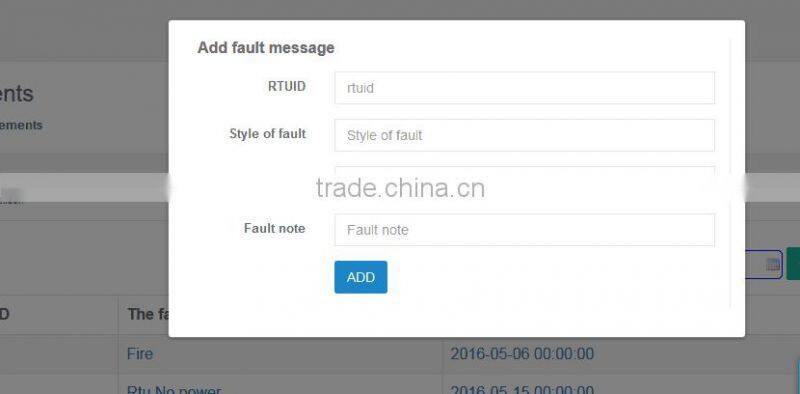

Web platform
