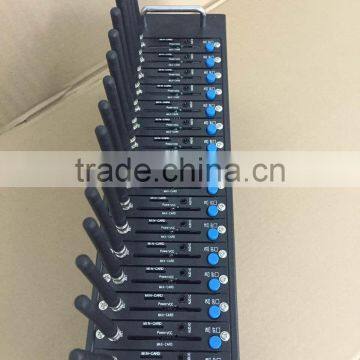

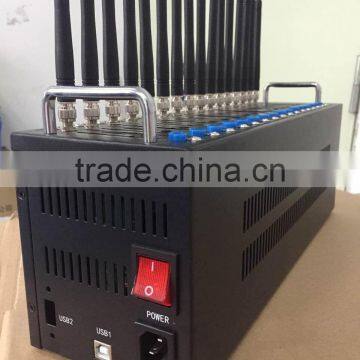

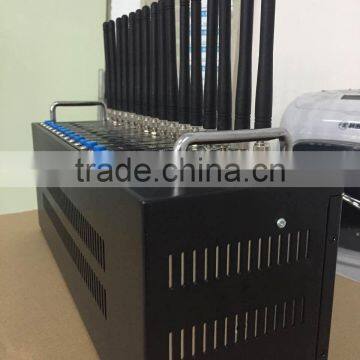

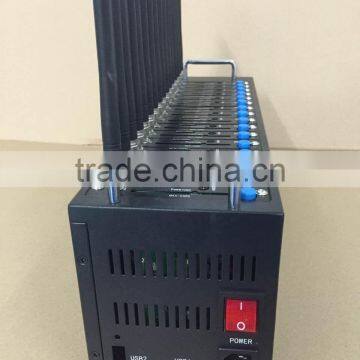

Quad Band Sms Gateway 16 Channel Gsm Sms Modem, Mc35 Module Bulk Message Sender

Key Features

♦Just like 32 single-channel equipments work at the same time

♦Insert 32 SIM cards(big or small)

♦Connection with the computer through a data line be integrated with Serial ports

♦Each channel with separate power switch

♦Each individual module be demolished
♦Industrial chassis, elegant shell
♦GSM frequency: 850/900/1800/1900 MHz
♦32 x SIM card(big/small) slots
♦Wireless access to internet
♦Comply with GSM phase2 standard
♦Dual-band/Quad-band(optional)
♦RS-232/USB/RJ45 interface(optional)
♦32 SIM Card supported (Big/Small)
♦Optional data, voice function
♦Send and receive English SMS in bulk

  gsm modem with external antenna

Basic Features

♦ Asynchronous, transparent or non-transparent, to a maximum 14400 bits/s

♦ Baud Rate : 300-115200 bits / s

♦Automatic baud rate: from 2400 to 19200 bits / s

♦Fax support three

♦Switched voice and fax

♦V.42, V.42bis
♦GPRS compatible
♦WAP compatible

♦SMA Antenna Interface
♦SIM Card Outlet
♦Power connector
♦RS-232, the Mini-DB-9 connector
♦AT command control ( GSM 07.07 and 07.05)

  gsm modem with external antenna

Application

♦ Large shopping malls, supermarkets

♦ Professional market, large wholesalers

♦ Large hotels,large-scale entertainment

♦ Large agencies

♦ Transport, logistics industry

♦ Large enterprises, and institutions

♦ Large hospitals, large bookstore

♦ Newspaper, television and radio stations

♦ Oil Company ( other chain business model)

♦ Government agencies or large township

  gsm modem with external antenna

Hardware Feature

♦upport dual band:900/1800 MHz or quad-band GSM: 850/900/ 1800/1900 MHz

♦ Meet the ETSI GSM 2 + standards

♦ Class 4 ( 2W @ 900 MHz) Class 5 ( 1W @ 1800 MHz)

♦5 -24 VDC power supply (which be directly connected to the nickel- metal hydride or lithium batteries)

♦Operating Temperature: -20 ° C - + 55 ° C

♦Storage temperature: -25 ° C - + 70 ° C

♦Size: standard 1U chassis

  gsm modem with external antenna

Supported operating systems

-Windows 7 (Home, Premium, Pro, Ultimate, Enterprise)

-Windows Vista (Home, Business, Ultimate, Enterprise)

-Windows XP (Pro and Home)

-Windows Server 2003 (original and R2)

-Windows 2000 (Server and Pro)
