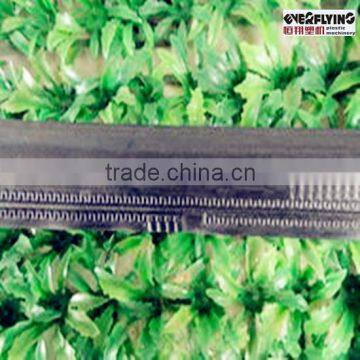

China drip irrigation system for agriculture labyrinth type drip irrigation belt machine

FOB Price

USD $16,000 - $16,500 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Pipe
Plastic Processed	PE	Screw Design	Single-screw
Automatic Grade	full-auto	Place of Origin	Shandong, China
Brand Name	Hengxiang	Model Number	SM DGD 50/50,SM DGD 55/55
Voltage	220v,380v	Certification	ISO9001
After-sales Service Provided	Overseas service center available

v conveyor belt machine
1. good output
2. high efficiency
3. simple operation

Product Description

Main technical paremeters

Models		SM DGD 50/50	SM DGD 55/55
Models		SJ-50/30×2	SJ-55/30×2
Screw diameter		Φ50	Φ55
L/D		30	30
Rotating speed		90R/Min	100R/Min
Total heating power		About 18kw	About 19.5kw
Central height		810mm	400mm
Main motor		15kw (4 grade)×2 three phase asynchronous motor + frequency control	15kw (6 grade)×2 three phase asynchronous motor + frequency control
Gear box		GB-146×2	GB-173×2
Die head		Φ55 double-layer	Φ55 double-layer
Traction device	Traction mode	Four-roller type
	Traction motor	three phase asynchronous motor
	Speed control mode	Frequency control
	Motor power	0.75kw	1.1kw
	Reducer model	WPA60
	Max. traction speed	40m/min	55m/min
Mould wheel	Motor	0.75KW	1.1KW
	Motor ratio	60:1	40:1
	Dia. of wheel	Φ477.2 or Φ451	Φ477.2
Emitter space		150, 200, 250, 300, 400, 500, 600 mm etc (customer selected)
Flow rate		1.2L/H---4.5L /H (customer selected)
Coiling device	Coiling mode	Two-position	Three-position
	Motor	Torque motor 6/6N.M
	Central height	112mm
Electrical cabinet		11 sections temperature control	11 sections temperature control
		Frequency converter
Line speed		30m/min ×2	45m/min×2
