agriculture save water melt-flow type drip irrigation tape Inlaid Cylindrical Emitter Drip Irrigation Pipe Plant

FOB Price

US$ 50,000 - 55,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Pipe
Plastic Processed	PE	Screw Design	Single-screw
Place of Origin	Shandong, China	Brand Name	Hengxiang
After-sales Service Provided	Overseas service center available

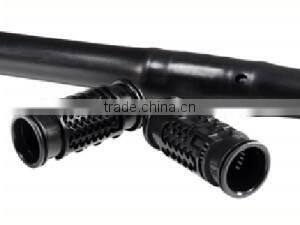

1. Column emitter
2. automatic transportation device
3. vaccum sizing device
4. speed: 30-50m/min
5. thickness:0.6 mm

Device structure

Characteristics:

The production is stable and reliable. The emitter transmits even. The punching position is accurate. The chip can be removed easily.
It adopts PLC control, which is operated conveniently.
According to the production requirement, it can produce products with different specifications after changing the mold, conveying and punching parts.
Electrical components adopt domestic famous brand. The servo system adopts imported components.
Matched with meters alarming device.
It also can be used to produce common dripping pipes.

Technical parameters:

Dia. of the drip irrigation pipe	Φ6, Φ12, Φ16, Φ20
Thickness of the drip irrigation pipe	0.4-1.2mm
Screw dia.	Φ60mm
L/D	30:1
Motor power of the extruder	22KW
Speed of the production line	20-40 m/min
Conveying distance between emitters	200-2,000mm
Conveying speed of emitters	120/min
Punching speed	60-90/min
Total power of the machine set	42 kw
