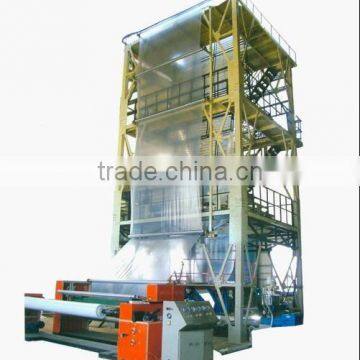

The Professional Manufacturer For Greenhouse Film Equipment
- Qingdao Port
- T/T
You May Like
-
The Professional Manufacturer For Making Multilayer Packing Film Blowing Machine Set
-
Hengxiang Hot contraction membrane machine
-
Good Quality Plastic EverflyingPackaging film blowing candy wrapping machine
-
High Speed Good Quality Everflying two colors mulching film machine
-
Best seller!!!Heat shrink warpping machine for bottle
-
Excellent Quality Heat shrink warpping machine for bottle
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | No | Place of Origin | Shandong, China | |
| Brand Name | Hengxiang | Model Number | 3FM2800-I/3FM3500-I/3FM5000-IV/3FM5000-V/3FM5500-I/3FM5500-II | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
1.raw material:LDPE,LLDPE,EVA2.air ring:double-outlet
3.thickness:0.08-0.12
iling form:two position
Structural characteristics of multilayer machine unit:
Multilayer co-extruding agricultural film, geomembrane blowing machine unit is developed and designed on the basis of absorbing western advanced key technology. It is applicable for processing LLDPE, LDPE, EVA, mPE, HDPE materials. The structure is reasonable and the property is stable. It possesses properties of good plasticizing, high output, low energy consumption, and clear layers splitting. It is ideal equipment for producing greenhouse film and geomembrane with multifunction of high strength, ageing resistance, no water drop, transmitting, and heat preservation.
Technical parameter of multiple layers machine
Model | 3FM2800-I | 3FM3500-I | 3FM5000-IV | 3FM5000-V | 3FM5500-I | 3FM5500-II |
Max. width | 10,000 | 12,000 | 14,000 | 16,000 | 18,000 | 20,000 |
Thickness | 0.08~0.12 | |||||
Composed layers | 3 | |||||
Applicable raw material | LDPE, LLDPE, EVA | |||||
Max. output | 600 | 1,000 | 1,500 | 1,800 | 2,000 | 2,300 |
Extruder | 90/30×2 120/25×1 | 120/25×2 150/30×1 | 150/30×3 | 150/30×2 180/30×1 | 180/30×3 | 180/30×3 |
Main driving power | 90×2+110 | 110×2+200 | 250×3 | 250×2+280 | 280×3 | 315×3 |
Dia of neckling die | 1,400 | 1,600 | 1,800 | 2,000 | 2,200 | 2,400 |
Outer dia. of air ring | 3,600 | 3,600 | Double tuyeres | Double tuyeres | Double tuyeres | Double tuyeres |
Haul-off height | 19,000 | 21,000 | 24,000 | 24,000 | 27,000 | 32,000 |
Wind-up speed | 3~30 | |||||
Edge folding form | Inserting plate | |||||
Wind-up method | Two position center wind-up machine | |||||
Total power of the unit | 750 | 950 | 1,400 | 1,550 | 1,650 | 1,900 |
Overall dimension | 16×9×20 | 18×12×21 | 19×11×25 | 20×13×25 | 20×15×27 | 22×22×33 |
