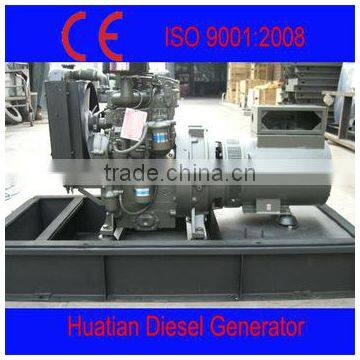

10KVA Diesel Generator 2100D Diesel Engine with Stamford Alternator

FOB Price

USD $1 - $10,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

10KVA Diesel Generator 2100D Diesel Engine with Stamford Alternator

-------------------Diesel Generator Main Specification----------------

1. Specification of genset
Gensets model				15GF
Prime power				15KW
Rated Voltage				400/230V
Rated frequency(HZ)				50
Rated Speed				1500rpm
Power Factor				0.8(lagging)
Dimensions(mm) (L×W×H)				1730x790x1310
Net Weight(kg)				450
2. Specification of diesel engine
Engine brand				Weifang Huatian
Engine model				2100D
Number of cylinders				2
Cylinder arrangement				Vertical in-line
Cycle				Four stroke
Type of combustion chamber				Swirl chamber type
Bore×Stroke (mm×mm)				100 x 115
Displacement (Liter)				1.806
Speed Governor				Mechanical
Cooling System				Forced Water Cooling Cycle
Specific fuel consumption (g/kwh)				≤265.2
Specific oil consumption (g/kwh)				≤2.04
Starting Method				DC12V electrical starting
3. Specification of alternator
Alternator brand				Chinese Stamford
Number of Phase				3
Connecting Type				3 Phase and 4 Wires
Number of Bearing				1
Protection Grade				IP21
Altitude				≤1000m
Exciter Type				Brush, salient-pole rotating field, self excitation with third-harmanic, 100% Copper winding wire
Insulation Class				B
4. Specification of control Panel
The control panel is general control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The general control panel is composed of circuit breakers, ammeter, voltmeter, frequency tables, water temperature, oil pressure gauge, oil temperature gauge, tachometer, timer and current transformer and so on, can complete the diesel generator set start and stop, power supply and power control function, and the generator set running for measurement, display, overload alarm and protection
