Electric vertical sump pump
- Xingang/Shanghai
- T/T Credit Card PayPal
You May Like
-
Cantilever sump pump for mining
-
Vertical sump pit pump for sewage treatment
-
AZL Vertical submersible suction agitator sump pump
-
Centrifugal Italian Semi Open Impeller Submersible Slurry Pump
-
Non-Clog Energy-Saving Hand Deep Water Well Electric Water Pump
-
Vertical Waste Water Basement Submersible Pompe De Puisard
Product Details
| Place of Origin | Hebei, China | Brand Name | An Pump | |
| Model Number | BP/AZL vertical sump pump | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Other, sewage/sludge/mining/coal/building material | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, Diesel, electric or diesel | Pressure | High Pressure | |
| Application | Sewage |
Product Description
Electric vertical sump pump
Electric vertical sump pump application
This pump is suitable for metallurgy, mining, coal, power plants, building materials and general industrial applications that convey abrasive and high-concentration slurry.
This pump has been used very successfully for ash removal in power plants.
In the mine site pump station
Drainage slurry working condition
Electric vertical sump pump feature
Size: 40 - 300 mm
Flow: 7.56 - 1490 m3/hr
Head: 4 - 55 m
Speed: 300 - 2200 rpm
The BP series pump is single stage, vertical cantilever, single and double suction pump. Liquid ends construction is the same white iron as in the other models. Bearing are grease lucricated.corrosion resistance Sump pump.
The BPR is constructed similar to BP, except all the parts in contact with the pumpage are rubber coated, The rubber coating is used for corrosive applications.
Electric vertical sump pump structure
1. Material construction optional
BP: abrasion resisting metal construction
BPR: anti-corrosive rubber construction
2. Do not need any shaft seal or sealing water
Also worked well under insufficient suction duty.
3. The type with “L” is the pump with extension shaft
It suitable to deep condition. It has guid bearing. So it more stable and used more wide. However the flushing water is necessary on the guide bearing part.
4. The agitator is available
We can assembly the agitator as requirements.
Electric vertical sump pump performance
Type | Material | Flow | Head | Max Power (kw) |
40C-BP/R | Metal/Rubber | 7.2-39.6 | 3.9-27.4 | 15 |
65D-BP/R | Metal/Rubber | 19.08-102.6 | 5-31.1 | 30 |
100E-BP/R | Metal/Rubber | 41.5-259.2 | 5.1-37.2 | 70 |
150F-BP/R | Metal/Rubber | 115.2-576 | 6.7-35.7 | 110 |
200F-BP/R | Metal/Rubber | 180-734.4 | 7.1-28.2 | 110 |
250S-BP/R | Metal/Rubber | 363-1188 | 7-36 | 200 |
300S-BP/R | Metal/Rubber | 385-1492 | 7.8-55 | 250 |
Electric vertical sump pump curve

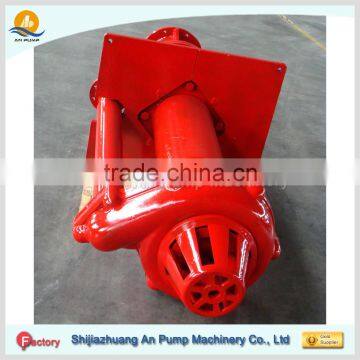

Electric vertical sump pump pictures
Electric vertical sump pump packing
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An Pump Machinery company has its own Kingda type selection & design, research and development team, assure to provide you efficient, energy saving slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps type design, use and maintenance program.
