Home > Products > Sea Water Pump > Marine Stainless Steel Sea Water Pump

Marine Stainless Steel Sea Water Pump

FOB Price

USD $560 - $8,000 / Unit

1 Unit(Min.Order)

Port Tianjin/Shanghai/Guangzhou
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Brand Name	An Pump
Model Number	QS Stainless Steel Sea Water Pump	Theory	Centrifugal Pump
Structure	Single-stage Pump	Usage	Water
Power	Electric	Standard or Nonstandard	Standard
Fuel	Other, Electric or Diesel	Pressure	High Pressure
Application	Other, sea water desalination,Cooling and air conditioning system

Product Description

Marine Stainless Steel Sea Water Pump

Pump Application:

Marine Stainless Steel Sea Water Pump Application

Industry	Plumbing Applications
General water supply	Circulation of HVAC building systems , water booster service , boiler feed , general circulation service and more .
Agriculture / Food / Beverage	Irrigation , water supply , food processing , beverage processing , fertilizers .
Manufacturing	Pulp and paper fans , plastic & rubber , metal & steel , pharmaceutical , paper mills , air wash , marine ballast service .
Fire / Disaster Relief	Fire pumps , fire protection , flood control , disaster relief , federal / military .
Utilities : Water / Wastewater	Power Generation stations , dewatering , desalination , energy recovery turbines
Chemical / Mining	Chemical plants , refineries , petroleum distribution , coal sites , ethylene glycol pumping .

Product Description

Marine Stainless Steel Sea Water Pump Specification

Material:

1.Pump casing made of gray cast iron, ductile iron or cast steel.

2.Impeller made of gray cast iron, silicon brass or stainless steel.

3.Spindle in stainless steel or high carbon steel.

4.Other materials can be used upon requirement.

Feature:

1,Capacity: 5280~84000m3/h,
2,Head: 12~120m
3,Industrial pump
4,clean water pump

Technological Advantages

1. Bearing spacing between both ends is short, pump running stable, low vibration noise, and can increases the speed of running properly, to adapt to a wider range of performance.
2. Inlet and outlet at the same line, so that the pipeline layout is simple and convenient, beautiful.
3. The rotation of the same rotor can be reversed, reducing the risk of damage caused by the water hammer.
4. Unique design of high temperature, use of intermediate support, thick body, sealed cooling, bearing lubrication, so that the pump can run up to 200 ºC occasions, especially for heating network requirements.
5. Pump can be vertical or horizontal installed according to using conditions, seal can be mechanical seal or packing seal.

Marine Stainless Steel Sea Water Pump Parameter

Model	Flow rate	Head	Speed	Power	Eff	Iimpeller	Weight
(QS)	(m3/h)	(m)	(rpm)	(KW)	(%)	(mm)	(kg)
QS150	110~220	35~84	2900	30~55	67~80	186~250	145~150
QS200	160~351	31~100	2900	37~110	61~85	193~284	219~265
QS250	324~612	8.6~71	1450	22~132	72~86	224~460	405~565
QS300	504~972	8~98	1450	30~300	70~84	225~540	845~660
QS350	745~1663	10~140	1450	55~680	70~88	270~655	760~1580
QS400	900~1620	32~98	980~1480	155~500	71.5~84	510~535	1910
QS500	1150~2450	10.6~108	740~970	110~800	70~89	390~860	2000~4330
QS600	2304~4000	13~80	730~970	185~900	70~91	450~830	2500~4300
QS700	2111~4896	39.5~99.5	740~980	560~1250	52~92	415~850	5800
QS800	3960~7200	23.5~84	600~740	450~1600	77~92	715~990	5100~8300
QS1000	6000~9900	32~52	600~990	1250	79~87	670~695	10000
QS1200	5832~14400	6~95.7	500~745	710~3450	80~90	560~1200	12500~16000

Pump Structure

Marine Stainless Steel Sea Water Pump Constructure

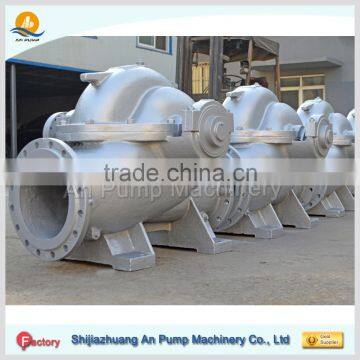

Pump pictures

Marine Stainless Steel Sea Water Pump Picture

Packaging & Shipping

Marine Stainless Steel Sea Water Pump Packing and shipping

Our Services

1. Offer Large capacity sea water pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
