Split case diesel fuel pump for perkins
- 100 Set / Sets per Month
- Tianjin/Shanghai/Guangzhou/Shenzhen
- T/T L/C Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | An Pump | |
| Model Number | QS diesel fuel pump for perkins | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Other, irrigation pump,split case pump,double suction pump | |
| Power | Other, electric or diesel | Standard or Nonstandard | Other, standard,irrigation pump,split case pump,double suction pump | |
| Fuel | Other, electric water pump/diesel water pump | Pressure | Other, high pressure pump,stainless steel pump | |
| Application | Other, agriculture/irrigation/industrial/ |
Product Description

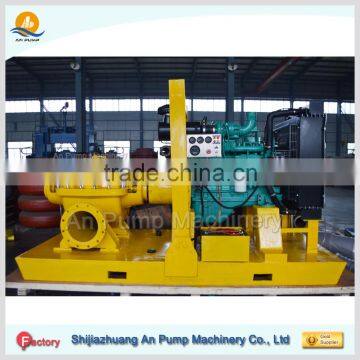

Split case diesel fuel pump for perkins
Split case diesel fuel pump for perkins -- large water pumps
Type QS pumps are single stage, double suction with horizontally split casings.They are suitable for pumping clean water or liquid similar to it in physical and chemical properties at a temperature not exceedding 80 °C ( for common material ) .
The main components of QS,QSH pump are listed as follows:lower half casing , upper half casing , impeller , shaft , double suction sealing , shaft sleeve , bearing housings , and couplings .
Split case diesel fuel pump for perkins features
| 1. Large flow rate |
| 2. Operation stability |
| 3. Double-volute structure |
| 4. Resonable price |
| 5. OEM available |
Split case diesel fuel pump for perkins performance parameters
| Type | Flow(m3/h) | Head(m) | Speed(rpm) | Power(KW) |
| QS150 | 112--220 | 35--84 | 2900 | 30--55 |
| QS200 | 160--351 | 31--100 | 2900 | 37--110 |
| QS250 | 324--612 | 8.6--65.1 | 1450 | 22--132 |
| QS300 | 504--1663 | 8.7--140 | 1450--1470 | 22--680 |
| QS350 | 745--1570 | 10--125 | 1450--1470 | 55--630 |
| QS400 | 900--1620 | 32--85.5 | 980--1480 | 440--500 |
| QS500 | 1150--3800 | 10.6--108 | 740--970 | 110--800 |
| QS600 | 2300--4000 | 13--80 | 730--970 | 145--730 |
| QS700 | 2111--4896 | 39.5--99.5 | 742--980 | 397--1252 |
| QS800 | 3960--6878 | 23--84 | 600--750 | 450--1600 |
| QS1000 | 6600--9900 | 32--52 | 600 | 1250 |
| QS1200 | 5832--14400 | 6--95.7 | 500--745 | 710--3450 |
Split case diesel fuel pump for perkins curve
Split case diesel fuel pump for perkins structure
Split case diesel fuel pump for perkins on site application
Industry | Plumbing Applications |
General water supply | Circulation of HVAC building systems , water booster service , boiler feed , general circulation service and more . |
Agriculture / Food / Beverage | Irrigation , water supply , food processing , beverage processing , fertilizers . |
Manufacturing | Pulp and paper fans , plastic & rubber , metal & steel , pharmaceutical , paper mills , air wash , marine ballast service . |
Fire / Disaster Relief | Fire pumps , fire protection , flood control , disaster relief , federal / military . |
Utilities : Water / Wastewater | Power Generation stations , dewatering , desalination , energy recovery turbines |
Chemical / Mining | Chemical plants , refineries , petroleum distribution , coal sites , ethylene glycol pumping . |
Split case diesel fuel pump for perkins packing and shipping
Our Services
1. Offer Large capacity pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
Our Main Products
Some clients visit our factory
Learn more , please contact us directly.
