Billet/Bloom Stamping type Marking Machine

wooden case

Billet/Bloom Stamping type Marking Machine

Equipment overview

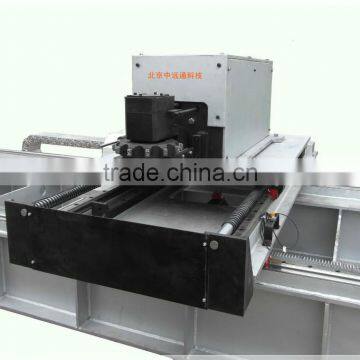

ZYT billet/bloom stamping type marking machine adopts the impact of the cylinder to mark the data code in the end or side of the hot slab, the performance is stable and reliable.

Equipment composition

Constituted by the seven components: body mechanical systems, running gear, sliding bodies, elevator, marking head, electronic control and software operating control.

Equipment type

ZYT-DHJ-S200-D / L D-floor type; L-door beam

System parameter

1. Voltage: Three-phase 380V/50HZ
2. Air pressure: filtered air or nitrogen ≤ 0.6Mpa
3. Equipment Size: According to the site
4. Billet temperature: ≥ 400 ℃
5. Billet section: flatness tolerance <0.5mm, section slope <1 °
6. Height adjustment: according to the actual needs of design (gate beam)
7. Content characters: the digits 0 to 9, English letters
8. Character height: 8 ~ 25mm (optional)
9. Print speed: 1.2 ~ 1.5s / characters
10. Impact frequency: 40 ~ 50 times / min
11. Sliding speed: <0.3s / characters
12. Servo drive: with a high temperature resistant, low speed, high torque motor
13. Turntable speed: <0.3s / characters
14. Sliding accuracy: <0.5mm
15. Landing accuracy: <1mm
16. Print Depth: 1 ~ 3mm
17. Communication: standard industrial Ethernet, CAN open and PROFIBUS variety of communication
18. Gas consumption: ≤ 100N m3 / h
19. Operation Modes: computer / remote / manual operation. switch, operation control system can easily Connection with Level 2 system of users.
20. P L C: SIMENS S7 ~ 300 type
21. Distance from prefix to the billet end: 75mm ~ 100mm
