Home > Products > SHEET & PIPE & PROFILE > CE STANDARD HIGH PERFORMANCE PVC FOAM PLATE PRODUCTION MACHINE
CE STANDARD HIGH PERFORMANCE PVC FOAM PLATE PRODUCTION MACHINE
- Shanghai
- T/T
You May Like
-
CE STANDARD HIGH CAPACITY GOOD PERFORMANCE POLYCARBONATE HOLLOW PROFILE MAKING MACHINE
-
PC HOLLOW WAVING ROOF SHEET MAKING MACHINERY, POLYCARBONATE ROOF SHEET EXTRUDER LINE
-
COLORFUL MULTILAYER PP HOLLOW PROFILE PRODUCTION LINE, POLYPROPYLENE HOLLOW SHEET PROFILE PRODUCTION LINE
-
COLORFUL MULTILAYER PP CORRUGATED SHEET PRODUCTION LINE, POLYPROPYLENE CORRUGATED PROFILE SHEET PRODUCTION LINE
-
PVC, PE, PP WOOD PLASTIC BOARD PRODUCT MACHINE
-
Most Popular PE Embedded Drip Irrigation Hose Extrusion Line
Product Details
| Condition | New | Product Type | Plastic Sheet | |
| Place of Origin | Shanghai, China | Brand Name | PVC foam plate production machine | |
| Model Number | PVC foam plate production machine | Voltage | 380v | |
| Power(W) | 200kw | Dimension(L*W*H) | 30m*3m*3m | |
| Weight | 20tons | Certification | CE | |
| Warranty | 1year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
PVC Foam Plate Production Machine
I. OVERVIEW OF PVC FOAM SHEET PRODUCTION LINE
1. Technical criteria:
1.1 Material: PVC powder
1.2. Product width: L=1000-2000mm;
1.3. Thickness: δ=2~18mm;
1.4. Max. Output: 500kg/h
2. Electricity
2.1. Designation: 380V/ 3 P/ 50 Hz
2.2. Protective measure: earth
3. Compressed air:
3.1. Effective working pressure: 0.4~0.6Mpa
3.2. Quality: condensing-free, oil-free, dust-free, pre-filtered.
4. Cooling water
4.1. Effective working pressure: 0.2~0.4Mpa
4.2. Water temperature: 10 ~ 25 degree centigrade.
II. SUPPLY SCOPE OF PVC FOAM SHEET PRODUCTION LINE
| Code | Name | Qty. |

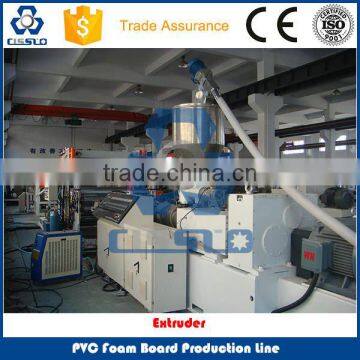

| 1 | SJZ-80/156B TWIN CONICAL SCREW EXTRUDER | 1 SET |

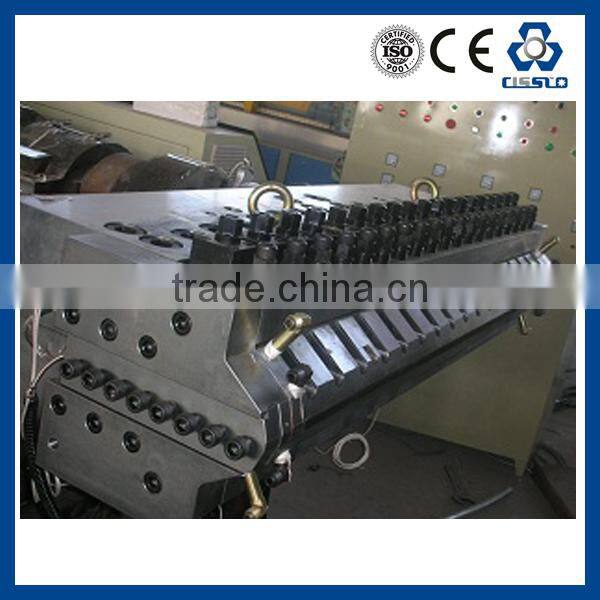

| 2 | EXTRUDING DIE WITH TEMPERATURE CONTROLLER | 1 SET |
| 3 | 3-ROLLERS CALENDER | 1 SET |
| 4 | 3-ROLLERS TEMPERATURE CONTROLLER DEVICE | 1 SET |
| 5 | COOLING BRACKET | 1 SET |
| 6 | EDGE BLADE CUTTER | 1 SET |
| 7 | HAUL-OFF UNIT | 1 SET |

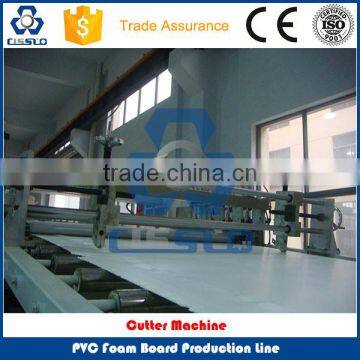

| 8 | SAW CUTTER | 1 SET |
| 9 | STACKER | 1 SET |
| 10 | AUXILIARY EQUIPMENT | 1 SET |

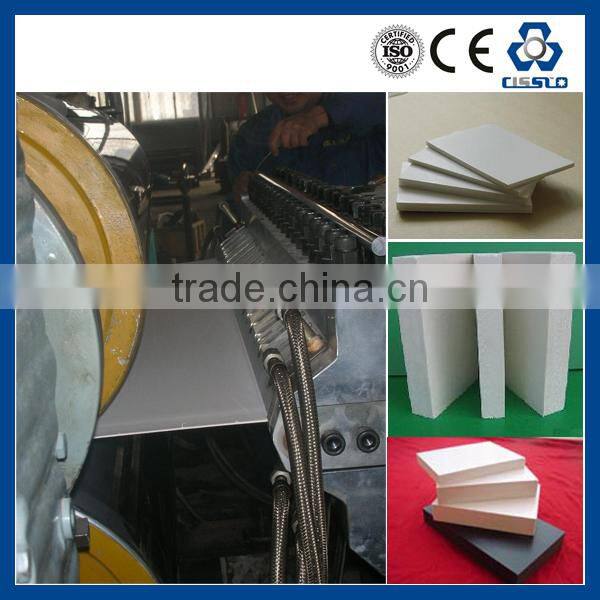

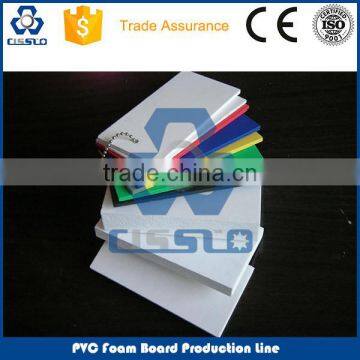

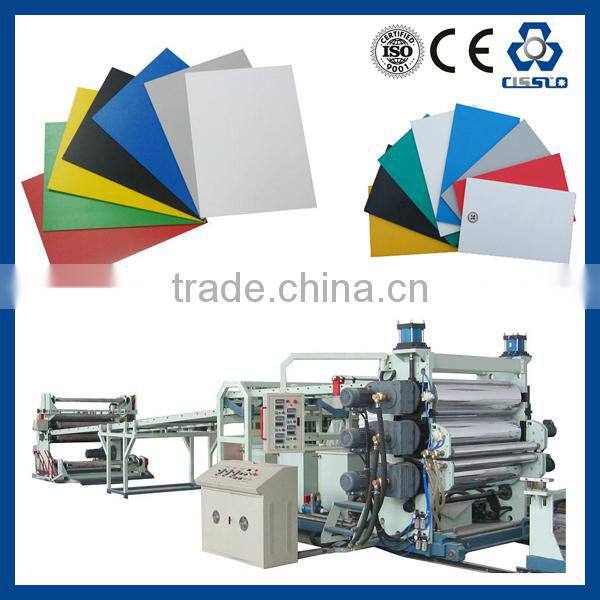

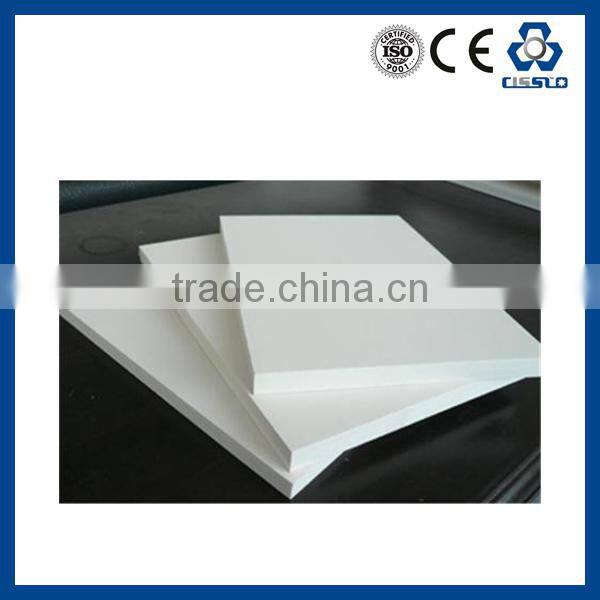

III. PICTURES OF PVC FOAM SHEET PRODUCTION LINE
• We design, engineer and manufacture and customized the extrusion line.
• Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our client’s factory
• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
CissCo Machinery Co., has been engineering and manufacturing a series of EXTRUSION MACHINERY for more than 20 years and has thus acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded by large companies in more than 30 countries.
Comparing with the low price low quality machine, please note our strong advantages:
1. 20 Years Experiences;
2. European Latest Technology;
3. Easy to Operate, Stable Performance, Good Quality Products, Low Production Cost;
4. Quicker Production Speed, Big Output;
5. Good Material and Well-Known Brand Electrical Parts;
6. Beautiful Appearance;
7. Free Training for Technical Process, Formula and Know-How;
8. Full Time and High Level After-Sale Services.
