Plastic bottles recycling production line high quality

PS Foam Food Container Production Machinery With High Quality

II.  Main technical parameters of PS Foam Food Container Production Machinery With High Quality

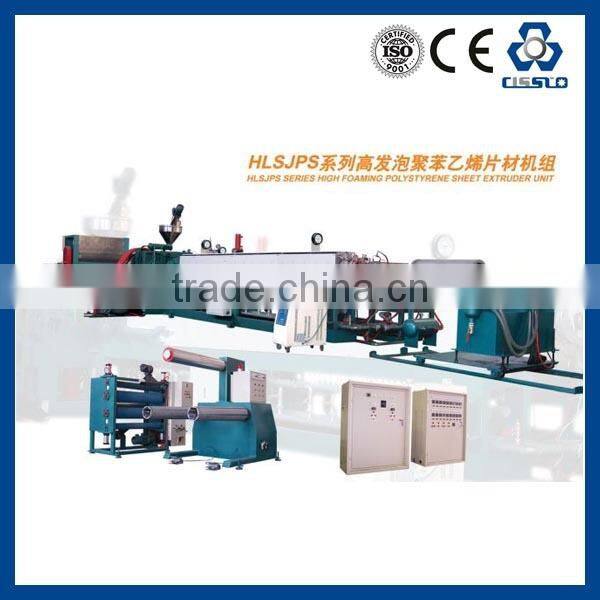

1. HLSJPS-100/130 high foaming polystyrene sheet extruder unit

o    Capacity: 250~310kg/h

o    Sheet thickness: 1.5mm~6mm(adjustable)

o    Expansion rate: 11~30

o    Drawing speed: 5~40m/min

o    Mounted capacity: 250KW

o    Center height:1000mm

o    Mounting size: 33m (L) ×4.5m (W) ×3m (H)

o    Compressed air: 0.4~0.6m3/min 0.7Mpa

o    Cooling water: 13m3/h,≥0.2Mpa

o    Weight:18ton

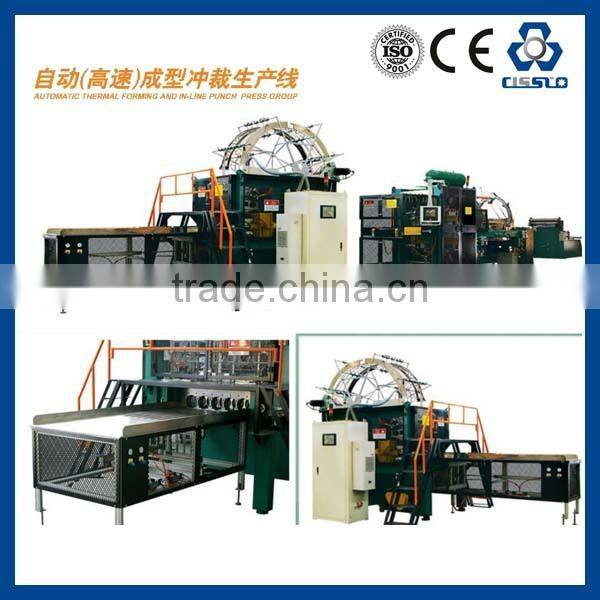

2. HLRCH-1300/1420 Auto Forming and in-line cutting line

o    Forming area(max): 1270mm×1420mm

o    Max forming depth: 127mm

o    Max forming speed: 30 cycles/min

o    Max forming force: 60t

o    Max. trim area: 127mm(W)×500mm(L)

o    Max. Trim speed: 130 cycles/min

o    Mounted capacity: 400KW

o    Mounting size: 20m(L)×4.5m(W)×3.5m(H)

o    Weight: 25tons

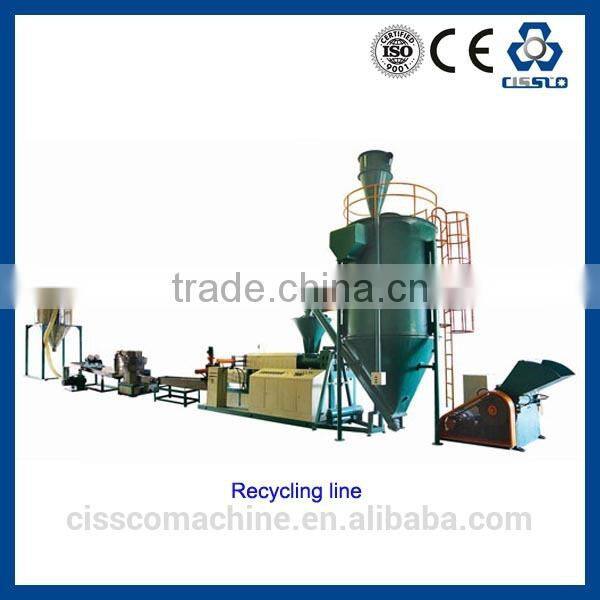

3. HLFS-130 Die-cutting recycle machine group

o    Capacity: 100~180kg/h

o    L/D of first screw: 18.5/1; Second L/D:11/1;

o    Mounted capacity: 90KW;

o    Pressure of cooling water: ≥0.2Mpa

o    Volume of cooling water: 2T/H

o    Mounting size: 17m×3.5m×5.5m;

o    Weight: 8T

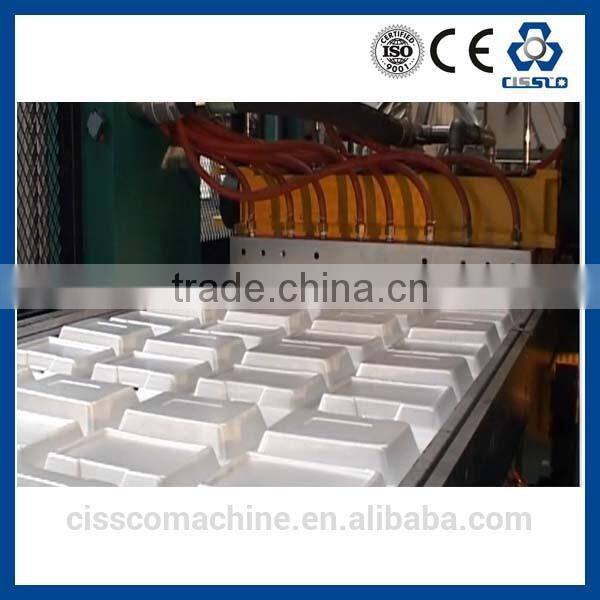

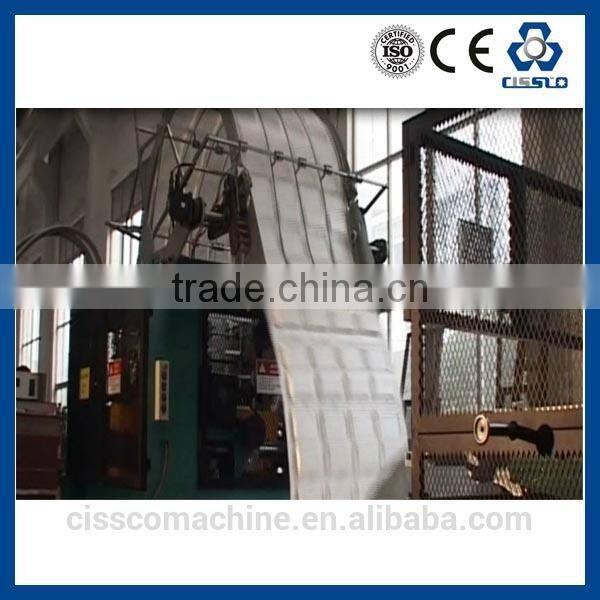

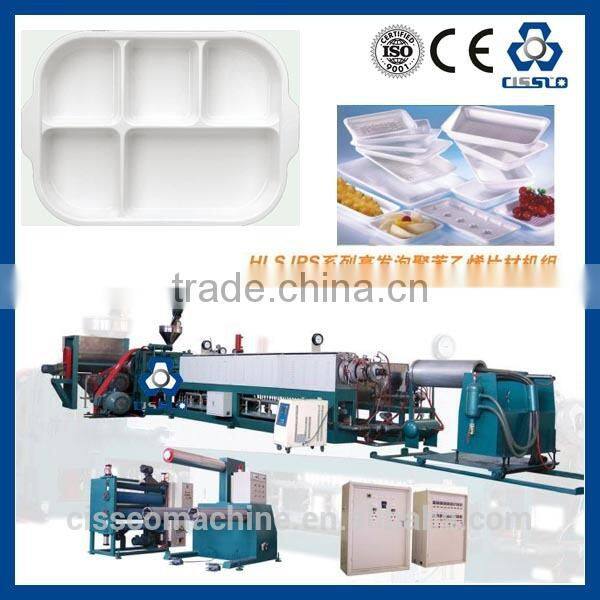

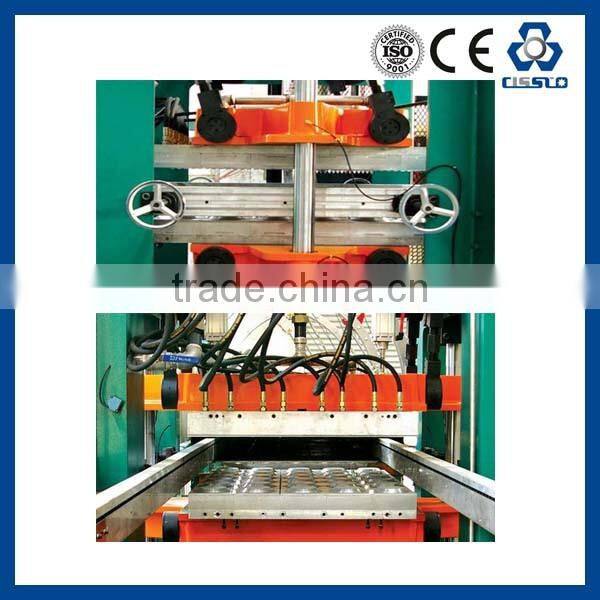

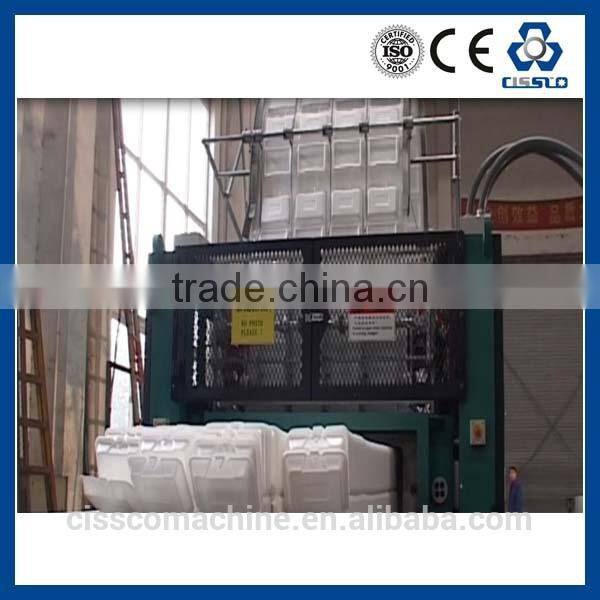

III.  Pictures of PS Foam Food Container Production Machinery With High Quality

IV. Contact Me

Best regards

Julia Taranets

CissCo Machinery Co., Ltd.

Add.: 30B, No. 58 New Jinqiao Road, Pudong, Shanghai, China
Tel:    +86 21 38726398 / 99
Fax:   +86 21 38726390
Mob.: +86 18017427617
skype: cisscomachine03

Best regards

About Us: CISSCO MACHINERY CO., LTD

 Cissco Machinery Co., has been engineering and manufacturing a series of EXTRUSION MACHINERY for more than 10 years and has thus acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded by large companies in more than 30 countries.

 Our Service

 • We design, engineer and manufacture and customized the extrusion line.

 • Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.

• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our clients factory
• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
