Glue Coating Pet Tapes Coating Machine

BOPP FILM COATING PLANT

1. MAIN TECHNICAL PARAMETERS OF PVC FILM COATING PLANT

1.1.       Suitable base material: PE film;

1.2.       Valid width: 1600mm;

1.3.       Coating type: Anilox roller directly coating, anilox roller reverse kiss coating

1.4.       Mechanical speed: 60-120m/min

1.5.       Heating type: Electrical heating

1.6.       Mechanical power: About 65Kw

1.7.       Heating power: About 300Kw

1.8.       Overall size: 31580mm (L) * 3800mm (W) * 5423mm (H)

1.9.       Overall weight: About 40 tons

2. SCOPE OF DELIVERY OF  FILM COATING MACHINE

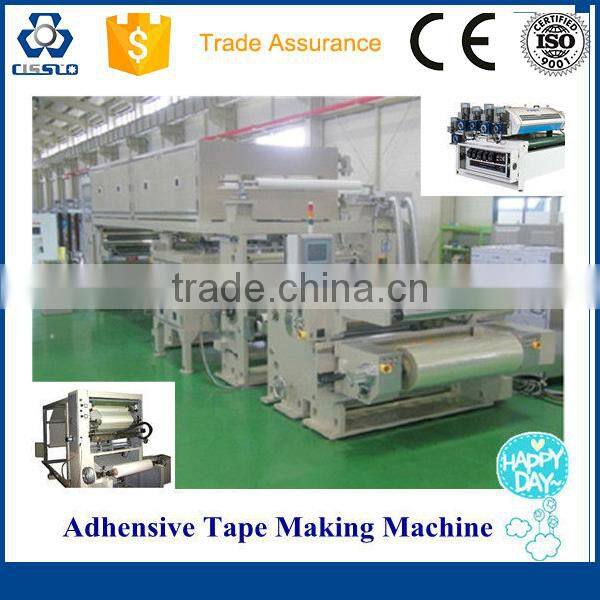

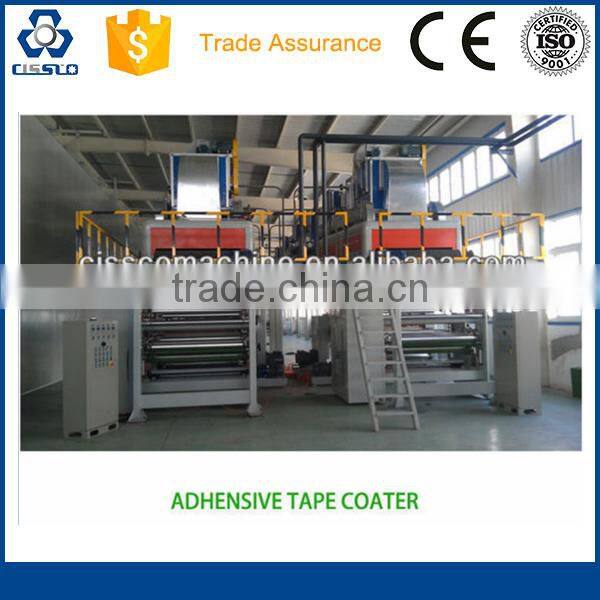

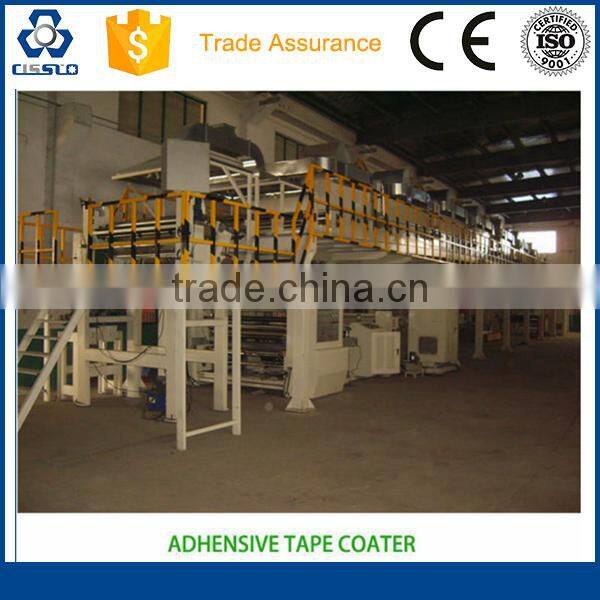

3. PHOTO SHOW   FILM COATING MACHINE

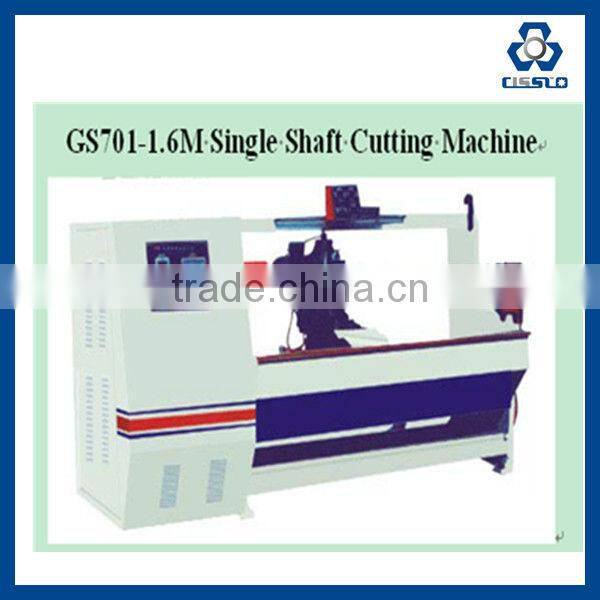

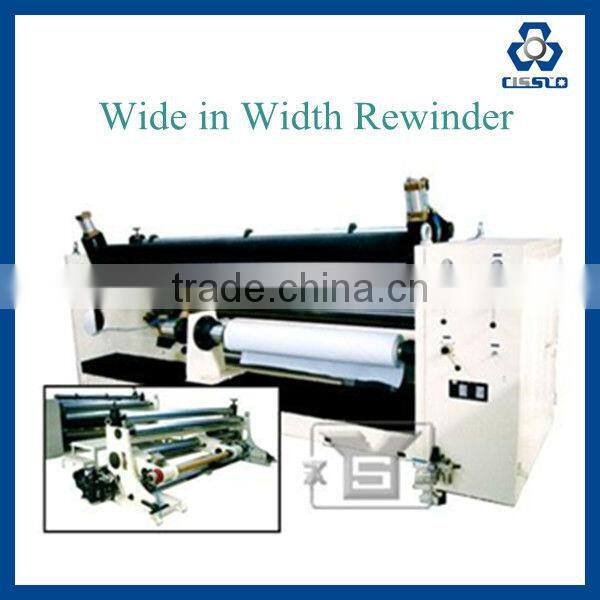

4. OTHER EQUIPMENTS : AUTOMATIC CUTTING MACHINE/REWINDER bopp tape slitting

 Application : Suitable for cutting double side tape, kraft paper, foam tape, PET,PVC and cloth

 Features:

• Cutting widht can be freely set up with high cutting precision
• Servo motor drives for transverse moving
• PLC control, touch screen operating, can set parameters freely
• Circular knife is driven by motor, main shaft speed stepless adjustable by frequency covering
• Circular knife angle is adjustable manually or by servo motor and the knife-feeding is controlled by hydraulic or servo motor
• equipped with circular knife system

5. OUR LOCATION : SHANGHAI , CHINA
