hot asl Lab equipment laboratory pcr for DNA amplification

FOB Price

US$ 800 - 1,999 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Clinical Examination Aids		Brand Name	A
Model Number	Cycler 004		Place of Origin	Guangdong, China

Lab equipment laboratory pcr for DNA amplification

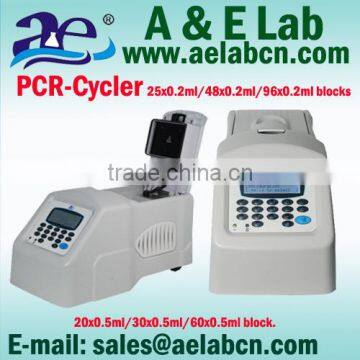

Cycler-004

A & E Lab

A & E Lab Hot Selling includes: UV VIS Spectrophotometer, Visible Spectrophotometer, Flame Photometer,

PCR-Cycler, Blocker Heater, Hotplate, Stirrer, Stirrer Hotplate, Rotory Mixer, Tube Roller Mixer, 3D Rocker,

See-Saw Rocker, Vortex Mixer, Orbital Shaker, Cold Keeper, Melting Point Device, Shaker Incubator, etc.
Welcome to inquire us!

Lab equipment laboratory pcr for DNA amplification

Introduction:

The Cycler 004 thermal cycler is designed to accommodate 48 wells personal cycler, i.e. the half wells of the full

size well plates (96 wells). Different from Cycler 003, when using 48 wells plate, the ramping rate can reach

4.5 ºC/sec.

The adjustable heated lid (100ºC to 115ºC), designed to reduce the risk of sample evaporation, can be enabled

or disabled. The heated lid only comes on if the block is set above

35°C.

The powerful programming method makes users easily understand and straight forward. Several frequent used

methods have been created as templates for users creating even the most complicated protocols with ease. The

on-screen showed ramping rate helps users to monitor the working condition of the machine.

Technical Specifications:

Temperature
Temperature range	4°C to 99°C
Block uniformity	± 0.5°C
Temperature accuracy	± 0.5°C
End of program cooling below ambient	YES
Heating/Cooling Rate
Maximum heating rate	4.5°C/sec
Maximum cooling rate	3°C/sec
Heated Lid
Heated lid temperature	100°C to 115°C
Heated lid enable/disable	YES
Programming
Program naming using alpha keys	YES
Program password protection	YES
Number of programs (3 step)	37
Dimensions
Height	185 mm
Width	185 mm
Length	330 mm
Weight	6.8 Kg
Power
AC INPUT	120V or 230V with Switch

Ordering Information
Model	Product Description
Cyl-004-1	Cycler 004 thermal cycler for 48 x 0.2ml microtubes, 120V / 230V
Cyl-004-2	Cycler 004 thermal cycler for 30 x 0.5ml microtubes, 120V / 230V
Cyl-10	Cycler 004 Block for 48 x 0.2ml microtubes
Cyl-11	Cycler 004 Block for 30 x 0.5ml microtubes
