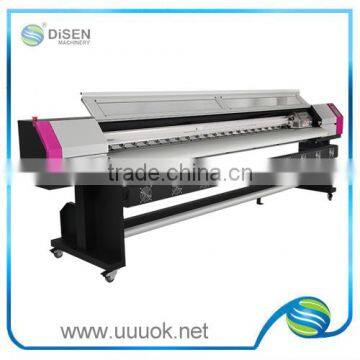

Large Format 3.2M soft film digital indoor and outdoor printing machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Plate Type	Flatbed Printer
Place of Origin	Guangdong, China	Brand Name	Galaxy
Model Number	UD-3212LC	Usage	Label Printer, Paper Printer, Other, Label Printer, Paper Printer, inkjet printer
Automatic Grade	Automatic	Voltage	220V
Gross Power	50Hz	Dimensions(LWH)	L4,700 x W905 x H1,260mm
Weight	304kg	Certification	CE Certification
After-sales Service Provided	Engineers available to service machinery overseas

MODEL	UD-3212LDU
Printhead	DX5
Number of printhead	2 Heads
Maximum Print Width	3,200mm
Maximum Media Width	3,300mm
Print Speed (m2/h)	Print mode	Standard output(m2/h)
	D	3 PASS 22
	S	4 PASS 16
	Q	6 PASS 11
	HQ	8 PASS 8
	BL	12 PASS 11
Ink	Type:	UV Ink
	Color :	4 Color (C,M,Y,K)
	Capacity:	1L per Main Tank of Each Color
	Ink Supply System	Auto Ink Supply System
Media Type	Ceilling film, Vinyl, PS Board, KT Board, PVC Foam Board, Window Flim, Polyester, Flex, Back-lit Film, etc.
Auto Media Feeding System	Equipped (Max. Media Weight 40kg)
Auto Cleaning System	Anti-clogged Flash Function & Capping System
Pre-heating & Drying System	Equipped
Clamp	Equipped
Print Interface	USB 2.0
Printhead Height	2 to 10 mm from Media
RIP Software	Ultraprint, Maintop, Photoprint, Wasatch, Onyx
Input Power	AC 220V, 50Hz/60Hz
Operating Environment	Humidity: 20-80% (Recommend 40-60%)
	Temperature: 15-35°C (Recommend 20-32)
Machine Dimension / N.W	L4,700 x W905 x H1,260mm / 304KG
Package Dimension / G.W	L4,790 x W1,100 x H940mm / 547KG

Detailed Images

Product Effects
