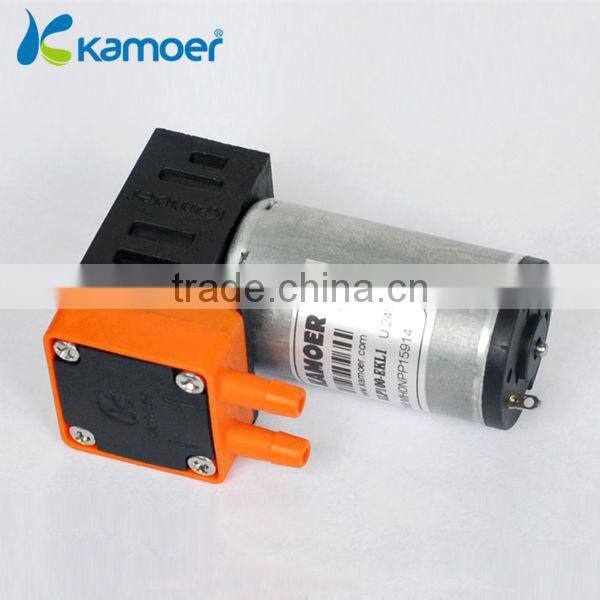

Kamoer Electric Diaphragm 24V DC Mini Water Pump

Specifications

Kamoer Electric Diaphragm 24V DC Mini Water Pump

Introduction——Diaphragm pump

A diaphragm pump is a positive displacement pump that uses a flexible membrane to pump fluids. The pump uses a series of check valves to ensure that fluid can only travel in one direction through the chamber. The diaphragm itself can be expanded and contracted using pressurized air or fluids, or motors.

1. Small and powerful

2. Extreme chemical resistance

3. Brush and brushless direct current motor for selection

4. Dry running, durable and maintenance free

5. Max liquid positive pressure is 6 bar

Advantages——Diaphragm pump

1. have good suction lift characteristics, some are low pressure pumps with low flow rates; others are capable of higher flow rates, dependent on the effective working diameter of the diaphragm and its stroke length. They can handle sludges and slurries with a relatively high amount of grit and solid content.

2. suitable for discharge pressure up to 6 bar.

3. have good dry running characteristics.

4. can be used to make artificial hearts.

5. are used to make air pumps for the filters on small fish tanks.

6. can be up to 97% efficient.

7. have good self-priming capabilities.

8. can handle highly viscous liquids. A viscosity correction chart can be used as a tool to help prevent under-sizing AOD pumps.

9. are available for industrial, chemical and hygienic applications.

10. cause a pulsating flow that may cause water hammer (This can be minimised by using a pulsation dampener).

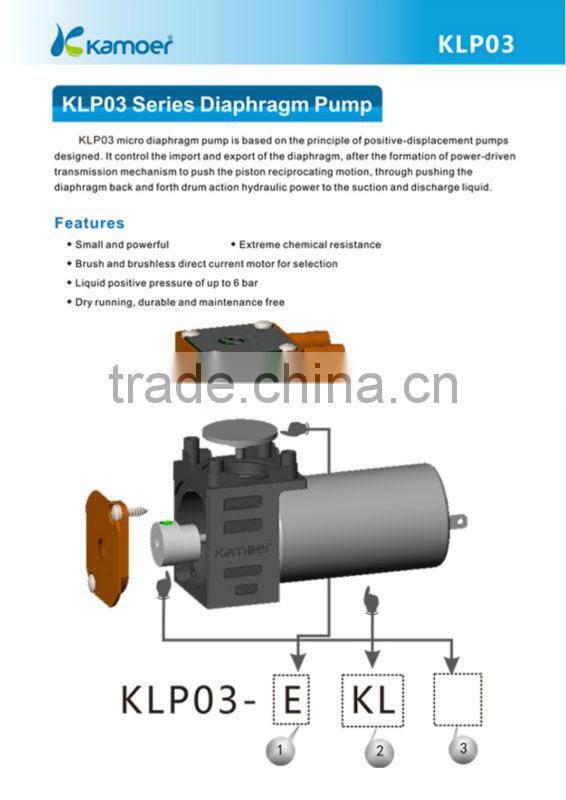

Features——Diaphragm pump

Application——Diaphragm pump

The versatility of KLP pumps allows a wide field of applications to be covered. Over many years, this pumps have proved ourselves in the following areas:

Materials of diaphragm——Diaphragm pump

Performance of diaphragm

Motor——Diaphragm pump

Currently we provide one kind of motor for selection:

KL: 24V DC brush motor (44mm)

Note: Single head for KL motor, brush motor lifetime is 800h.

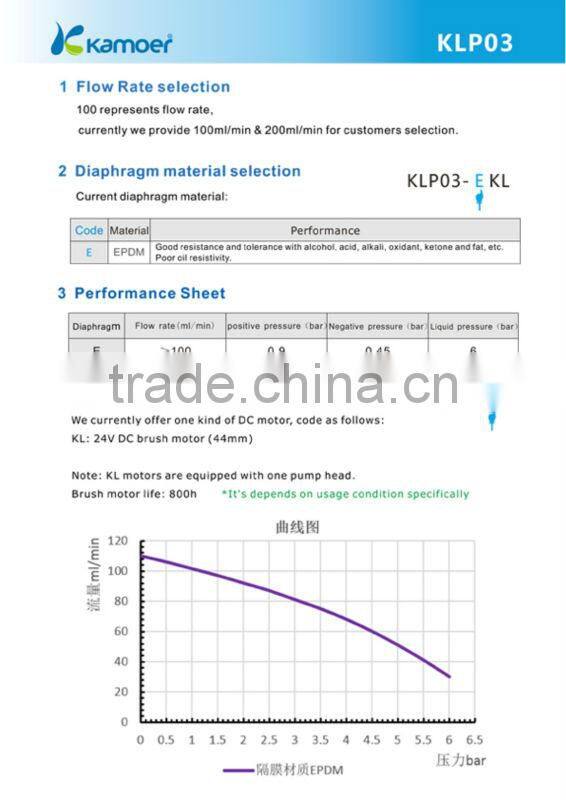

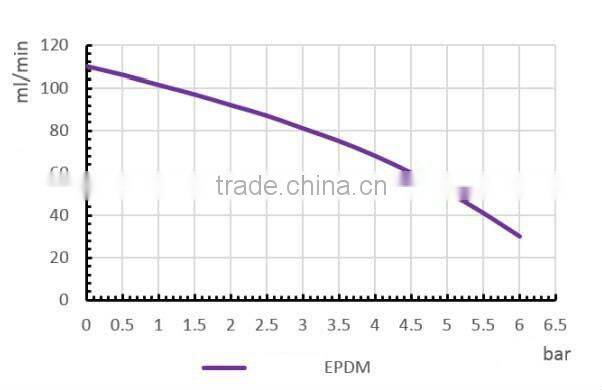

Flow rate chart——Diaphragm pump

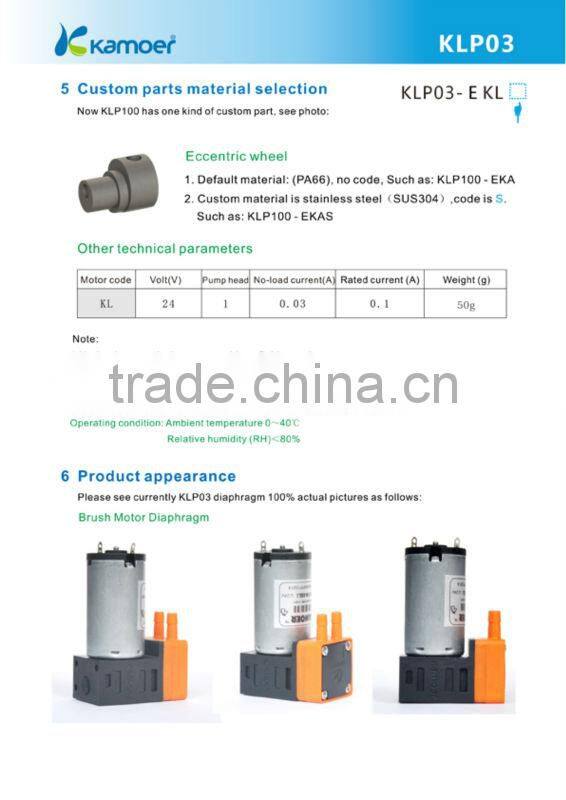

Technical parameters——Diaphragm pump

Workshop & Package pictures

Welcome to visit our company

Any demand or question, please feel free to contact us.

Skype: kamoer-sukie  QQ: 613220882  Mobile: 18301753144

Please send us an e-mail, we will do our best to support you!
