SM600/SW800 Elisa Reader and Elisa Washer

FOB Price

US$ 1 - 3,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Utrao
Model Number	SM600+SW800		Place of Origin	Shanghai, China

SM600/SW800 Elisa reader and washer

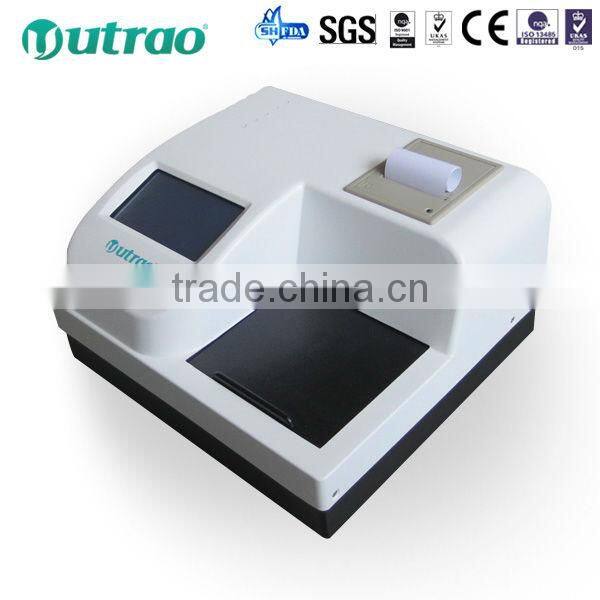

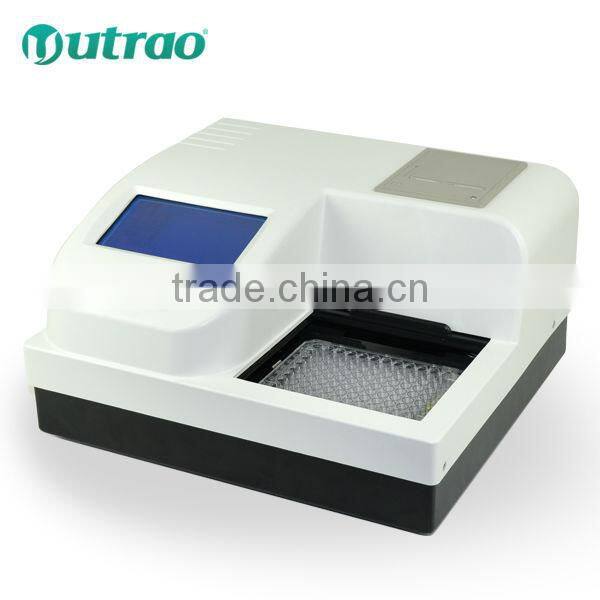

SM600 Technical Parameters

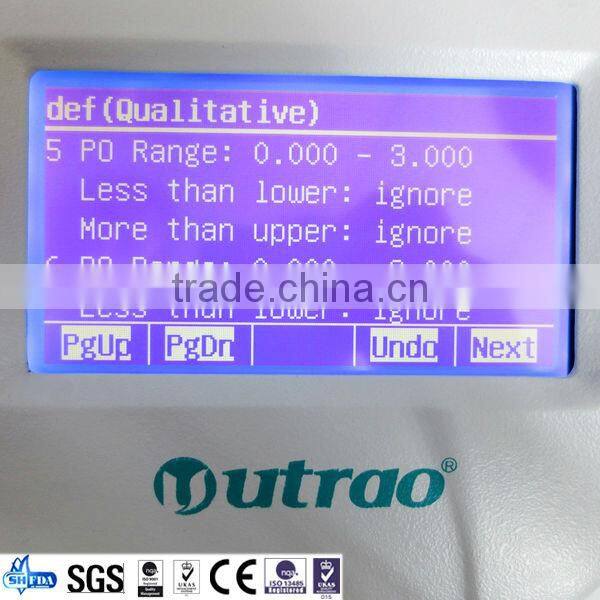

Display	240×128 LCD (Touch screen)

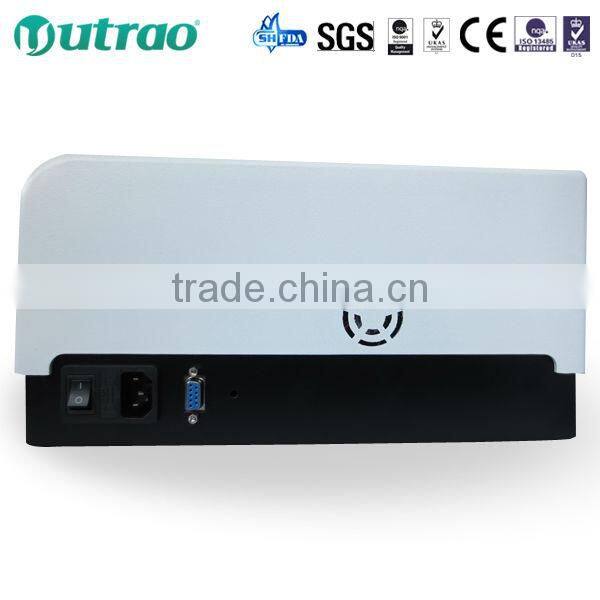

Computer Interface	RS232 9 needle
Applicable Plates	96 wells, “Flat” ,“ U ”,“ V ”bottom
Shake	3 kinds of intensity( Low, Medium, High)
Memory	200 programs, 1000 plates result
Light Source	Tungsten Halogen lamp, lamp saver function, 12V,20W
Wavelength Range	400nm to 750nm
Optical Sensor	8 photodiode
Optional Filters	Interference filter 405,450,492,630nm
Reading Speed	Single wavelength 6 sec, Double wavelength 10 set
Absorbance range	0.000 to 3.500 ABS
Resolution	0.001 ABS
Absorbance stability	±0.003 Abs
Accuracy	ΔA≤±0.01 Abs(0≤A<1.0 Abs); ≤2.5%(1.0 Abs≤A≤2.5 Abs);
Sensitivity	≥0.01
Repeatability difference	≤0.2%(0≤A≤1.5 Abs); ≤1.0%(1.5 Abs <A≤2.5 Abs);
Channel difference	≤0.02 Abs
Linearity	≥0.999
Internal printer	58mm thermal printer
Voltage	AC 220V, 50Hz
Power	90 VA
Size	318286168mm
Weight	6.5Kg
Working temperature	10°C—30°C
Working humidity	≤ 85%
Storage temperature	0°C—55°C
Storage humidity	≤ 95%
Option language	English
PCSoftware	optional accessories

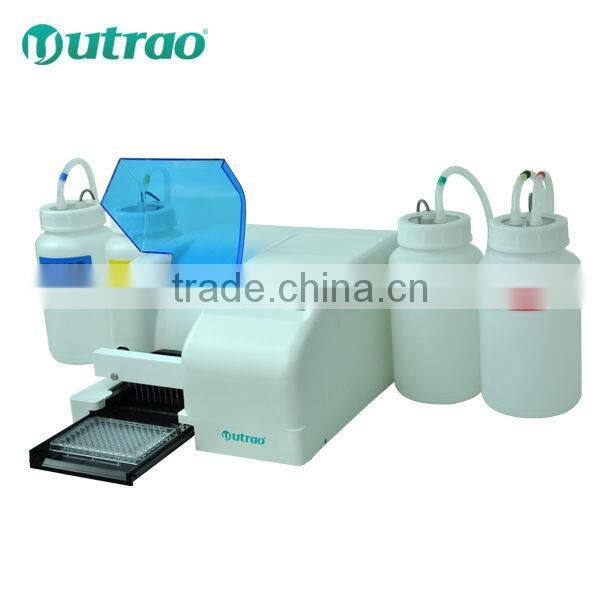

Main Specifications of SW800 washer

Features:

-Large LCD display, microcomputer control, touch screen.

-8-way or 12- way manifolds is available according to your conditions,wash head types: microplate 12 line×8 well and 8 line×12 well are available.

-Washes flat, U and V-bottom strips and plates.

-Metal bottom holder, corrosion protection, stable plate washer.

-Plate shaking and soaking function, time adjustable.

-Liquid level detection and alert function.

-Bottom clean and multipoint liquid absorption function, on average every plate each hole residual volume: <0.8μl /well

-High precision volume dispensing, dispense uniformity: CV < 2%

-Manifold with two needles for aspiration and dispensation, avoid cross-contamination.

-Uniform dispensing, low residual volume.

-User-friendly operation system.

-Standard English or Multi-language software available on request.

Manifold	8 Pins and 12 Pins
Wash mode	Strip Mode and Plate Mode
Strips	1-12 (according to manifold)
Dispense Volume	0-9999uL
Dispense Volume range	50~999μl
Wash times	1-99
Soak time	0-99 minutes 99 seconds
Bottle volume	2L (Distill Water bottle, Detergent A bottle, B bottle, Waste bottle)
Wash method	99 kinds
Plate type setting	10 kinds
Residual Volume	≤0.8ul
Dispense repeatability	≤2%
Imbibition s pump negative pressure	0.5 Bar
Liquid exhaust	Detergent:50ml/plate Prewashing:20ml
Display	240X128 Dot matrix LCD (Touch screen)
Dimension(Instrument)	480x330x140mm
Input power	150VA
Power supply	AC 220V, 50Hz
Working temperature	10°C—30°C
Room relative humidity	Less than 85%
Weight	7.8Kg
Storage conditions	Under the condition of outer packing Storage conditions: 40°C—55°C Storage humidity less
Language	Standard English or Multi-language software available on request.
