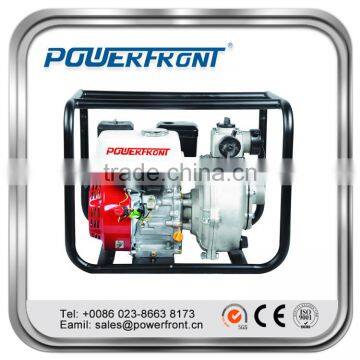

High Quality centrifugal self priming 2 Inch high lift gaosline water pump

FOB Price

US$ 50 - 200 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Pump model	PF50ZB60-4.5Q
Engine model	PF168F-2
Displacement(cc)	196
Bore×stroke(mm)	68×54
Compression ratio	8.5:1
Rated power(kw/rpm)	4.1/3600
Rated speed(r/min)	3600
Oil capacity(L)	0.6
Fuel tank capacity(L)	3.6
Pump type	Centrifugal,self priming
Dia. of suction/discharge port(mm)	50
Max. suction(m)	6
Max. lift(m)	60
Max pumping volume(m³/h)	30
N.W./G.M.(kg)	30.5/32.5
Outline dimensions(mm)	530×420×440

Features

◆Anti-vibration design.

◆Adopting high-quality ceramic mechanical sealing, very critical to water pump.

◆Frame-type strong pump support.

◆The pump body is made of light-weight but strong aluminum alloy.

◆Adopting powerful, reliable durable commercial-grade engine.

Packing & Delivery

The product external packing is carton packing.
