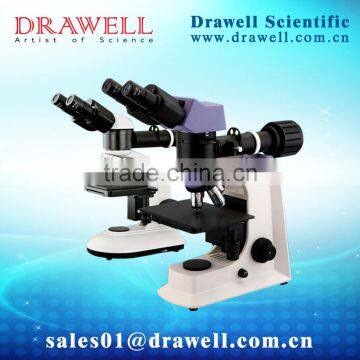

MIT100/200 Metallurgical Microscope

FOB Price

USD $600 - $800 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	DRAWELL		Model Number	MIT100/200
Theory	Metallurgical Microscope		Drawtube	Binocular

MIT100/200 Metallurgical Microscope

L.W.D Metallurgical Objective

200mmX140mm Stage

1. Analyzer

2. Polarizer

3. Five-hole turret filter unit

4. Aperture diaphragm

5. 30W illuminator

MIT100 Metallurgical Microscope Size(mm) MIT200 Metallurgical Microscope Size(mm)

MIT100/200 Metallurgical Microscope Outfits

Items	Specification		MIT100	MIT200
Eyepiece	WF10×-18mm		Y	Y
	Reticule Eyepiece WF 10×-18 mm (0.1mm)		Y	Y
	WF5×		o	o
	WF12.5×		o	o
	WF16×		o	o
Infinity Plan Objective (no cover glass)	5×/0.11	W.D=12.10mm	Y	Y
	10×/0.25	W.D=4.75mm	Y	Y
	20×/ 0.4 (S)	W.D=2.14mm	o	o
	40×/0.65 (S)	W.D=0.45mm	o	o
Long Working Distance Infinity Plan Objective (no cover glass)	20×/0.4 (S)	W.D=8.35mm	o	Y
	40×/0.65 (S)	W.D=3.90mm	Y	o
	50×/0.7(S)	W.D=1.95mm	o	Y
	80×/0.8 (S)	W.D=0.85mm	o	o
Seidentopf Binocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance: 50 -75mm		Y	Y
Seidentopf Trinocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance: 50 -75mm Light Distribution: 80:20		o	o
Nosepiece	Quadplex		Y	Y
Mechanical Stage	Stage Size: 200×140mm, Travel : 76mm×52mm Coaxial Coarse and Fine Focusing Knobs		Y	Y
Reflection Illumination	6V/20W Halogen Lamp		Y
Reflection Illumination	6V/30W Halogen Lamp			Y
Filter	Five-hole filter unit(blue, green, amber, grey, empty)		Y	Y
Polarizing Attachment	Analyzer/ Polarizer			o
C-mount	1×		o	o
	0.47× (Focus Adjustable)			o
	0.5X (Focus Adjustable)		o

Note: "Y"In Table Is Standard outfits, "o" Is Optional Accessories.

MIT100 Packing Size: 565mm×310mm×410mm Gross Weight: 9 kgs Net Weight: 6 kgs

MIT200 Packing Size: 570mm×275mm×450mm Gross Weight: 10.5 kgs Net Weight: 8 kgs
