Home > Products > Engine > 20 HP/ SV840F V-Twin Two Cylinder Small Air Cooled Diesel Engine with 4- stroke
20 HP/ SV840F V-Twin Two Cylinder Small Air Cooled Diesel Engine with 4- stroke
- 2000 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A
You May Like
-
5HP Gasoline Engine Spare Parts- CAMSHAFT Model S20
-
5HP Single Cylinder Gasoline Engine Spare Parts-SPARK PLUG Model S20
-
Gasoline Engine Spare Parts- RECOIL STARTER AY.Model S20
-
5.0HP Gasoline Engine Spare Parts- PISTON PIN Model S20
-
5HP Single Cylinder Gasoline Engine Spare Parts- WIRE BRACKET Model S20
-
5HP Single Cylinder Gasoline Engine Spare Parts- PISTON Model S20
Product Details
| Condition | New | Usage | Automobile | |
| Fuel | Diesel | Stroke | 4 Stroke | |
| Cylinder | Other, Two cylinder | Cold Style | Other, Air-cooled | |
| Start | Electric Start | Place of Origin | Jiangsu, China | |
| Brand Name | EXCALIBUR | Model Number | SV840F | |
| Dimension(L*W*H) | 550*391*459mm | Weight | 59kg | |
| Certification | CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
20HP/ SV840F V-Twin Two Cylinder Small Air Cooled Diesel Engine with 4- stroke
Product Strength:
Easy start
Very low noise
Compact and lightweight
Low fuel consumption
Use for Pumps,Generators,Construction Machinery
Application:
A simple, compact, and lightweight engine for a wide array of applications.Great for agricultural, rental, construction site, and home use.
Specifications:
| Model | SV840F | |
| Type | V-twin,4-stroke,air-cooled | |
| Bore*stroke (mm) | 2-86*72 | |
| Dislacement (L) | 0.836 | |
| Combustion system | direct injection | |
| Rated output KW (HP) / rpm | 11(15) / 3000 | 12(16.5) / 3600 |
| Max output KW (HP) / rpm | 14.7(20) / 3600 | |
| Direction of rotation | Counterclockwise, facing PTOshaft | |
| Fuel | 0# (Summer) / -10# (Winter) | |
| Fuel tank capacity (L) | - | |
| Lubricating oil capacity (L) | 1.7 | |
| Lubricating system | Pressure splashed | |
| Starting system | Electric start | |
| Packing size (L*W*H) mm | 550*391*459 | |
| Net weight (KG) | 59 | |

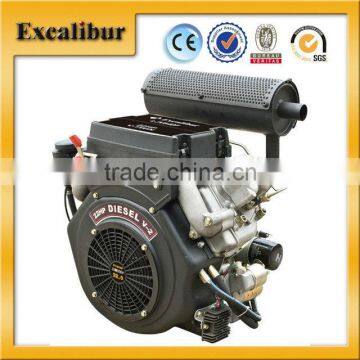

Product Photo
,
ABOUT OUR COMPANY
Jiangyin Sinbest Power Machinery Co.,Ltd.( hereinafter to be referred as ‘Sinbest’) is an expert specializing in manufacturing and sellinggasoline engine, diesel engine, kerosene engine and liquefied gasoline engine assorted with generator set, water pump unit, garden machinery series, agriculture machinery as well as light construction machinery.
THE CANTON FAIR
Special Service:
OEM service Buyer Label Offered offered.
24hrs, 7-days-week on-line technical service
spare parts offered
