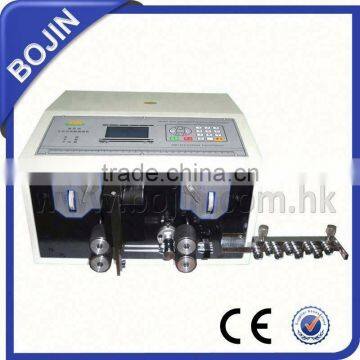

cable wire Stripping machine

FOB Price

USD $880 - $950 / Unit

1 Unit(Min.Order)

Supply Ability 500 Unit / Units per Month
Port Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	BOJIN
Model Number	BJ-02B-8		Usage	Other, Stripping, automatic

Product Description

cable wire Stripping machine

1) Model: BJ-02B
2) Wire Gauge Range:: AWG16 - AWG32
3) Cutting Length: 1mm ~ 9999mm
4) Memory Function: Max. 99 Groups

We manufacture automatic tape & label dispenser, auto label rewinders, wire stripping & cutting machine, label cutting machines, etc. High quality & low price!

Automatic Wire Stripping Machine, Wire Cutting Machine, Wire Cutting & Stripping Machine/four short two-lane model, Shortest length: 20mm

Model:	BJ-02B four short two-lane model
Power:	AC220/ 50HZ
Power:	Rated 200W
Display:	Full English LCD Display
Cutting length:	1mm-9999mm
Stripping length:	End of a thread 0-35, line tail 0-15
Cutting Tolerance:	(0.002xL) mm or less
Cut the middle of stripping:	11
Core cross-section cut-line:	0.1~2.5mm2
Conduit diameter:	Φ6
Appropriate wire stripping:	PVC, Teflon, glass and wire
Blade Material:	Hard tungsten steel
Stripper speed (Article / h):	3000-150000, L=100mm
Drive Mode:	Four-wheel drive

Operation Video
/watch?v=pUXVqTbAzPI

Our Services

We Provide

Best products and factory price.
On-time delivery and the shortest delivery time.
1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
OEM and customized service.
User manuals will go with relative machines.

Service

QC: All products will be checked before delivery.
Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.
Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
Operation Guidance: If you have any problem with operation, please feel free to contact us.

Contact Us

Kunshan Bojin Trading Co., Ltd.: Contact nameSalome Lee
Chat Now; Phone0086-512-57169166; Address11th Floor, Jingzuan Building, No. 875, Xiaolin Road

*Email
Please enter Your valid email address.
*To

Salome Lee
*Message
Your inquiry content must be between 20 to 5000 characters.
Please enter a correct verification code.

Product Categories

New Products	Wire Stripping Machine	Wire Harness Taping Machine	Twist Tie Machine
Terminal Crimping Machine	Tape Cutting Machine	Sealing Machine	Screw Dispenser
PCB Separator	Other products	3D printing machine	Lead-free Soldering Stations
Labeling Machine	Coding Machine	Capping Machine	Automatic Tape Dispenser
Automatic Spring Separator	Automatic Label Rewinder	Automatic Label Dispenser

Model Number	BJ-02B	BJ-02D	BJ-02F	BJ-02MAX
Wire size	0.1~2.5 mm²	0.1- 4.5mm²	0.2 - 8.0 mm²	0.2- 16mm²
Conduit diameter	Φ6	Φ6	Φ10	Φ13
Wire Gauge Range	AWG16 - AWG32	AWG12 - AWG32	AWG8 - AWG32	AWG5-AWG30#
Drive Mode	Four-wheel drive	Four-wheel drive	Four-wheel drive	Four-wheel drive
Weight	35kg	35kg	35kg	35kg
