urd cable stripping machine
- 500 Unit / Units per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | BOJIN, BOJIN | |
| Model Number | BJ-02T-1-38, BJ-02T | Usage | Other, stripping & twisting & cutting, stripping & twisting & cutting |
Product Description

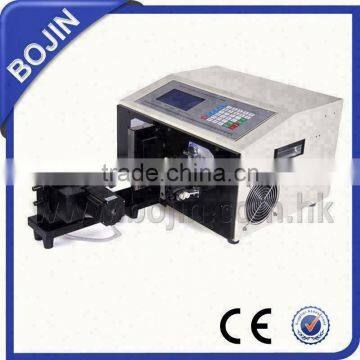

urd cable stripping machine BJ-02T
This machine is also referred as automatic wire stripping cutting & twisting machine, or wire twisting machine.
1) Model: BJ-02T
2) Wire Gauge Range: AWG16 ~ AWG32
3) Memory Function: Max. 99
We manufacture automatic tape dispenser, auto label dispensers, auto label rewinders, label cutting machines, wire stripper, wire stripping machine etc. High quality & low price!
Features:
This machine can strip, cut and twist multi-core wire full automatically!
Twiting two wires at the same time!
Wire stripping machine BJ-02T with double wires, double pipe Specifications as following:
Power Supply | 220V / 50Hz |
Power Rating | 300W |
Display Way | LED Display |
Wire Size | AWG16-32 |
Fitting Wire Section Acreage(Single Pipe) | 0.1mm2-4.5mm2 |
Fitting Wire Section Acreage(Double Pipe) | 0.1mm2-2.5mm2 |
Guide Pipe Diameter(Wire DIA.) | Φ6mm (Double Pipe) |
Twisting length | Head: 0.1-30mm, Tail: 0.1-20mm |
Stripping Length | Head: 0.1-30mm, Tail: 0.1-20mm |
Cutting Length | 0.1-10m |
Cutting Tolerance | ±(0.002×L) (L=Cutting Length) |
Exhausted Line Way | Complete Half Brief Middle |
Processing Capacity | 15000pcs/hour |
Fitting Wire Material | PVC Teflon Glass Wire |
Drive Way | Four Wheel Drive At The Same Time |
Speed Adjustment | 1-9 |
Wire Diameter Adjustment | Automation |
Twisting Way | Both sides or one side |
Max. Middle Stripping Section: | 16 |
Parameter Memory Function | Can save 99 kinds of different wires |
Blade Material | Hard tungsten steel |
Mearsurement | 500*520*360mm |
Net Weight | 42Kg |
Pacakage | Export standard package |
We Provide
- Best products and factory price.
- On-time delivery and the shortest delivery time.
- 1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
- OEM and customized service.
- User manuals will go with relative machines.
Service
- QC: All products will be checked before delivery.
- Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.
- Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
- Operation Guidance: If you have any problem with operation, please feel free to contact us.
Related Wire stripping machines
Model Number | BJ-02B | BJ-02D | BJ-02F | BJ-02MAX |
Wire size | 0.1~2.5 mm2 | 0.1- 4.5mm2 | 0.2 - 8.0 mm2 | 0.2- 16mm2 |
Conduit diameter | Φ6 | Φ6 | Φ10 | Φ13 |
Wire Gauge Range | AWG16 - AWG32 | AWG12 - AWG32 | AWG8 - AWG32 | AWG5-AWG30# |
Drive Mode | Four-wheel drive | Four-wheel drive | Four-wheel drive | Four-wheel drive |
Weight | 35kg | 35kg | 35kg | 35kg |
....
...
