4 Rows China No tillage Seeder for sales

Pneumatic Precision Planter are modern planting machines that can plant the seeds in a row individually with utmost precision.

Thus pneumatic planting machine ensures minimum seed consumption and optimal product yield. İt is possible to plant sunflower, corn, soybean, peanut, watermelon, melon, squash, non-fibrous cotton, beet etc. The distance betwen rows is betwen 27cm and 90cm. Distance above rows is variable. There are 2, 4, 6, 8, 10 rowed options.

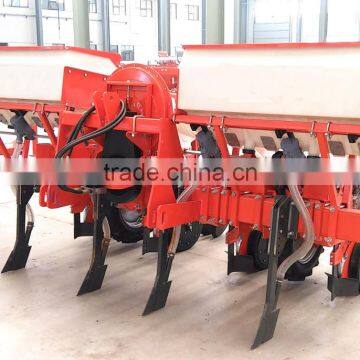

The pneumatic planter is a planting machine of hydraulically suspended type which capable of planting by attaching to a tractor by a three-point suspention mechanism. Therefore, it may be easily transported to the field where planting will take place and has an advantage to leave less unplanted soil at the boundaries of the field as it may easily draw closer to the boundary of the field. The fan system on the pneumatic planter provides the vacuum required for the seeds to hold on to the planting plate holes. The planting units consist of major components such as a ploughing foot with adjustable level which scrapes large lumps of soil and dry soil in the front, the seed tank, seed cell, diffusing unit, seed planting axe, covering hoes with adjustable level which cover the seeds once they have been poured into the row, pressure wheel and a cord which adjusts the level of the pressure wheel.

In machine with fertilizer equipment, the fertilizer tanks may be optionally made of plastic or steel.

Machine Parts

Name: Strong Parallel Linkage Arm

Brand: Bugu

Original: China

This planting unit is desighed for seeding in rough conditions and high working speeds. The parallel linkage arms are made of high quality steel piece. The design prevents from twisting and bending under loads and impacts which can occur in the toughest working conditio.

Machine Parts

Name:  Fertilizering Unit with Discs
Brand: Bugu
Original: China
The disc 375 mm of diameter,4 mm thick guarantees long lasting performance, extened operating life recovering discs edge wearing removing shim washers on hub assembling. The fertilizering unit with discs is more versatile and better suited to low till conditions with trashy soils. With a safery systerm with spring and depth control adjustment.

Machine Parts

Name: Cardan Shaft Drive
Brand: Bugu
Original: China
Forget chains,lubrication and dusty wearing. No fear while working on high residues, stalks can't damage it.

Machine Parts

Name: Press Wheel
Brand: Bugu
Original: China
The adjustable clod pusher moves dry soil and clods away from sowing slot, the fromt mounted independent coulter can cut the soil for a prime furrrow opening on tilled soils conditions.

Machine Parts

Name: Front Disc (Optional)
Brand: Bugu
Original: China
Unit fromt mounted disc coulter cuts into hard soil in reduced till conditions. The wave profile creates extremely fine tilth 7/8 wide slot. Suitable for wet, spongy soils where it can be difficult to close the furrow.

Machine Parts

Name: Gauge Wheel Arms & Gauge Wheels
Brand: Bugu
Original: China
Gauge Wheel Arms：The bracket arms of the gauge wheels are assembled on interchangeable bushes. They are helically fluted for a good grease distribution. Scrapers are standard assembly on the gauge wheels.

Gauge Wheels: Large depth gauge wheels ensure on efficient
And uniform depth control. Resting on the ground directly in line with the seed drop ensures the unmatched depth consistency that makes the reputation of the NG plus.

Machine Parts

One time molding. smooth, with good sanitation and anti UV ability, impact resistance, resistance to strong, not easy ageing, acid and alkali resistance, corrosion, easy to wash, rat proofing, anti termite, mobile installation convenient.

Machine Parts

The seed spacing gearbox for a precise adjustment of the polulation. Changing the seed population is rapid. A single lever releaes the chain. The just place  the required sprockets facing each other and release  the lever to re-tighten the chain.

Machine Parts

Original: China

Our Pneumatic Planter offers seed monitor. From Simple checking seed drop population, distance Between seeds, row space between lines and  Seeding sizes etc.
The system offers the possibility of non-stop modulating directly from the tractor cab.

Machine Parts

The metering box is made from cast aluminum. Year after year metering will always be just as Accurate and this no matter the variations in temperature.

Machine Parts

Discs:The stainless steel discs are very rigid. The agitator, Fixed on to the discs stiffens the unit. The changing of the discs is easily made without tools. A complete Range of discs for all precision.
