Home > Products > Railway Equipment > 2016 New Arrived KKY-500 Hydraulic Rail Drilling Machine
2016 New Arrived KKY-500 Hydraulic Rail Drilling Machine
- Qingdao
- Credit Card
You May Like
-
Easy-operated KWPY-300 Hydraulic Rail Bending Machine
-
KWPY-600 Hydraulic rail bender equipment/ rail bender with high quality and low price
-
KWPY-800 Hydraulic rail bender equipment
-
KWCY-600 hydraulic rail bending machine
-
Good quality KWCY-700 vertical hydraulic rail bending machine/rail bender
-
KWCY-900 vertical hydraulic rail bending machine/rail bender
Product Details
| Type | Other, Rail Drilling Machine | Material | Steel | |
| Dimensions (L x W x H) (mm) | Custumers' Requirements | Place of Origin | Shandong, China | |
| Brand Name | Bafang | Model Number | KKY-500 |
Product Description
2016 New Arrived KKY-500 Hydraulic Rail Drilling Machine
Hydraulic rail hole-extrusion machine (punch machine) is designed by the principle of leverage, hydraulic transmission, and shear. It uses the static pressure to squeeze the hole on the rail and punches one hole in a minute. The machine has reasonable structure, easy to carry, easy operation, good sealing performance of the oil, hydraulic stability, and reduce labor intensity and improve work efficiency, maintenance quality and extend rail service life. It is an essential tool to standardize operations in the railway project.
Main Parameter
Name | Hydraulic rail hole drilling machine | ||
Model | KKY-500 | KKY-800 (KKY-300) | KKY-1050 |
Rail type | 15-24kg/m | 30kg/m | 30-50kg/m |
Maximum punch diameter | 19-22mm | 22-24mm | 31mm |
Maximum punch thickness | 11mm | 12mm | 15.5mm |
Maximum punch force | 50T | 80T | 105T |
Punch speed | 1 hole/min | 1 hole/min | 1 hole/min |
Weight | 58kg | 65kg | 126kg |
Piston rod tensile length | ≤36mm | ≤ 38mm | ≤ 40mm |

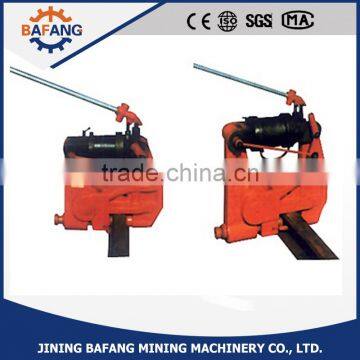

Product Photos
