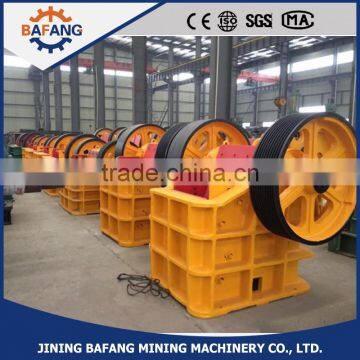

High Quality Jaw Crusher/ Stone Breaker

FOB Price

US$ 4,850 - 29,500 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Jaw Crusher
Application	Mining Quarry Road Building Construction	Motor Type	AC Motor
Power(W)	15kw	Capacity(t/h)	5-20t/h
Place of Origin	Shandong, China	Brand Name	Bafang
Model Number	PE	Dimension(LWH)	896X745X935mm
Weight	1.5t	Certification	ISO
Warranty	1 Year	After-sales Service Provided	Overseas service center available

Product Description

Mining Jaw Crusher

Product Description

1. PE series jaw crusher, whose reduction ratio up to 4-6, can be widely used in breaking hard, medium hard, soft ore and other kinds of ore, like the solvent, slag, building stones, marble, etc.

2. Compression strength does not exceed 320PA.

3. This machine is suitable for mines, building materials, highway, railway, water conservancy and chemical industry, etc.

Mini jaw crusher Feature
1. Heat treated shafts forged of special alloy to handle overloads and hard materials.
2. Heavy duty self aligned spherical roller bearings absorbs and withstand extreme shock, radial and thrust load and offer substantially more bearing life.
3. Much heavier, stronger, massive one piece frame, stress- relived for optimum reliability.
4. Toggle bearing wedges for easy in, easy out bearing replacement.
5. Hardened barrel wear lines (Side plate) protect the pitman (Lever).
6. Replaceable Fix & swing jaw plate made out high chrome & manganese percentage.
7. One piece cast pitman (Lever) stands up to the most demanding crushing applications.
8. Larger stroke, deeper crushing motion, steeper nip angle means higher capacity and greater throughput

Technical Parameter

Model	Feeding opening (mm)	Max Feed size (mm)	Setting adjustment range	Capacity (t/h)	Power (kw)	Weight (t)	Overall Dimension (mm)
PE 150X250	150X250	125	10-40	1-3	5.5	1.5	896X745X935
PE 250X400	250X400	200	20--80	5--20	15	3	1430X1310X1340
PE 400X600	400X600	350	40--100	15-60	30-37	7	1700X1732X1653
PE500X750	500X750	425	50--100	40--110	45--55	12	2035X1921X2000
PE600X900	600X900	480	65--160	90--180	55-75	17	2290X2206X2370
PE 750X1060	750X1060	630	80--140	110--320	90--110	29	2655X2302X3110
PE 900X1200	900X1200	750	95-165	220--450	110--160	52	3200X3050X2950
PE1000X1200	1000X1200	850	195-265	315--550	110--160	57	38000x3166x3045
PE1200X1500	1200X1500	1020	160--320	400--850	180--220	100	4200x3750x3820
PEX150X750	150X750	125	10--40	8--20	15	3	1200X1500X1200
PEX250X750	250X750	210	25--50	15--40	22--30	5	1667X1545X1020
PEX250X1000	250X1000	210	25--60	15--50	30--37	7	1550X1964X1380
PEX250X1200	250X1200	210	25--60	20--60	37--35	8.5	2192X1900X1950
PEX300X1300	300X1300	250	20--90	30--100	55	13	2720X1950X1600
PEX350X750	350X750	300	15--30	16--55	30--37	7	1650X1869X1597
