Product Details
| Place of Origin | Shandong, China | Brand Name | Bafang | |
| Model Number | JZ series | Type | Bucket Teeth | |
| Machine Type | Crusher | Certification | AISI | |
| Material | Stainless Steel | Processing Type | Casting | |
| Use | Coal Mining |
Product Description
The mining JZ series running balance sinking winch wire winder winch
JZ series sinking winch with lifting capacity, high rope capacity, smooth rotation, etc.
It mainly used in coal mining, metal and non-metallic mineral pit shaft engineering in suspension stage, water pump, ram, compressed air cylinder, excavating equipment such as grouting pipe and the tension rope, also can be used for other underground and ground lifting heavy objects.
Technical parameter
Model | JZ-5/400 | JZ-10/600 | JZ-16/800 | JZ25/1000 |
Max tension | 50KN | 100KN | 160KN | 160KN |
Capacity | 400N | 600N | 800N | 1000N |
Speed | 6m/min | 6 m/min | 6 m/min | 6 m/min |
Diameter | 23mm | 31 mm | 40 mm | 40 mm |
Power | 11kw | 22 kw | 30 kw | 37 kw |
Voltage | 380v | 380 v | 380 v | 380 v |
Dimension (mm) | 2375*1970*1340 | 3037*2570*1770 | 3358*3200*2240 | 3508*3200*2240 |
Weight | 380kg | 380 kg | 380 kg | 380 kg |

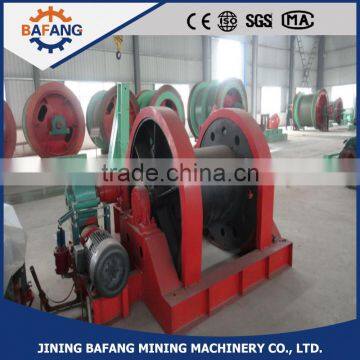

Product pictures
