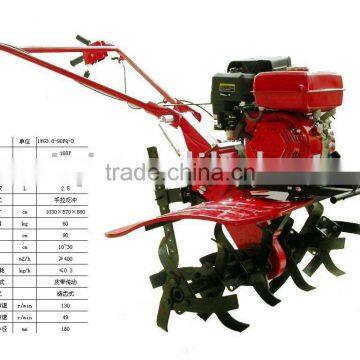

Farm Machinery
You May Like
Product Details
| Place of Origin | Chongqing, China | Brand Name | MeiQi | |
| Model Number | MQ1WG3.8-90 FQ-D |
Product Description
Specifications
Easy to functionEngine
Engine type: SOHV tilt cylinder, 4-stroke, forced air cooling, gasoline engine
Bore*stroke[mm(in)]: 68*54(2.68*2.13)
Dispiacement[ml(cu. In)]: 196(11.96)
Max power[kW(HP)/rpm]: 3.8(5.17)/3600
Fuel: Over 90# gasoline
Fuel tank volume[L(gal. )]: 3.6(0.95)
Fuel consumption rate[g(ml)/kW. H]: ≤395(469)
Lubrication oil volume[L(gal. )]: ≤6.8(1.48)
Air cleaner model: Semi-dry, oil bath, foam filter element
Engine PTO: Camshaft
Starting system: Recoil
Tiller
Gear shifting: -1, 0, 1, and 2
Driving model: Belt, gear driven
Tilling scope: 900mm
Tilling depth: ≥100mm
Working efficiency: ≥400m2/h
Packing
Body size: 1730*820*920mm (tyre size: Φ400mm)
Packaging size: 1190*480*900mm
N. W /G. W: 71/75kg (including tri-blades cutter)
20FT(set): 48.
| Basic Parameter | |
| Equipped engine | 168FB air-cooling gasoline engine |
| Engine power | 3.8KW |
| Ignition mode | transistor ignition |
| Starting mode | hand pulling, kick, automatic |
| Driving mode | belt, gear driving |
| Transmission shifting | 2,0,1 |
| Tilling width (mm) | 900-1000 |
| Tilling depth(mm) | 150-250 |
| Technic Parameter | |
| Tilling efficiencym2h | ≥400 |
| Full set weight (kg) | 60 |
| Overall dimension | 1730*820*920 |
