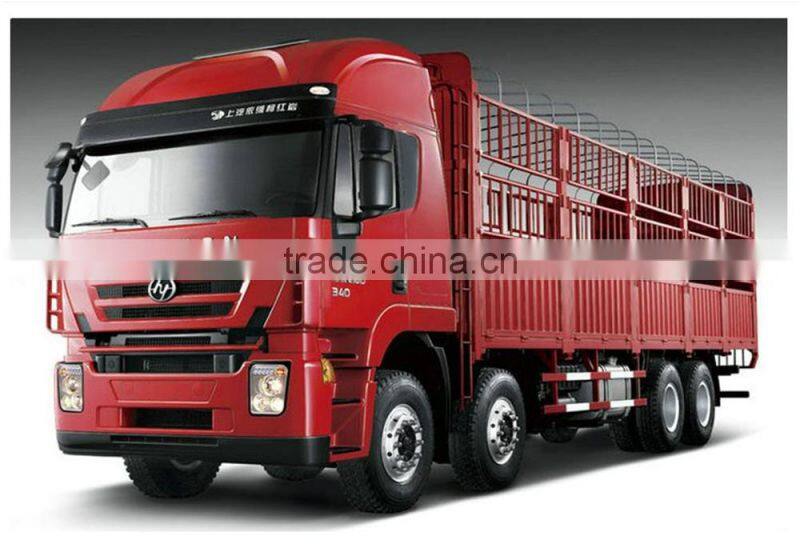

2014 Hot Selling Custom HONGYAN GENLYON 8*4 Transportation Truck
- Any port in China
- T/T
You May Like
-
Easy Start Low Fuel Low Noisy 5Kw Diesel Generator,Diesel Power Generator
-
High Efficiency Low Noise And Vibration Compact 6KW Gasoline Generator
-
10Kw Diesel Generator,Diesel Power Generator
-
Hot Sale High Quality Economical Chinese Gasoline Boat Engine
-
Diesel Harvester Reaper
-
Gasoline Harvester Reaper ,Gasolie Rice Harvester Reaper
Product Details
| Drive Wheel | 8x4 | Capacity (Load) | 31 - 40t | |
| Horsepower | 351 - 450hp | Condition | Other, New & Used | |
| Transmission Type | Automatic | |||
| Fuel Type | Diesel | |||
| Gross Vehicle Weight | 13500 | Place of Origin | Chongqing, China | |
| Brand Name | IVECO | Model Number | CQ5315CCYHTG466 | |
| Dimensions (L x W x H) (mm) | 11990*2500*3838 |
Product Description
Specifications
8*4 stake truck, used to carry animals. Possible to use the canvas to cover the loof and side.Product Name: 2014 Hot selling custom HONGYAN GENLYON 8*4 transportation truck

1.Products specification and details of transportation truck
| HONGYAN GENLYON 8*4 STAKE TRUCK SPECIFICATION | ||||||
| Model | CQ1315HMG466V | CQ1315HTG466V | CQ1315HMG466V | CQ1315HTG466V | CQ1315HTG466 | |
| Driving Type | 8 × 4 | |||||
| Wheelbase mm | 1800+4625+1350 | 1800+4650+1350 | ||||
| GVW kg | 11400 | 13500 | ||||
| Vehicle kerb Mass kg | 9900 | |||||
| Max. Payload kg | 19470 19405 | 17370 17305 | ||||
| Outside dimension mm | L | 11,990 | ||||
| W | 2500 | |||||
| H | 3226 3638 3838 | |||||
| Cargo box dimension | L | 9400 | ||||
| W | 2368 | |||||
| H | 800 | |||||
| Max. Speed km/h | 95 | |||||
| Engine | F2CE3681K*P F2CE3681H*P | F2CE3681G*P | F2CE3681H*P | F2CE3681G*P | F2CE3681G*P F2CE3681E*P | |
| Gearbox | 10-speed | 12-speed | 10-speed | 12-speed | 12-speed | |
| Frame | 305×8 | 305×8+4 | ||||
| Cab | genlyon high roof | |||||
| Steering | hydraulic power steering gear | ZF variable ratio hydraulic power steering gear | hydraulic power steering gear | |||
| Drive Axle | single reduction | single/hub reduction | ||||
| Tire | 295/80R22.5 16PR 315/80R22.5 16PR 11.00-20 18PR 11.00R20 18PR | 315/80R22.5 16PR 11.00-20 18PR 11.00R20 18PR 12.00-20 16PR 12.00R20 16PR 12R22.5 18PR | ||||
| Emission Standard | Euro 4 | |||||
2. Engine Specification and Details of transportation truck
| Engine Specification | |
| Manufacturer & Brand | SFH |
| Code | F2CE0681B*B052 |
| Name | Cursor 9 |
| Intake Type | Compressor, Mid-Cooling |
| External Dimension | L1335mm*W825mm*H1055mm |
| Cylinder | 6 |
| Valve | 4 |
| Displacement (mL) | 8709 |
| Bore Diameter (mm) | 117 |
| Stroke (mm) | 135 |
| Rated Power (kw) | 280 (380 HP) |
| Power VS rpm (r/min) | 2100 |
| Torque (N.m) | 1500 |
| Torque VS rpm (r/min) | 1200 - 1600 |
| Fuel | Diesel |
| Fuel Consumption (g/KW.h) | 196 |
| Net Weight (kg) | 865 |
| Fuel Supply | Common Rail |
| Emission | Euro 4 |
Our Advantages:
1. We start to manufacture the heavy truck since 1965, and the joint venture with IVECO (FIAT Group) has inherited the advanced technology from Italy.
2 A combination of decades manufacture experiences and the top heavy duty vehicle technique platform – STRALIS, reaches perfect level of fashion and quality, focusing on humanization design and adventured techniques.
3 Synchronizing European style and European testing standard, forges a global quality.
4 Comfortable, reliable, energy conserving and environmental protection
5 With a peremptory but not displaying style, the double V European style front face initiates a brand new image of heavy duty vehicle.
6 The most advanced painting art efficiently resists the corrosion, upgrades the vehicle, and enhances the tactile sensation.
