Home > Products > Air Compressor & Spare Parts > Piston Air compressor W-3.2/7 Electric

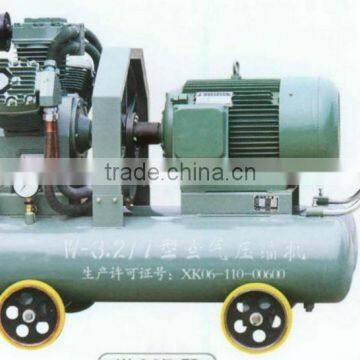

Piston Air compressor W-3.2/7 Electric
- ningbo
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Configuration | Portable | |
| Power Source | AC Power | Lubrication Style | Oil-less | |
| Mute | Other, Less noise | Place of Origin | Fujian, China | |
| Brand Name | GM | Model Number | W-3.2/7 | |
| Voltage | 240V | Certification | CE | |
| Warranty | one year | After-sales Service Provided | Overseas third-party support available | |
| Type | Piston |
Product Description
Piston Air compressor W-3.2/7 Electric
The piston air compressor made of special steel form sweden and after special treatment,high efficient and reliable.
special design for piston ring,Integral casting,excellent flexiblity,lowest lubricating oil consumption.
Cylinder made of boron cast iron,wear resistant,special suitable for dusty condition.
Crankshaft made from ductile cast iron,rare magnesium alloy after heat treatment and surface quenching,excellent performance.
simple structure,light weight,easy to move,easy operating and maintenance.energy saving low cost.
Specification:
Model | W-1.5/4 Diesel | W-1.5/4 Electric | W-1.8/5 Diesel | W-1.8/5 Electric | W-2.8/5 Diesel | W-2.8/5 Electric |
Cylinder | 3×90mm | 3×90mm | 3×100mm | 3×100mm | 3×115mm | 3×115mm |
Rotary speed | 1180rpm | 1180rpm | 1000rpm | 1000rpm | 1070rpm | 1070rpm |
Exhaust Volune | 1.5m3/min | 1.5m3/min | 1.8m3/min | 1.8m3/min | 2.85m3/min | 2.85m3/min |
Exhaust pressure | 0.4Mpa | 0.4Mpa | 0.5Mpa | 0.5Mpa | 0.5Mpa | 0.5Mpa |
Storage tank | 40L | 40L | 130L | 130L | 160L | 160L |
Engine | S195(12HP) | Y160M(11kw) | S1100(15HP) | Y160M1-2(11kw) | S1110(18HP) | Y160M2-2(15kw) |
Net weight | 305kg | 305kg | 325kg | 325kg | 465kg | 465kg |
Gross weight | 340kg | 340kg | 365kg | 365kg | 515kg | 515kg |
Size(L×W×H) | 1500×620×1020mm | 1500×620×1020mm | 1540×640×1030mm | 1540×640×1030mm | 1710×860×1215mm | 1710×860×1215mm |
W-3.0/5 Diesel | W-3.0/5 Electric | 2V-3.5/5 Diesel | 2V-3.5/5 Electric | W-3.2/7 Diesel | W-3.2/7 Electric |
3×120mm | 3×120mm | 4×115mm | 4×115mm | 3×125mm | 3×125mm |
1070rpm | 1070rpm | 970rpm | 970rpm | 1100rpm | 1100rpm |
3m3/min | 3m3/min | 3.5m3/min | 3.5m3/min | 3.2m3/min | 3.2m3/min |
0.5Mpa | 0.5Mpa | 0.5Mpa | 0.5Mpa | 0.7Mpa | 0.7Mpa |
200L | 200L | 250L | 250L | 230L | 230L |
S1115(22HP) | Y160M2-2(15kw) | ZS1125(25HP) | Y200L1-6(18kw) | $1125,25HP | 18.5KW |
530kg | 530kg | 650kg | 650kg | 550kg | 550kg |
590kg | 590kg | 720kg | 720kg | 600kg | 600kg |
1710×860×1245mm | 1710×860×1245mm | 1995×950×1200mm | 1995×950×1200mm | 196×90×125mm | 196×90×125mm |
