10hp diesel garden rotary tiller

FOB Price

USD $300 - $800 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Garden Cultivator
Power Type	Diesel	Power(W)	9HP
Certification	ISO9001/CE	Warranty	one year
Use	tilling/cultivating/plowing	Brand Name	JIASHENG
Model Number	1WG6.3-135FC-Z	Weight	135KG
Dimension(LWH)	17001330800mm	After-sales Service Provided	Engineers available to service machinery overseas

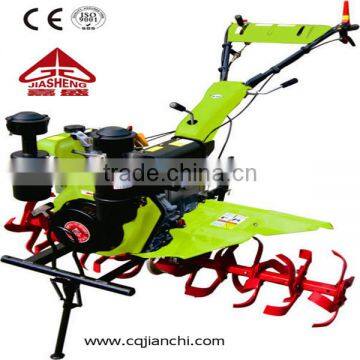

10 hp diesel power garden rotary tiller

Specifications

Diesel 10 hp diesel power garden rotary tiller

a.engine available,8.6hp 186FA diesel power engine
b.easy start & operation
c.energy saving&environment-friendly;

d.customized design offered;

e.any color can be made.

Model		1WG6.3-135FC-Z
Tiller	Tilling Width(mm)	1350
	Tilling Depth(mm)	≥100
	Drive-way Transmission	Full Gear
	Gearshift	Fast-Slow-N-R
	Clutch Type	Friction,with emergency stop
	Tire	5.00-12
	Productivity(hm²/h)	≥0.04
	N.G /W.G(KG)	135/140
	Dimension(mm)	1700x1330x800
Engine	Model	DIWEI 186F Diesel Engine
	Engine Type	single-cylinder, vertical, four-stroke, Direct injection, air-cooled
	Bore*Stroke(mm)	86*70
	Displacement(ml)	406
	Rated Power(kW/rpm)	6.3/3600
	Max. Power(kW/rpm)	6.6/3600
	Fuel Tank Capacity(L)	5.5
	Fuel Consumption(g/kW.h)	≤420g/kw.h
	Fuel Type	0# in summer,-10# or-20# in winter
	Oil Capacity(L)	1.65
	Lube type	SAE10W30 (above CC grade)
	Start System	Electric start with 30AH MF Battery, recoil and hand-operated
Others	Included Parts	with dry land blade(8x4 blades)
	Packing	Cast-iron Bracket +Caron Box
	20” GP(Set)	66 Units
	40” HQ(Set)	144 Units
	MOQ	20 Sets
