Permanent Magnet With High Quality Small 3KW Water Turbine, 0.3kw to 50kw Water Turbine

Small Permanent Magnet  Water Turbine

1).0.3kw to 50kw
2).water head :5m to 40m
3).Flow Rate(m3/s):0.007-0.3
4).Speed(r/min):500 to 1500

5).design and produce according to the power, speed, frequency that you need.

1. Specification of  Water Turbine

1.Good Quality Of Small Hydro Power Generator / Water Turbine Generator Unit with range

0.3kw-50kw;

2.Offer all types of generators, turbines, hydropower equipment, complete set of hydropower and other power plants, etc.

3.Equipments would be produced according to your request.

4.Engineers for erection and commission at hydropower plant are available.

5.There should be some key parameters (such as head, flow discharge and capacity, if need turbine generator too,

please supply the frequency and output voltage, if not, give us the rotation speed) in inquiry.

Note: We can design and manufacture various types of hydro generator units with 0.42-7m in turbine

runner diameter and 0.3KW-50KW in unit capacity.

2. Technical Parameters of Micro  Water Turbine

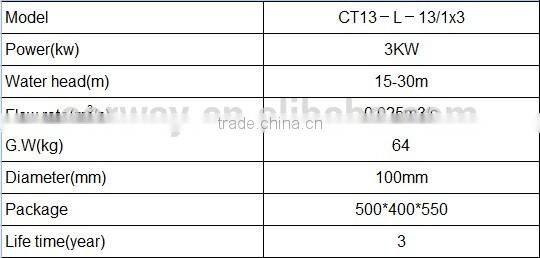

2.1 Parameters

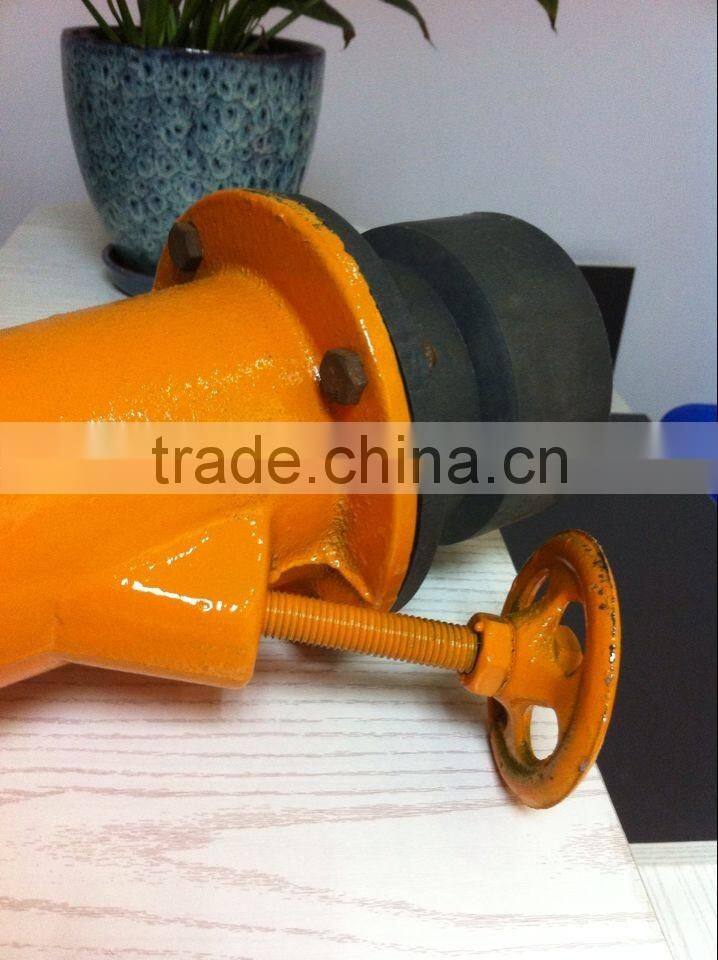

2.2 Detail Picture

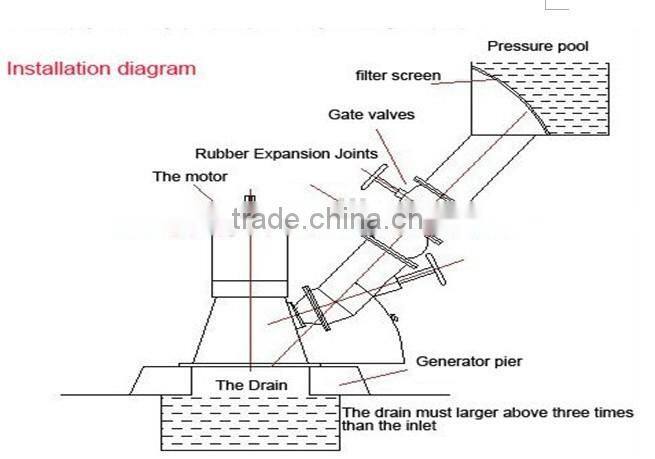

2.3 Installation Drawing

3. Packing Of Micro  Water Turbine

3.1 Standard exporting package

3.2 According to your requirements

4. About us

Chongqing Royway Machinery Co.,Ltd.

We are mainly responsible for handing the export affairs of our group company.

We are manufacturer, we have our own factories and export right.

5. Delivery

6. Service

1.Any question or problem will be answered within 24 hours.

2.One year guarantee:All the spare parts broken in one year,we will provide free parts for .

3. Lifetime service:Any problem happened to our products, we will do our best to help customers solve it. Spare parts will be half price in lifetime.

4.Problem solving: If you can't solve the problem in your local, please deliver the machine to us, we will repair it.

Welcome to contact us or to our factory !
