Most Popular KUNCHI Mortar Sprayer With Best Quality
- Any ports of China
- T/T Credit Card
You May Like
-
Commercial Electric Airless Sprayer for Paint Coating Project
-
Best Selling Automatic Wall Plaster Machine/wall Plastering Machine With Best Price
-
Professional Mortar Sprayer for Sale at Factory Price
-
Most Popular Automatic Wall Plaster Machine/wall Plastering Machine With Factory Price
-
Most Popular Mortar Spraying Machine/mortar Sprayer With Best Quality
-
Low Price High Quality Automatic Wall Render Machine for Sale
Product Details
| Condition | New | Application | mortar sprayer | |
| Place of Origin | Henan, China | Brand Name | KUNCHI | |
| Model Number | GLP-2A | Dimension(L*W*H) | 1460x600x1100MM | |
| Weight | 175KG | Certification | ISO | |
| Warranty | 1 YEAR | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
mortar sprayer1.best quality and low cost
2.easy operation and simple compact
3.good after-sales service
Mortar sprayer
Application of mortar sprayer:
It is suitable for pumping and spraying the wet ready-mixed mortar witch is pumpable, such as Cement mortars, Lime plasters, Gypsum plasters, Masonry mortars, Insulating plasters, Self-leveling floor screeds, etc.
Main features of mortar sprayer:
1. High working pressure, stable flow, can deliver mortar with higher sand content.
2. It adopts screw delivery, the flow is uniformity.
3. It adopts mechanical transmission, the structure is simple and compact, the wearing parts are cheap and easy to be replaced.
4. The rotator and stator has passed strick testification, the performance is reliable and has a long working life.
5. It is small in size, convenient to move, especially suitable to working in narrow space.
Main specifications of mortar sprayer:
Model | GLP-2A | GLP-2B | GLP-3A | GLP-3B |
Capacity | 2 m3/h | 2-4 m3/h | 3 m3/h | 3-6 m3/h |
Working pressure | 3 MPa | 3 MPa | 3 MPa | 3 MPa |
Horizontal delivery distance | 50 m | 50 m | 50 m | 50 mm |
Vertical delivery distance | 30 m | 30 m | 20m | 20m |
Main power | 4 kw/380 v | 4 kw/380 v | 7.5kw/380v | 7.5kw/380v |
Screw rotating speed | 380 rpm | 200-600rpm | 160 rpm | 200-600 rpm |
Inner diameter of air pipe | 13 mm | 13 mm | 13 mm | 13 mm |
Max diameter of material | 4 mm | 4 mm | 4 mm | 4 mm |
Diameter of delivery pipe | 25/32 mm | 25/32 mm | 25/32 mm | 25/32mm |
Air compressor | 400 L/min,8 bar, 3kw | |||
Volume of hopper | 30 L | 30 L | 50 L | 50 L |
Filling height | 800 mm | 800 mm | 800mm | 800 mm |
Dimension (mm) | 1460x600x1100 | 1465x700x1150 | 1735x500x1250 | 1835x600x1150 |
Weight | 175 kg | 220kg | 320kg | 380kg |
NOTE: The difference between A and B: type A adopts fixed rotating speed, type B adopts adjustable rotating speed,
comparatively speaking, type B has a longer working life with the rotator and stator.

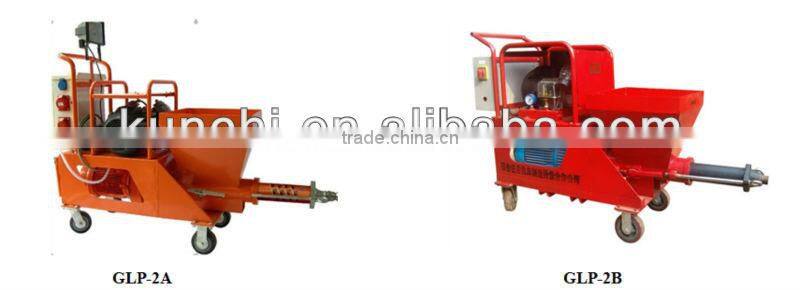

Photo show mortar sprayer :

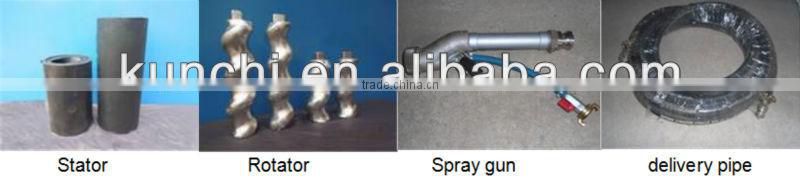

Wearing parts mortar sprayer :

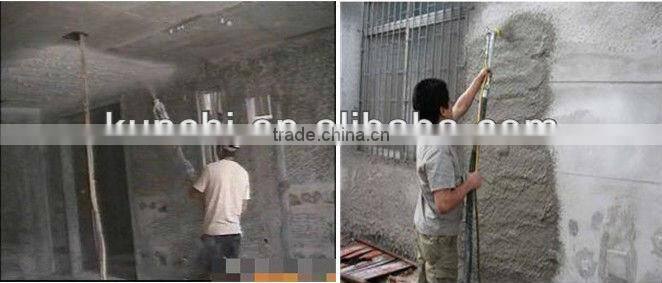

Working places mortar sprayer :
Working performance mortar sprayer :
