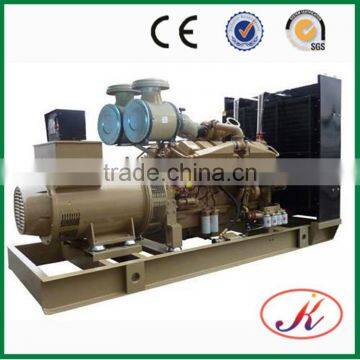

cheap sell diesel generator set

Diesel Generator Model

HN-50GF

Engine Specifications

Engine Brand

RICARDO

modle

N4105ZD

Rated Power

56kw

Rated Current

90 A

Cylinders

4

Bore (mm)

105

Stroke (mm)

125

Rated Speed (rpm)

1500

Start Method

24V DC starter

Speed Governing

Mechanical  governor

Cooling Method

closed water cooling

 Diesel Consumption

210g/kw.h

Rated Power

50 KW

Rated Frequency (HZ)

50

Rated Voltage (V)

240V

Power  Factor

0.8 (Lag)

Connection Type

3P4W

Excitation Method

Brushless

Voltage regulation

AVR

Protection

IP23

Class

H

Dimension(L*W*H)(mm)

1900*750*1280

NET.WEIGHT(kg)

900

Warranty

one years or 1500 running hours.

Standard configuration

1. Diesel engine

2. Alternator

3. Steel common base

4. Standard control panel

5. Radiator 40°C max,fans are driven by belt, with  safety guard

6. Anti Vibration Suspension Absorber

7. Dry type air filter, fuel filter, oil filter

8. Mould case circuit breaker

9. 12/24V DC start motor, batteries rack and cable

10. 12/24V charge alternator

11. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler

12. Random documents,standard sapre parts,standard tool kits

 Optional configuration

1. Engine protection module (low battery voltage, high water/oil temperature, over speed,low fuel level etc)
2. Parallel equipment
3. Daily fuel tank
4. Electric governor
5. Automatic control system (Harsen,Smargen,Deepsea)
6. Automatic transfer switch(ATS)
7. Remote-control equipment
8. Silent/soundproof canopy, Weather canopy
9. Container type, Movable trailer
10. Water/oil heater
11. Storage batter
