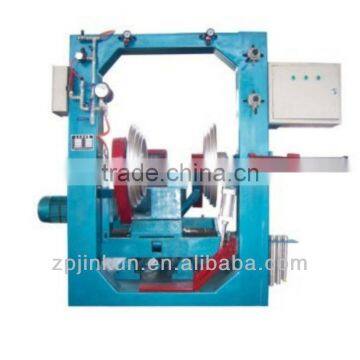

Tire retreading machine/recapping machine/curing chamber

Specifications

Cold tire retreading machine

 Retreading various sizes tire, from 9.00R20 to 40.00R57, car/truck/OTR tires
Special and advanced design for tire retreading
Competent After-sales Service
3.easy/safe handing&operation

1.Inspection: Choice the better tyre .The surface of the tyre must be intact ,both the sides should not have oversize mangler.

2.Drying Clean the tyre ,then dry it .

3.Buffing After drying,the tyre's old tread is mechanically removed on high speed buffers.

Then people make second polishing and section repairs.

4.Building-tread rubber The buffed tyre needs a thin layer of cushion gum to be wrapped around its crown area.

The pre-cured tread rubber is then applied with the Tire Surface Press Fit Machine

5.Enveloping The built tyres are then mounted with envelops and rims to prepare them for curing.

6.Fixing steel ring After enveloping the tire,fix them on the felly on the working platform.

And they are ready for being made vacuum and vulcanization.

7.Curing by pre-cure pots.The tyre is then placed in a pre-cure pot and pre-cured tread becomes adhered to the tyre through a vucanizing process.

8.Final inspection The retreaded tyre is subjected to a final inspection.This inspection insure that only tyres that meet industry qulity standards are allowed to leave the retread plant.

Tyre models can be retreated

650-16,750-16,825-16,750-20,825-20,900-20,1000-20,1100-20,1200-20,11R22.5,12R22.5,13R22.5

Tyre retreading facility series include:

1.Pneumatic tyre profile grinding machines

2.Rubber powder collecting tank

3. Multi-functional tyre repair machine

4. Pulp stirring machine

5. Plastic extrusion machine

6. Tread pressed machine

7. Wheel disassemble and installation machine

8. Packaging sets changer

9. Multi-function tyre tracks

10. Multi-function tyre pre-vulcanizing tank
