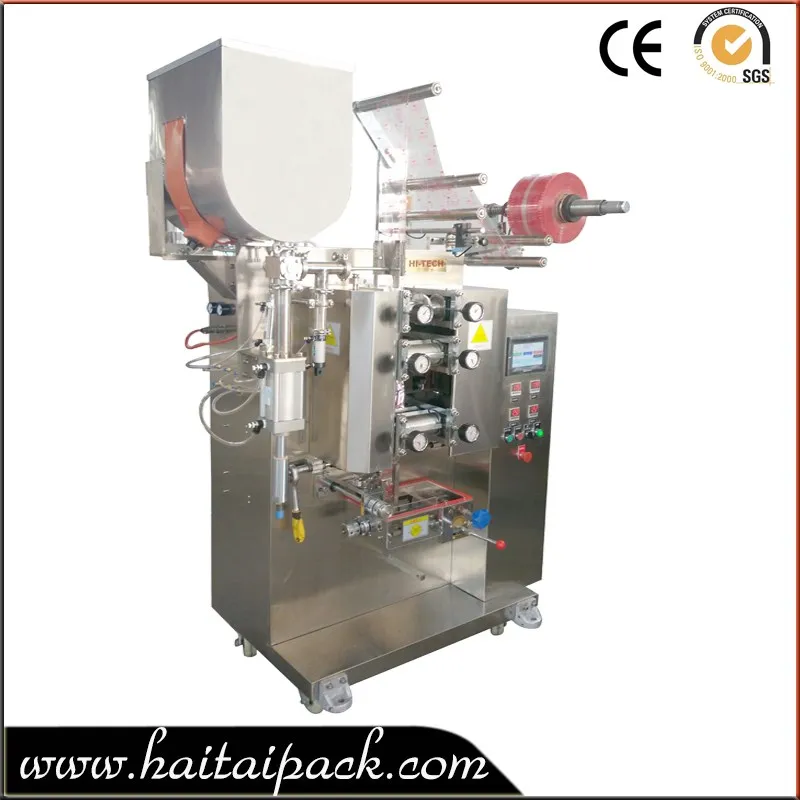

Horizontal Automatic High Speed sauce bag packing machine

Product Application

Horizontal Automatic High Speed sauce bag packing machine widely suitable for automatically packaging of sauce products in food, medicine, chemical industry, such as pesticide shampoo, and body foam bath lotion, facial cream, ingredient oil, fruit sauce, tomato ketchup and honey etc. The machine adopts piston pump measuring system, material filling range is adjustable, precision measurement. Intelligent temperature controller, equipped with reliable photo electricity detecting system. All the work of bag making, measuring, filling, sealing, cutting, counting, heat-printing codes can be done automatically. The spare parts contacting objects and the surface of the machine adopt stainless steel, which are easily washable.

Main Features

1. Horizontal Automatic High Speed sauce bag packing machine decoratied in stainless steel in accordance with GMP regulations.
2. Computer controller .with advanced PLC is a patented product first made in China.The switch power appler is imported. All functions with digital display are performed with buttons.
3. The length is set by the computer needless of the exchange of gear or the adjustment of the bag length.
4. Output automatic report function,and speed automatic display function.
5. With optional ink wheel printing 1to 3lines of production number and shelflife.

Machine Parts

Name: PLC

Brand: DELTA

Original: China

▲ Program Capacity: 16K steps data register: 10 k words.
▲ Processing speed of PLC is higher than same level products, LD: 0.54μs, MOV: 3.4μs.
▲ In view of the large process capacity, provide efficient processing capacity, 1K steps can be finished within 1 ms.
▲ Provide up to 100 KHZ pulse control, can match various motion control instructions (such as shelter, to standard and immediately change frequency, etc.) applied to various kinds of multi-axis motion control accurately.
▲ Up to 4 layer PLC password protection, to protect the intellectual property rights of the user

Main Features

Name: Frequency Coverter
Brand: Panasonic
Original: Japan
▲ Using vector to control output high torque at low speed
▲ Using A large operation panel, improve the operability
▲ Operation panel is removable type
▲ Standard serial interface RS485
▲ Built-in output short circuit protection circuit
▲ Equipped with high speed current limiting function
▲ High construction and maintenance

Machine Parts

Name: Touch Screen
Brand: WeinView
Original: China Taiwan
▲ 7" 800 x480 TFT LCD Screen
▲ No fan cooling system
▲ Built-in storage memory and calendar
▲ Protection grade IP65 panel
▲ LED backlight
▲ Com2 RS485 support MPI 187.5 K

Main Features

Name: Temperature Controller
Brand: Omron
Original: Japan
▲ Visibility is good (character height: 21.7 mm).
▲ Deep from the front panel: only 60 mm.
▲ Fewer parameters, simple setting.
▲ Sampling time reduced to 250 ms.
